Home >> Ford >> 2003 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> Heated Seat Module, Passenger Side Front

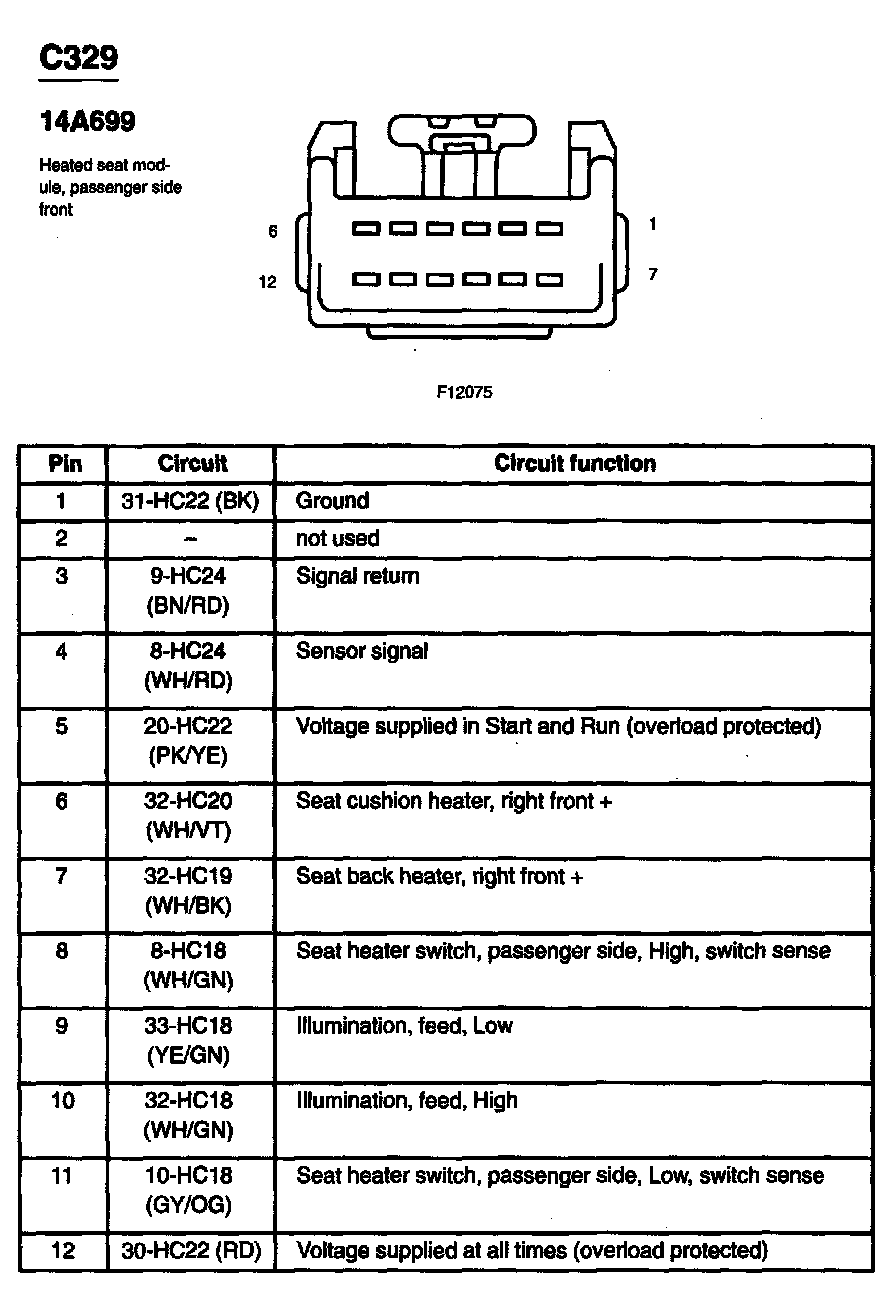

Heated Seat Module, Passenger Side Front
