Thunderbird V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>

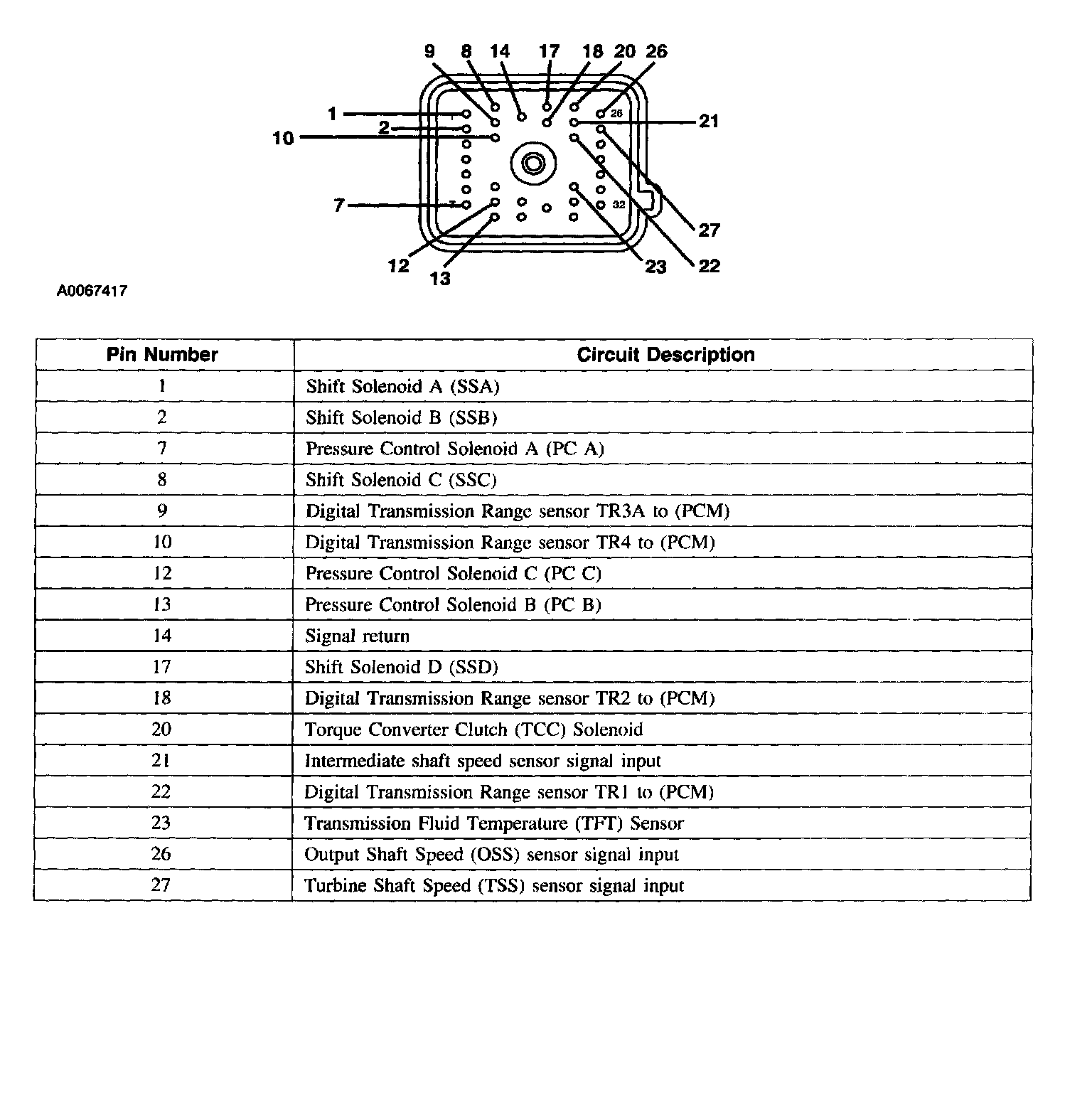

Powertrain Control Module (PCM) C175B
Powertrain Control Module (PCM) C175B
Powertrain Control Module (PCM) C175b
