Test C

PINPOINT TEST C: THE DEFROST SYSTEM IS INOPERATIVE

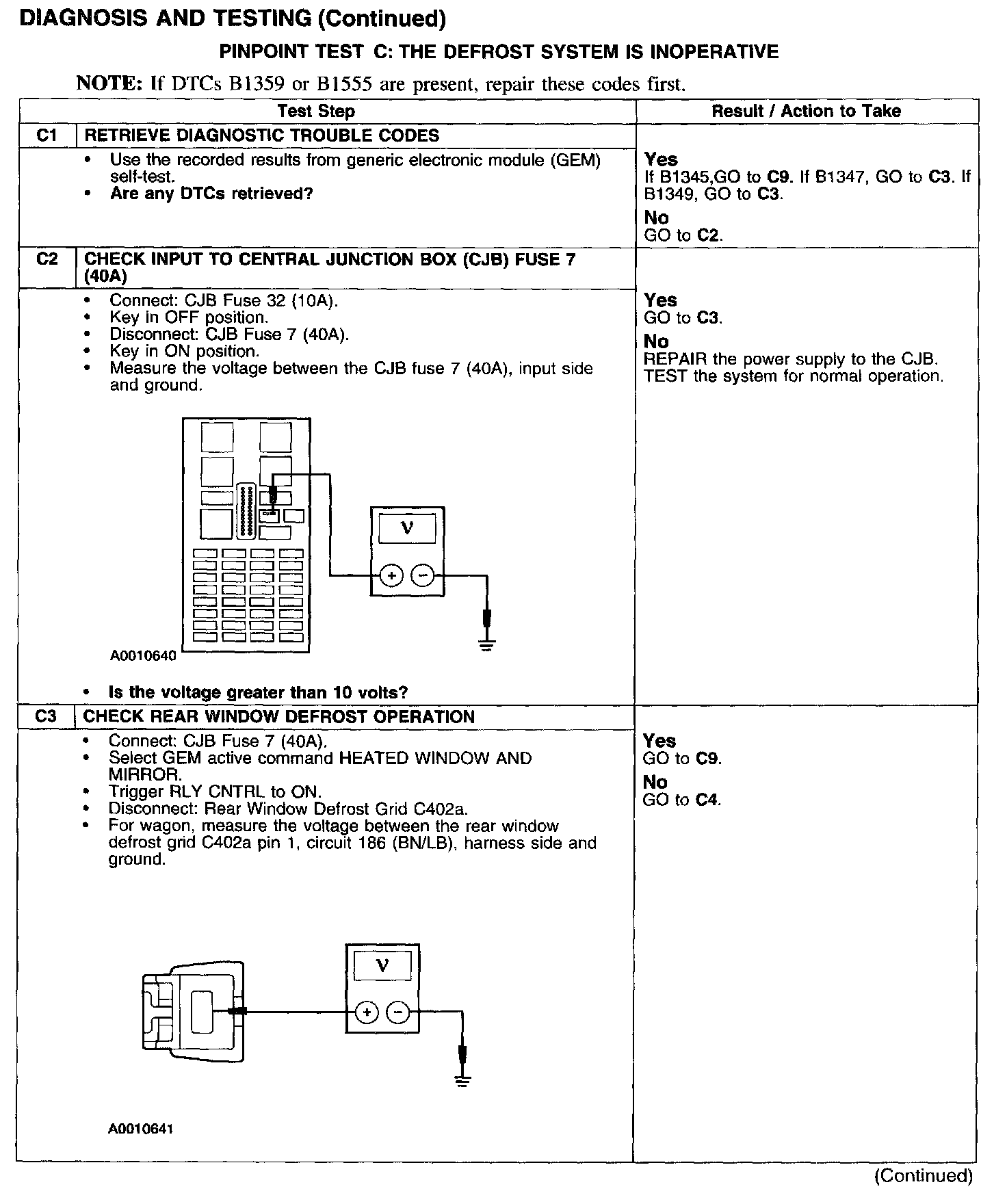

Test C1-C3:

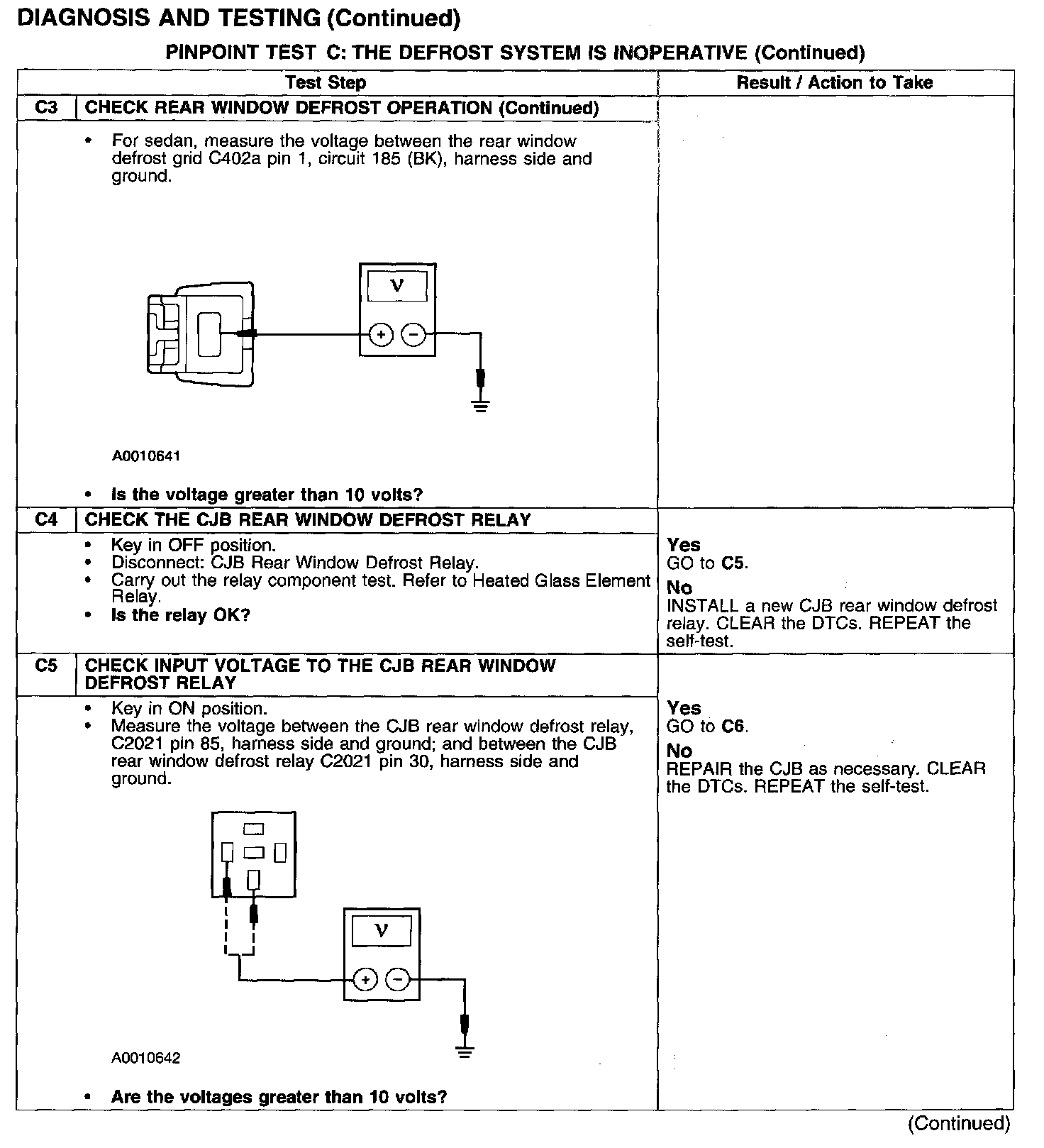

Test C3-C5:

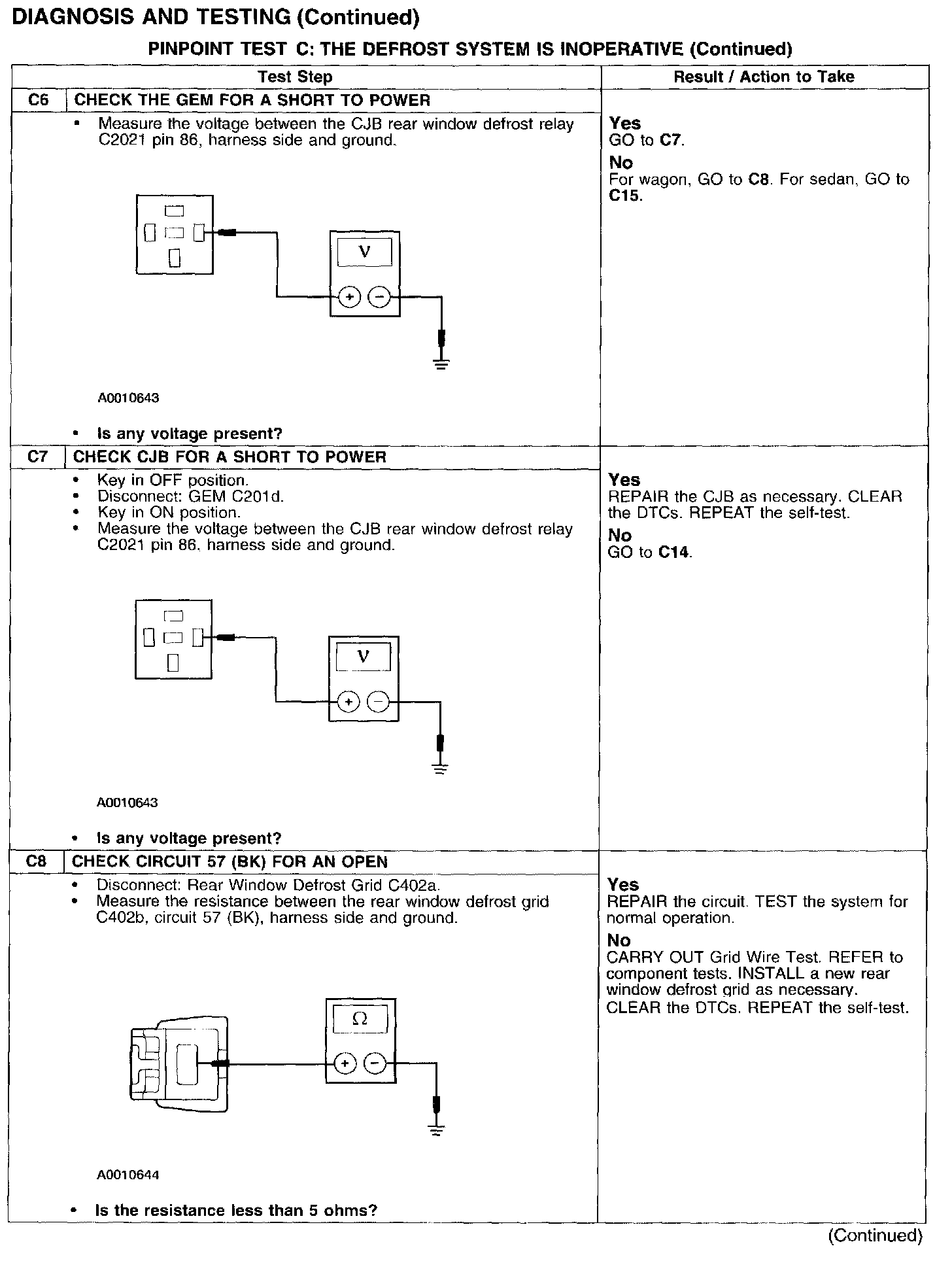

Test C6-C8:

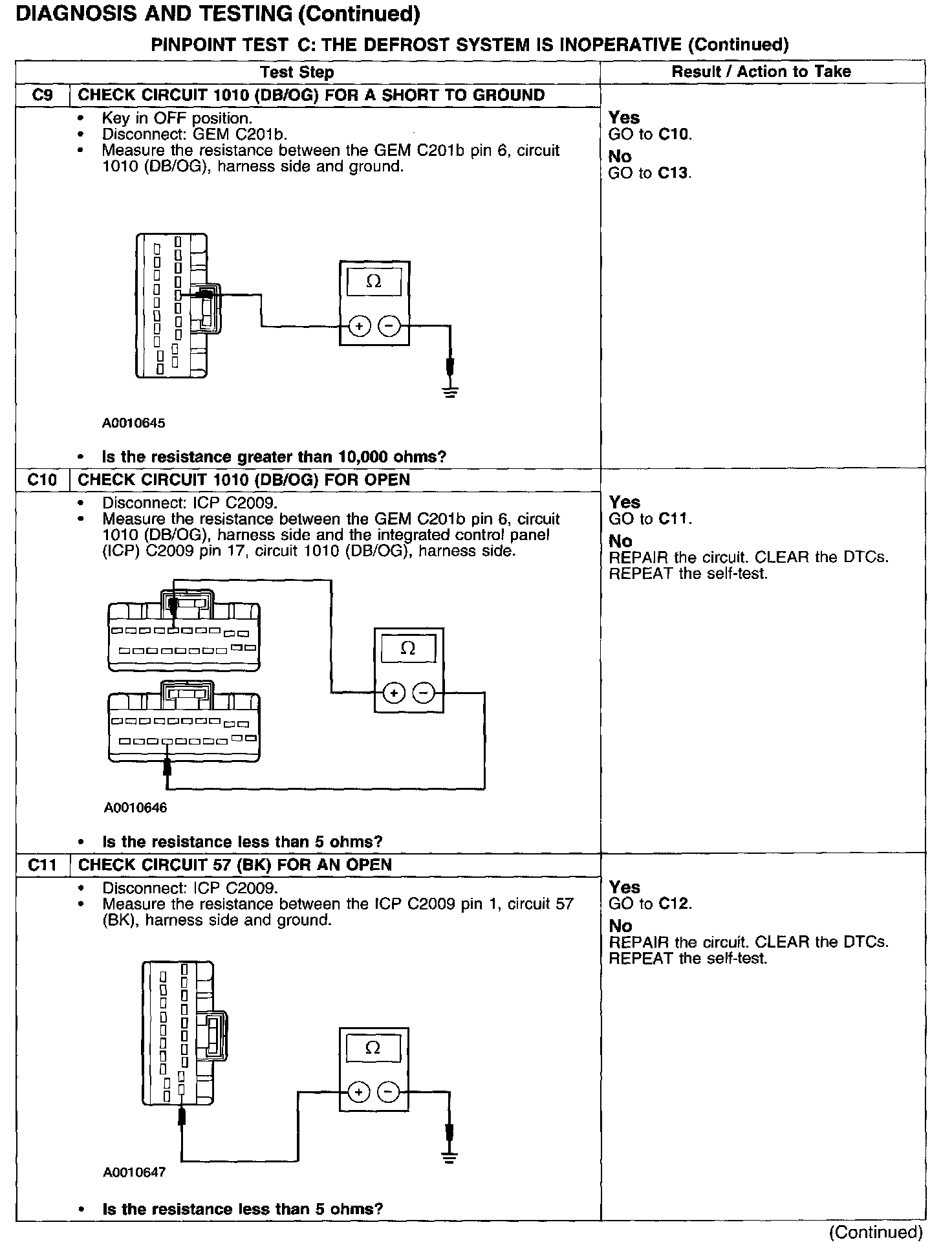

Test C9-C11:

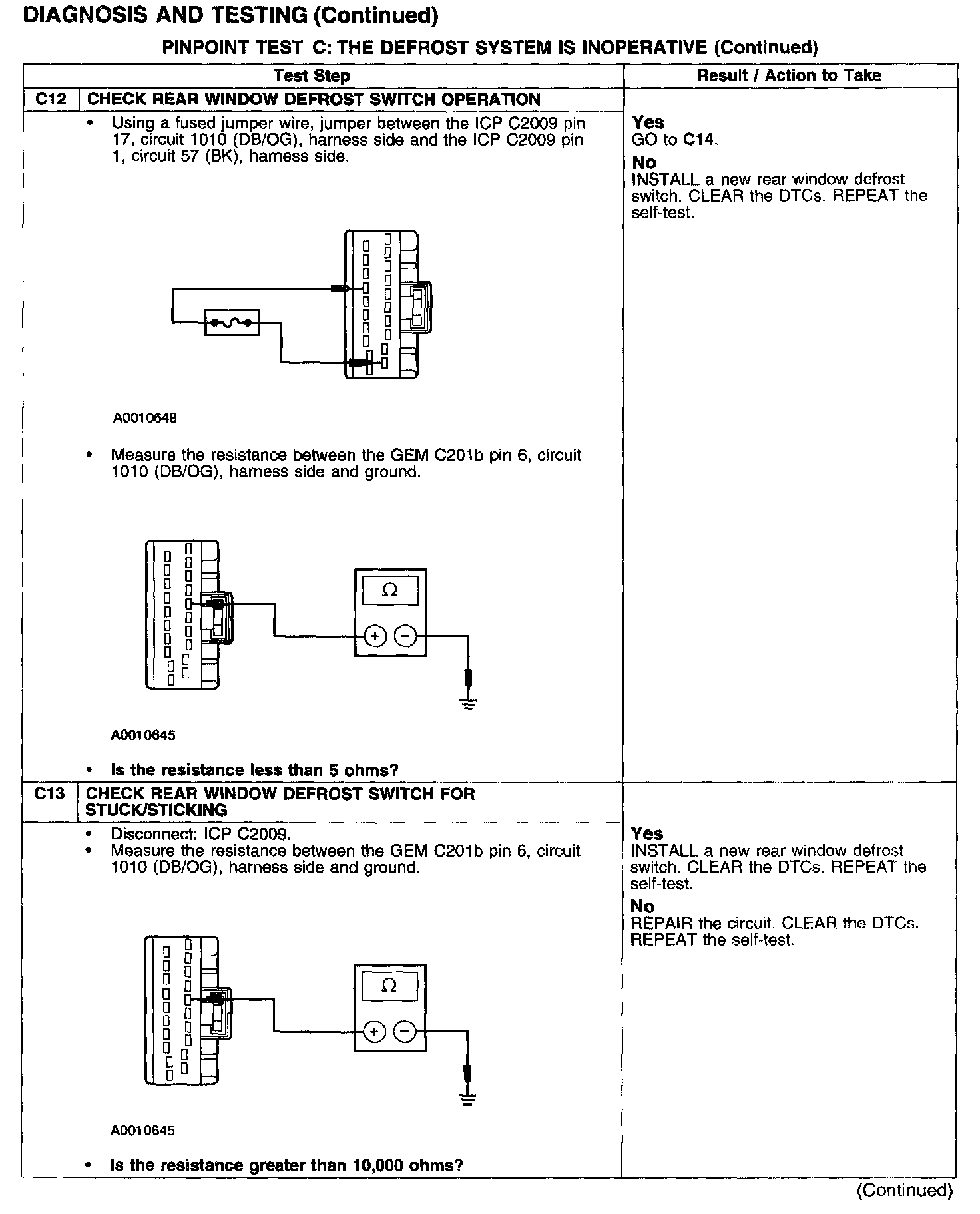

Test C12-C13:

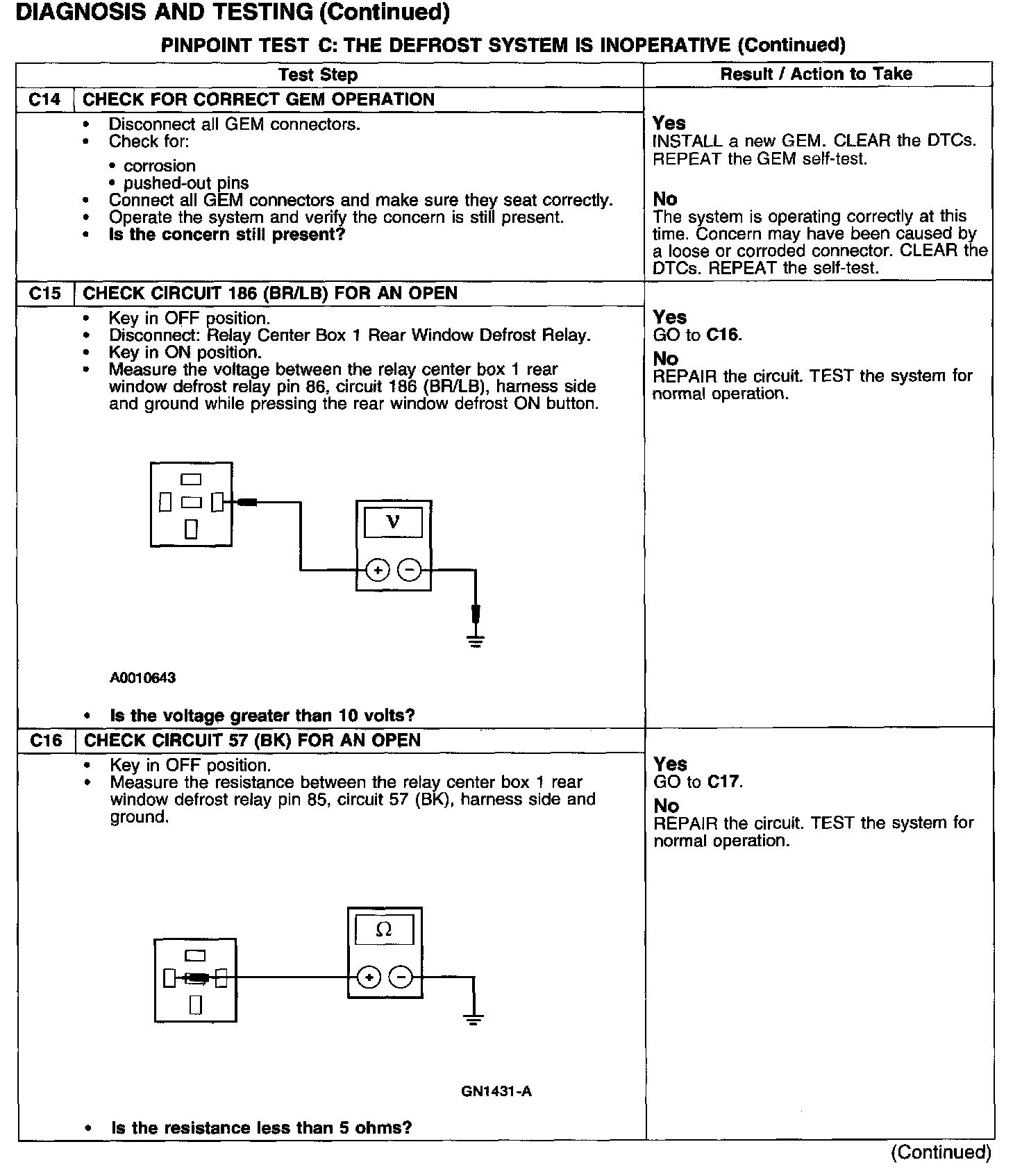

Test C14-C16:

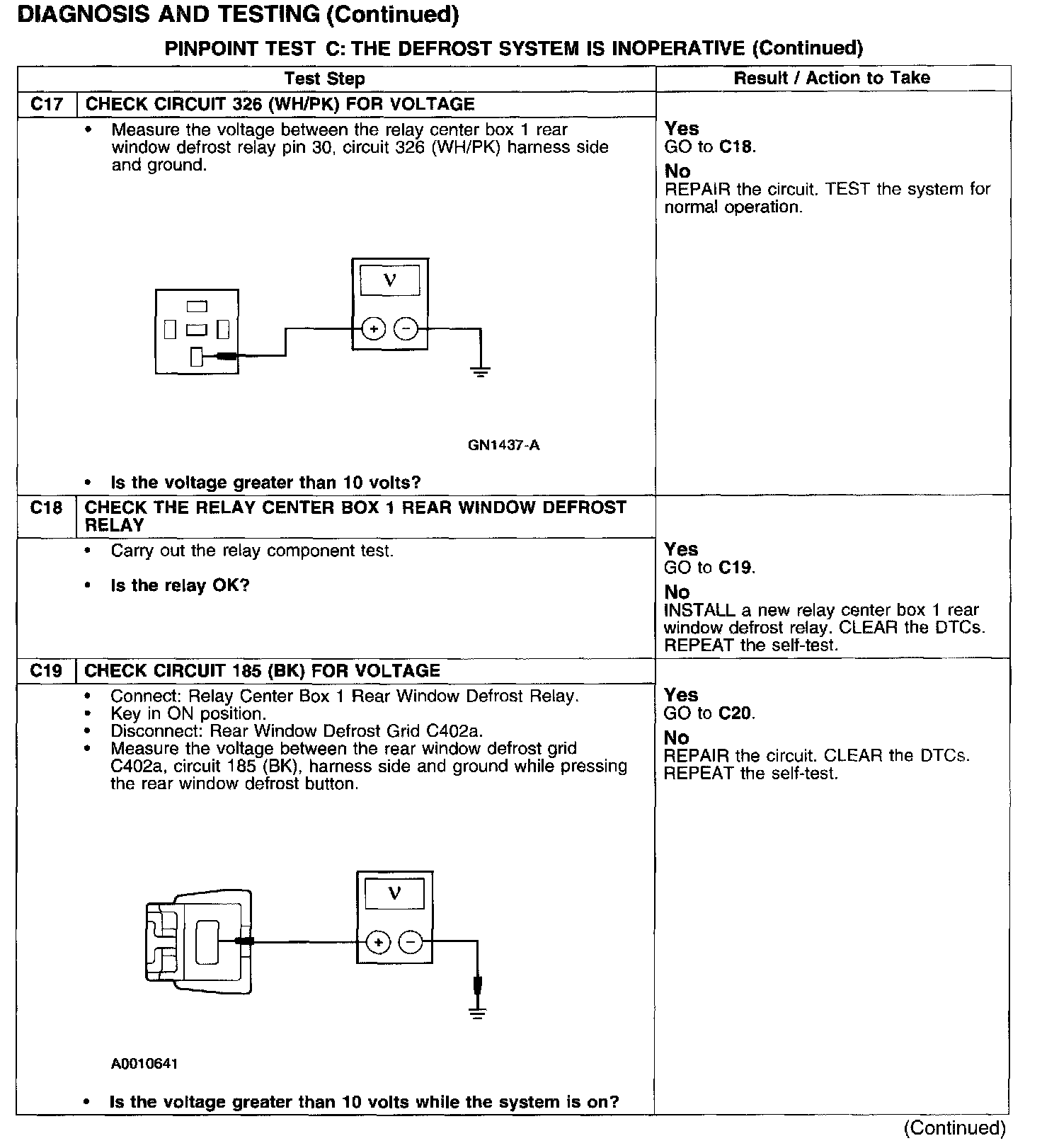

Test C17-C19:

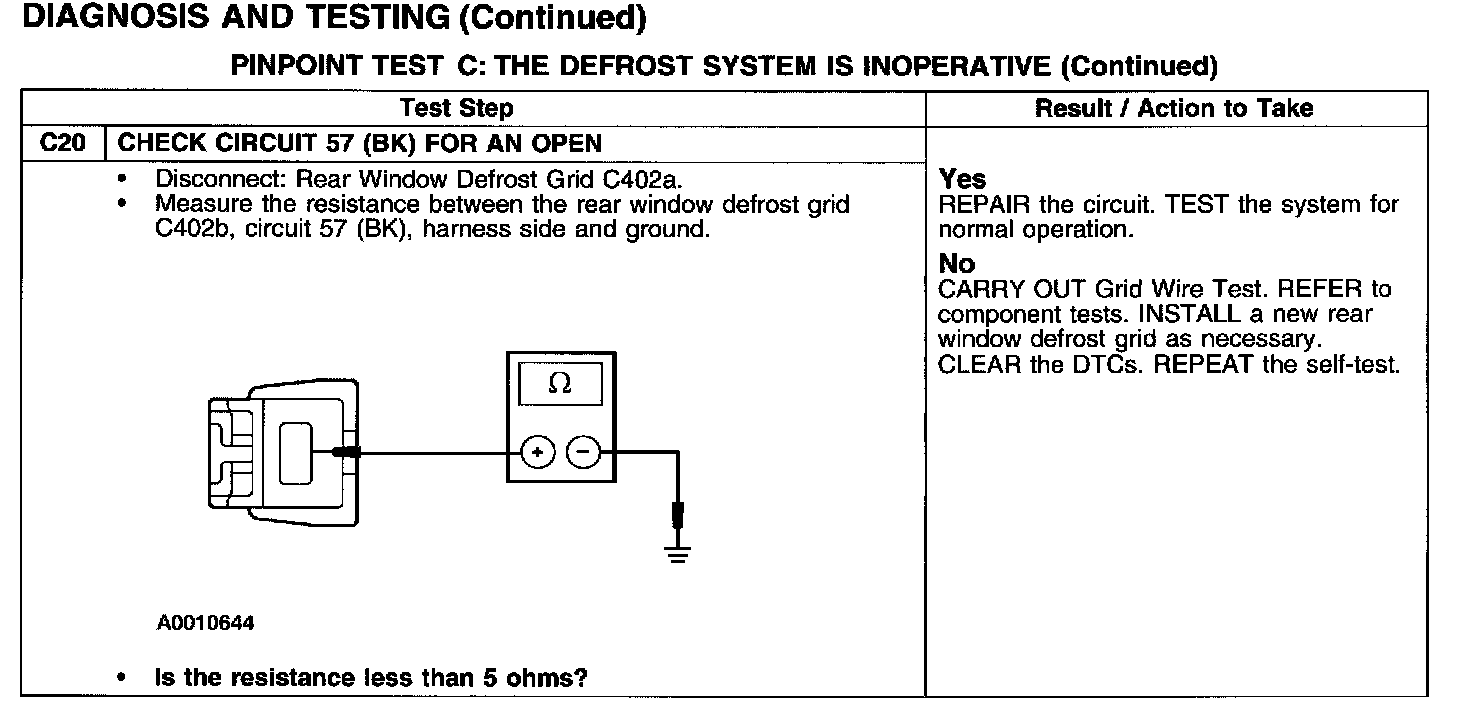

Test C20:
