Rear

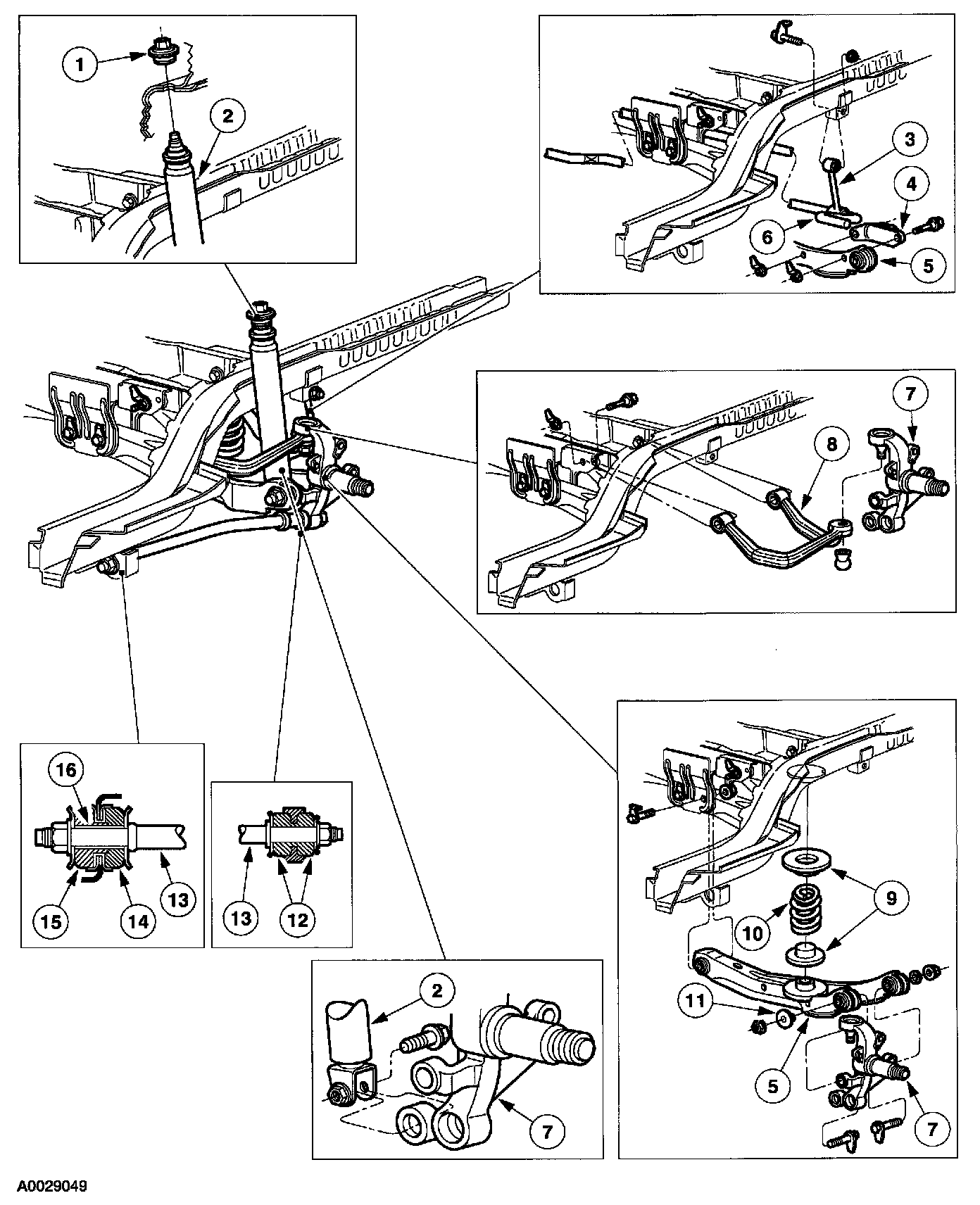

Four Door Rear Suspension Components

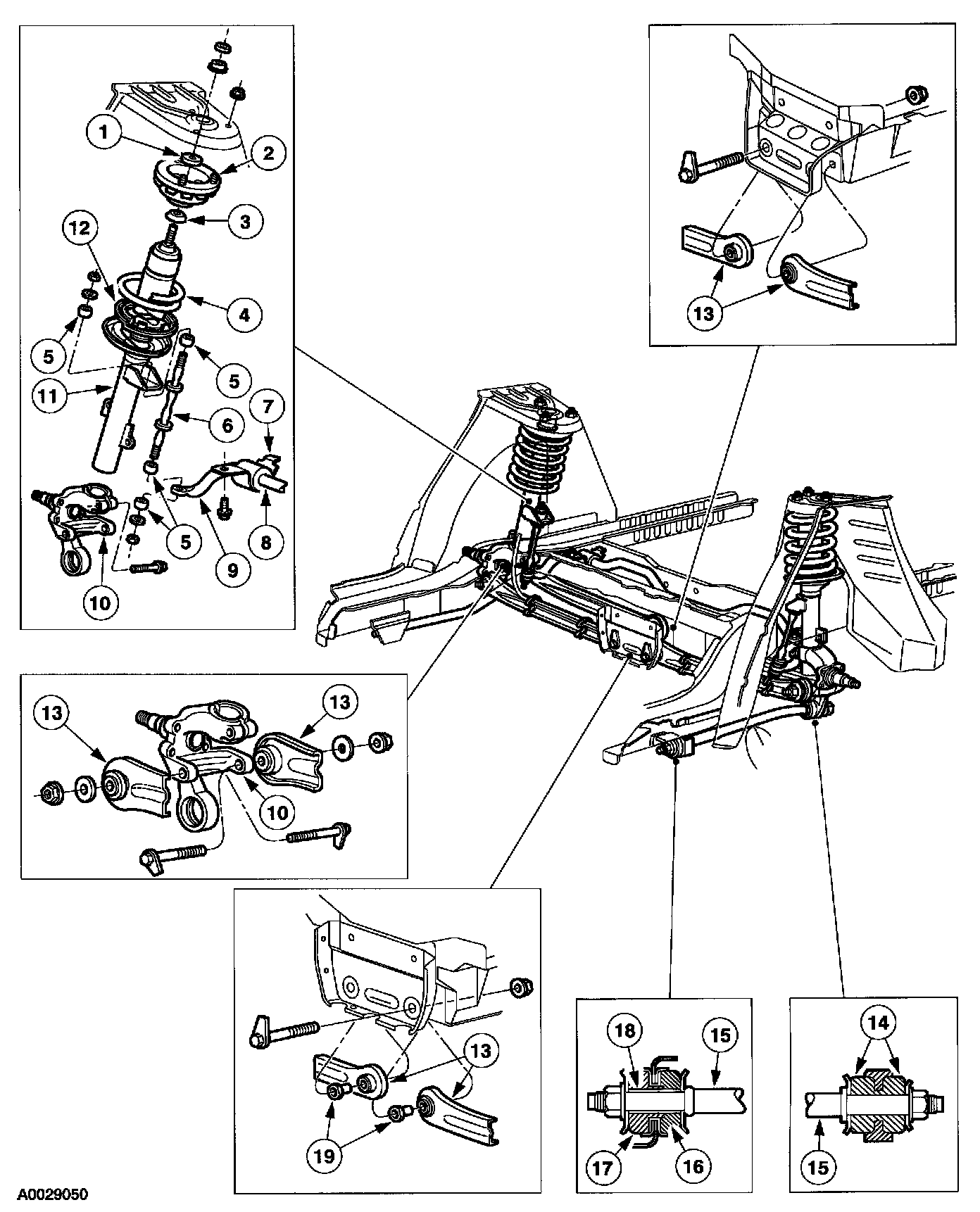

Station Wagon Rear Suspension Components

Wheel Assembly

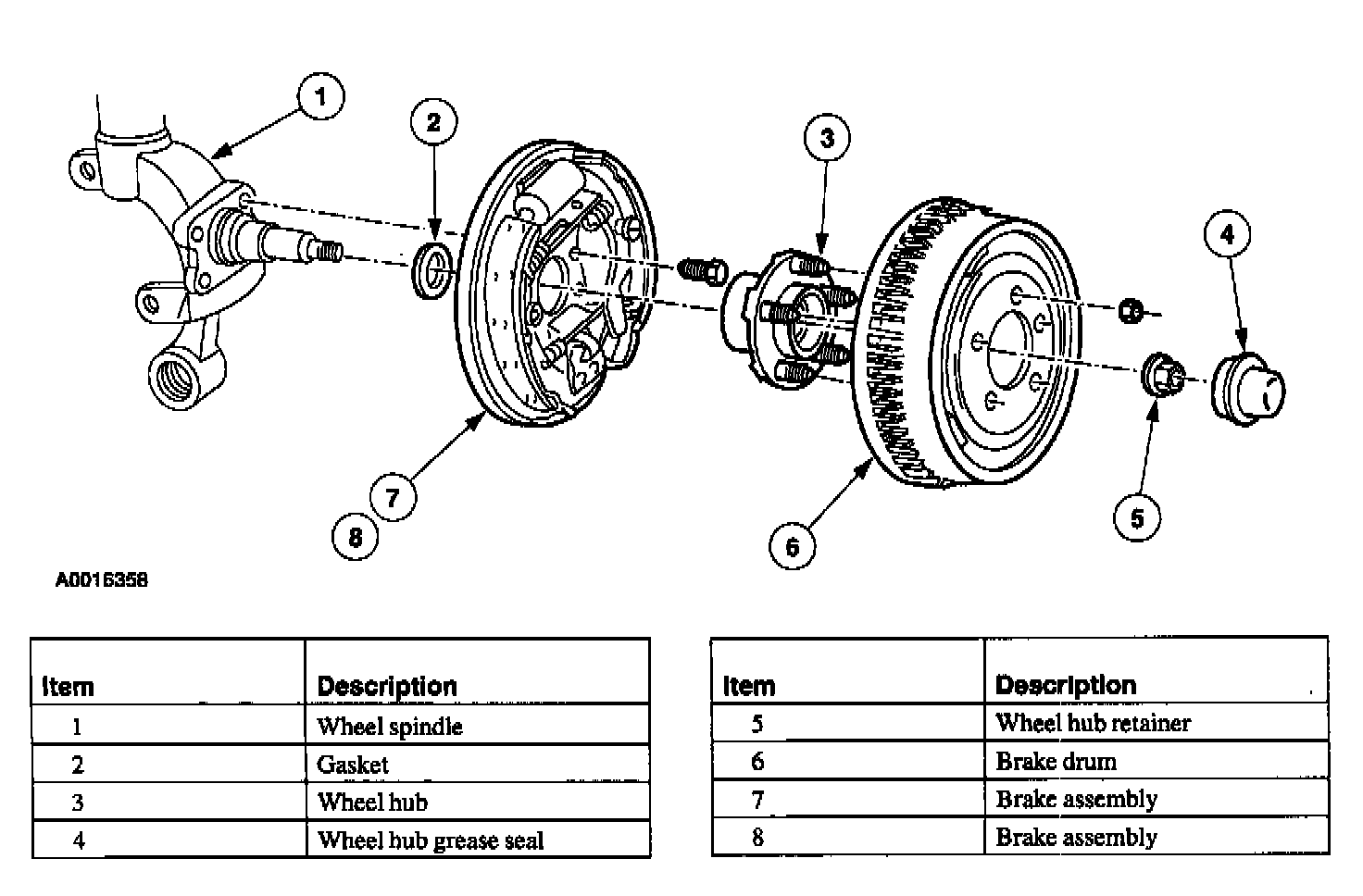

Wheel Assembly-Four Door

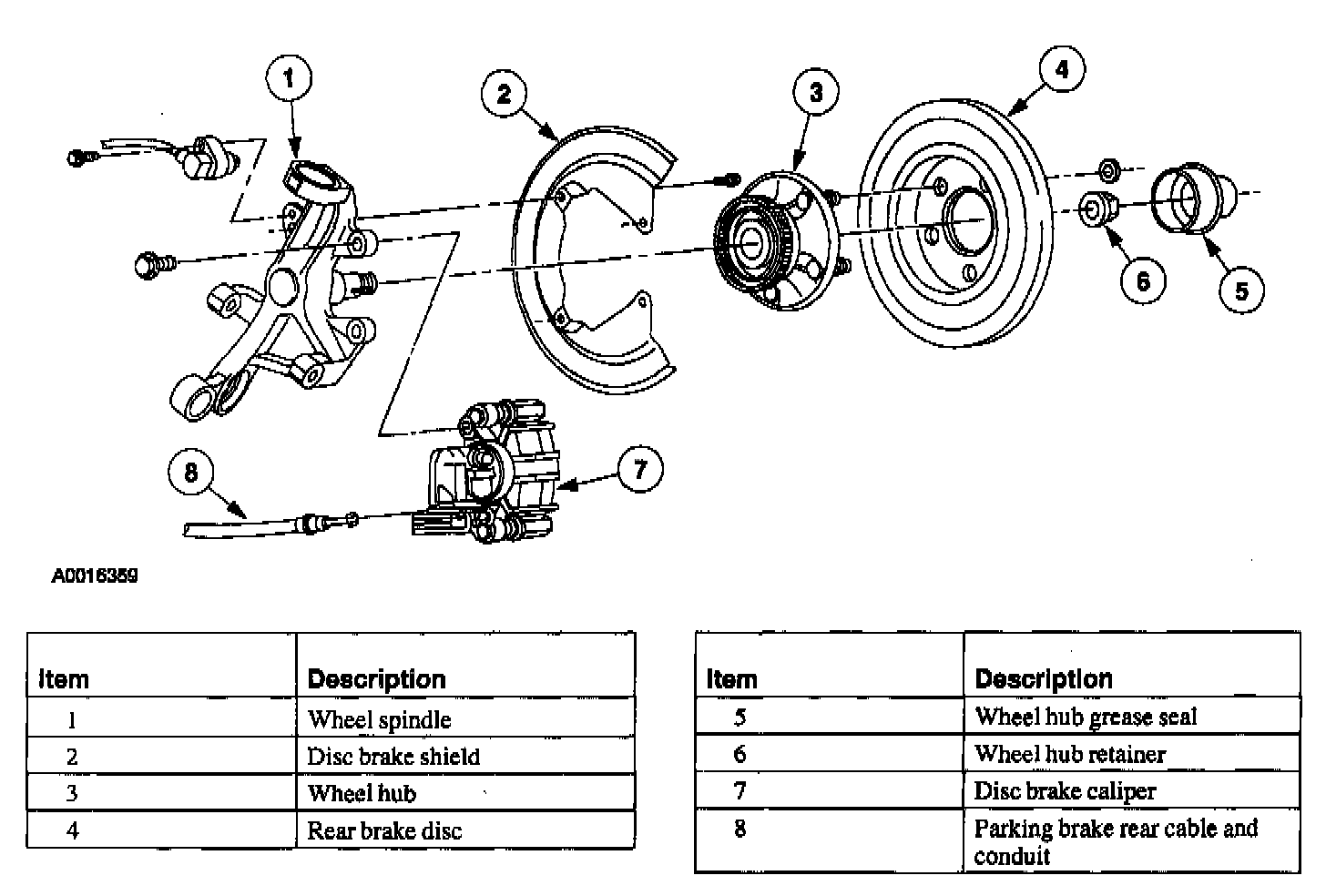

Wheel Assembly-Station Wagon
