Home >> Ford >> 2003 >> Ranger 2WD L4-2.3L VIN D >> Repair and Diagnosis >> Powertrain Management >> Relays and Modules - Powertrain Management >> Relays and Modules - Computers and Control Systems >> Body Control Module >> Locations >> Location Image For Central Security Module

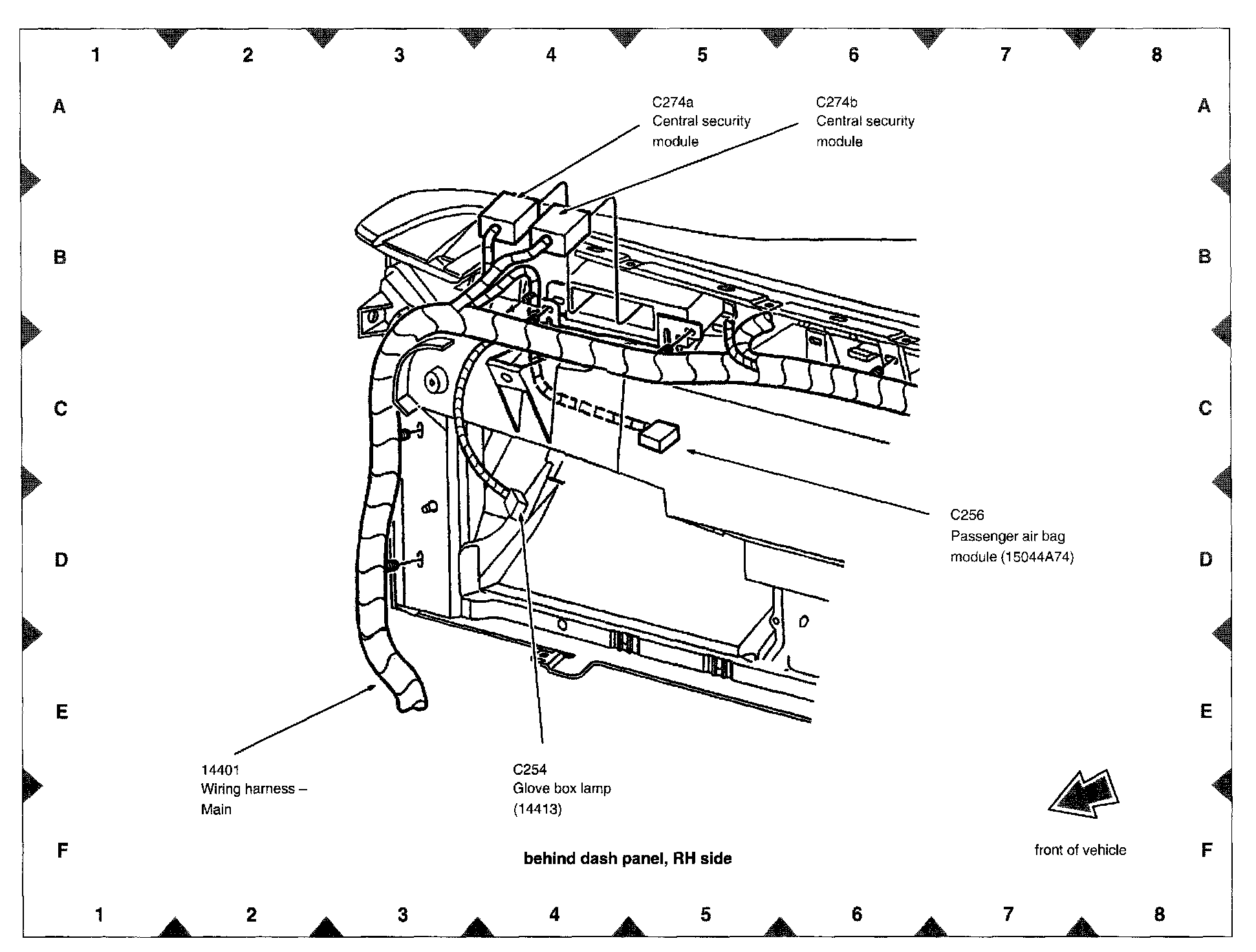

Location Image For Central Security Module

View 151-23:
