Test I

PINPOINT TEST I: NO MODULE / NETWORK COMMUNICATION - NO POWER TO THE DIAGNOSTIC TOOL

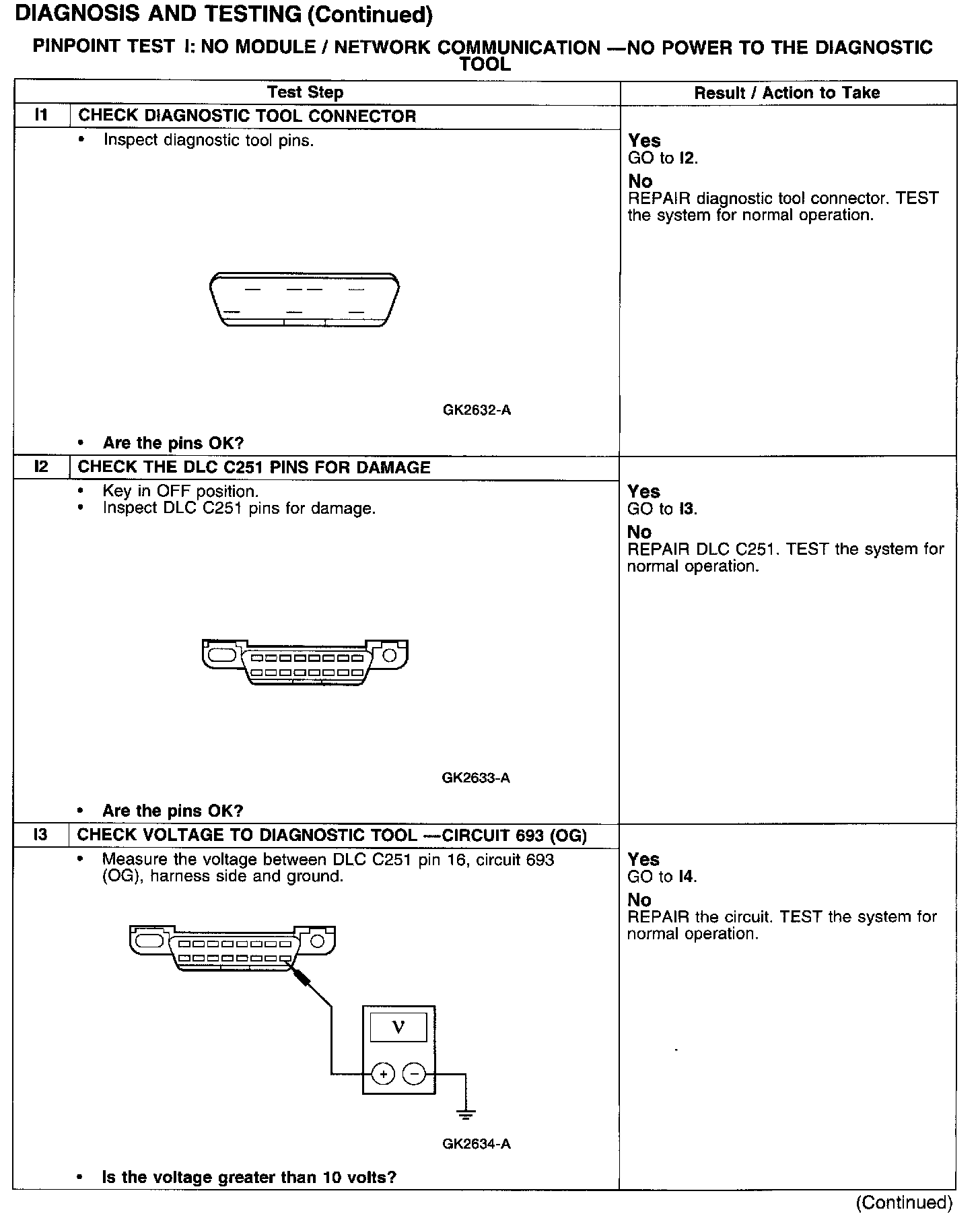

Test I1-I3:

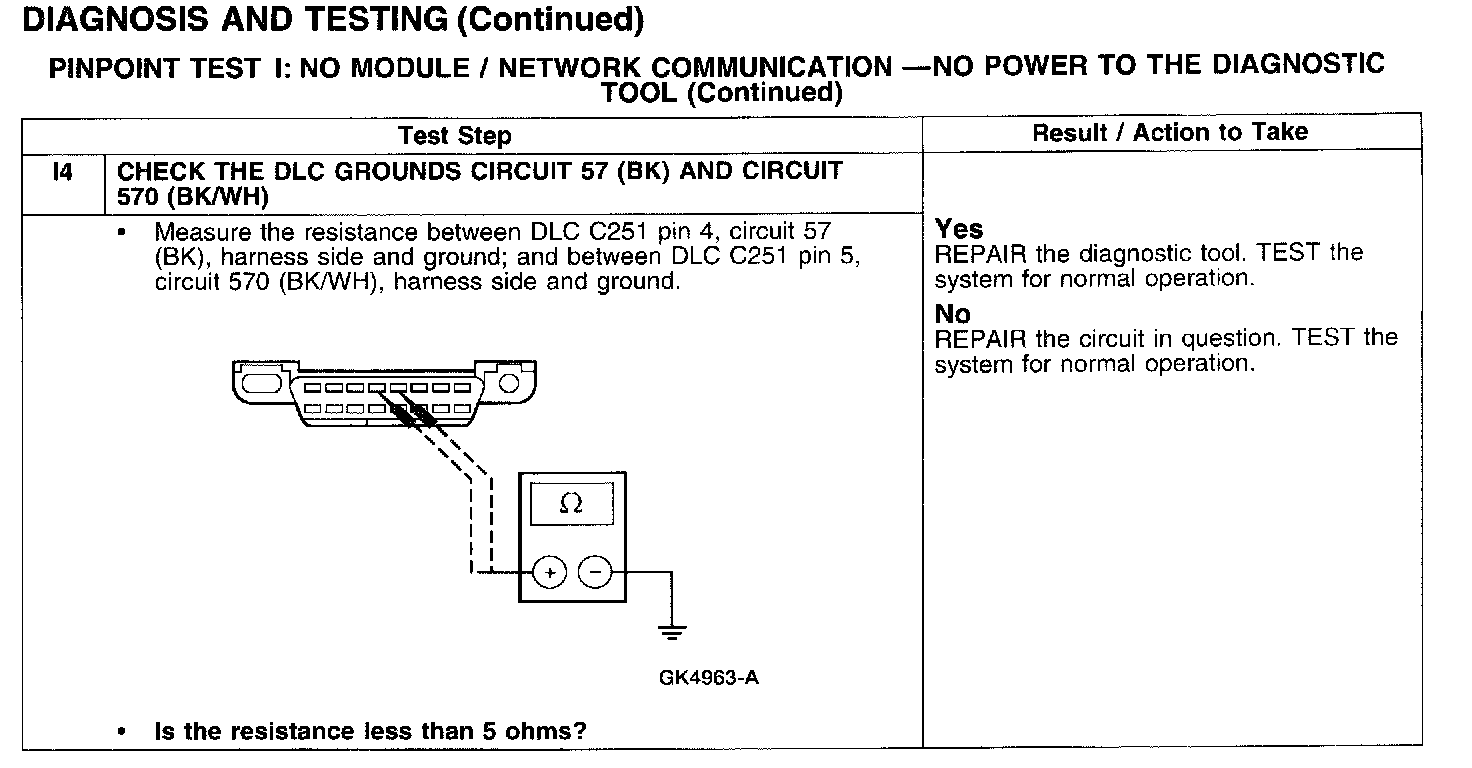

Test I4:
