PINPOINT TEST G: NO MODULE / NETWORK COMMUNICATION - ISO 9141 NETWORK
Test G1:

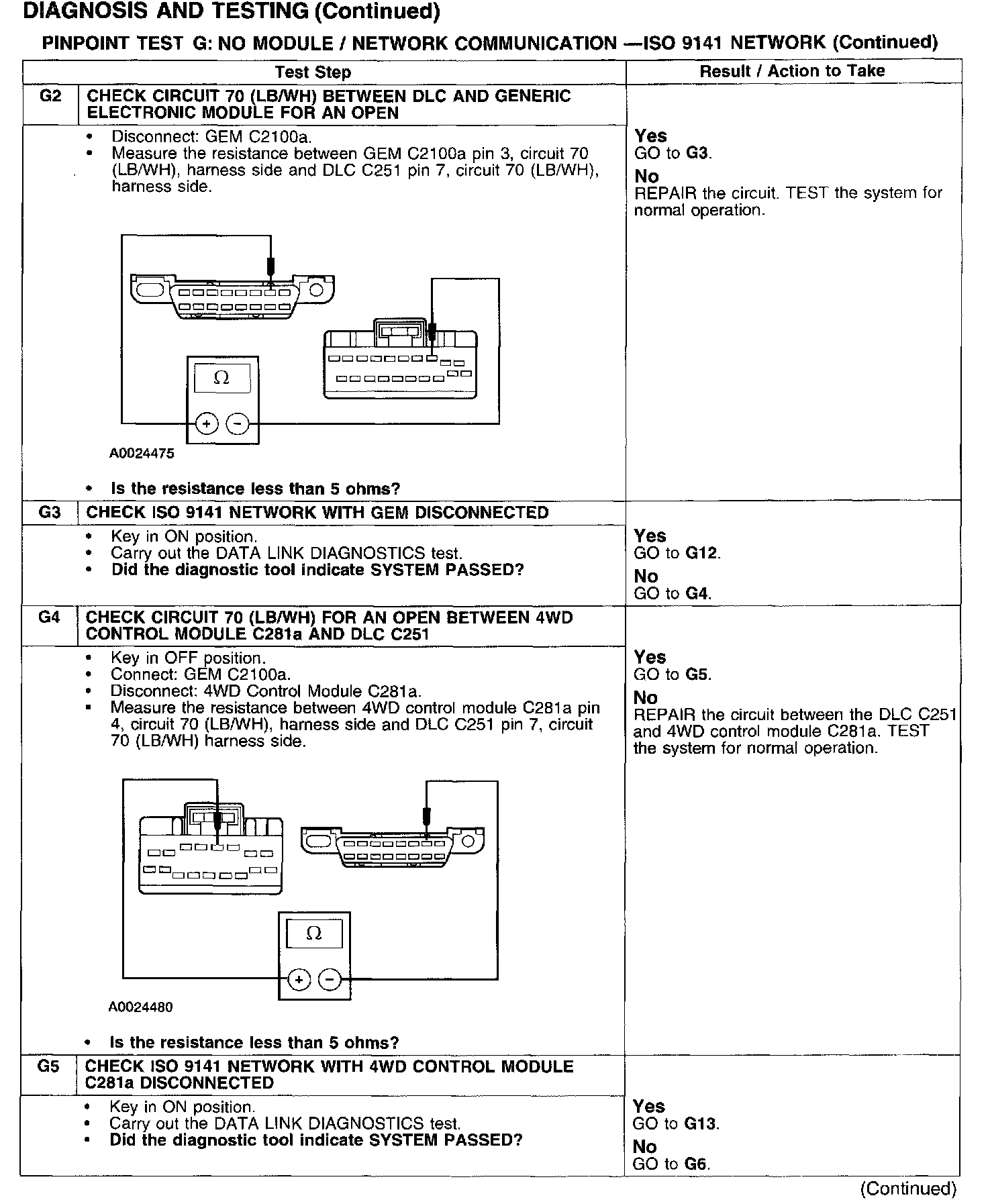

Test G2-G5:

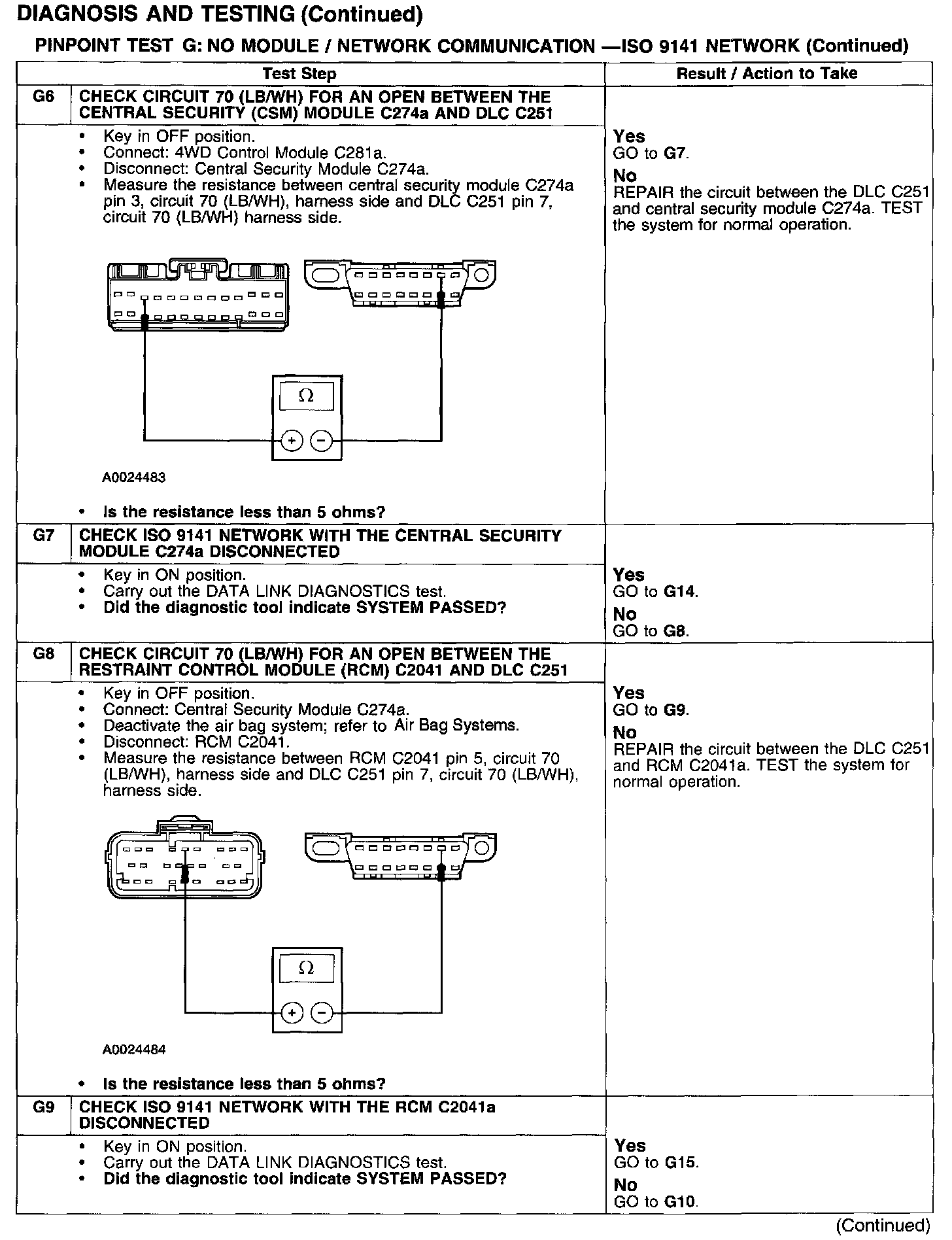

Test G6-G9:

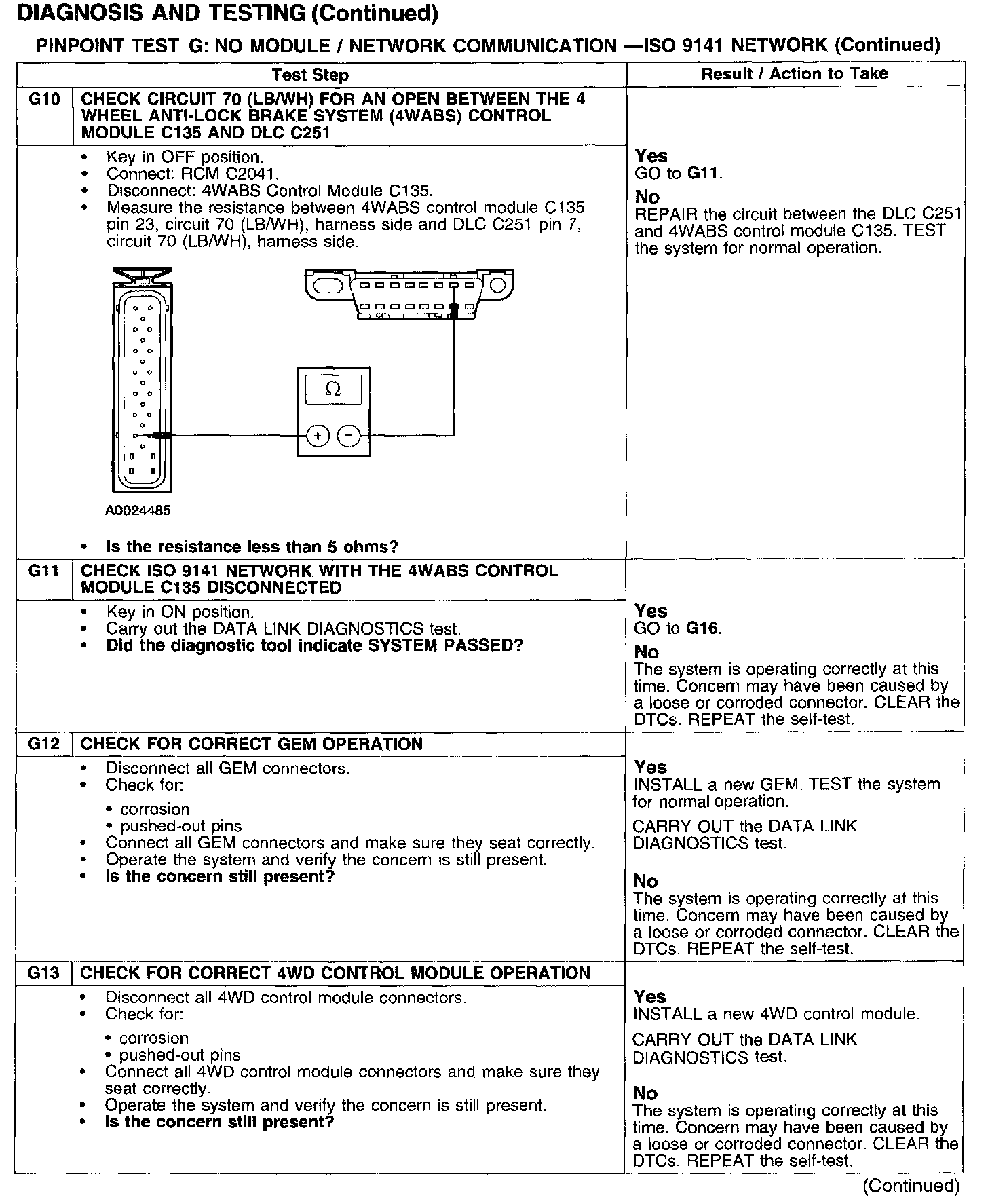

Test G10-G13:

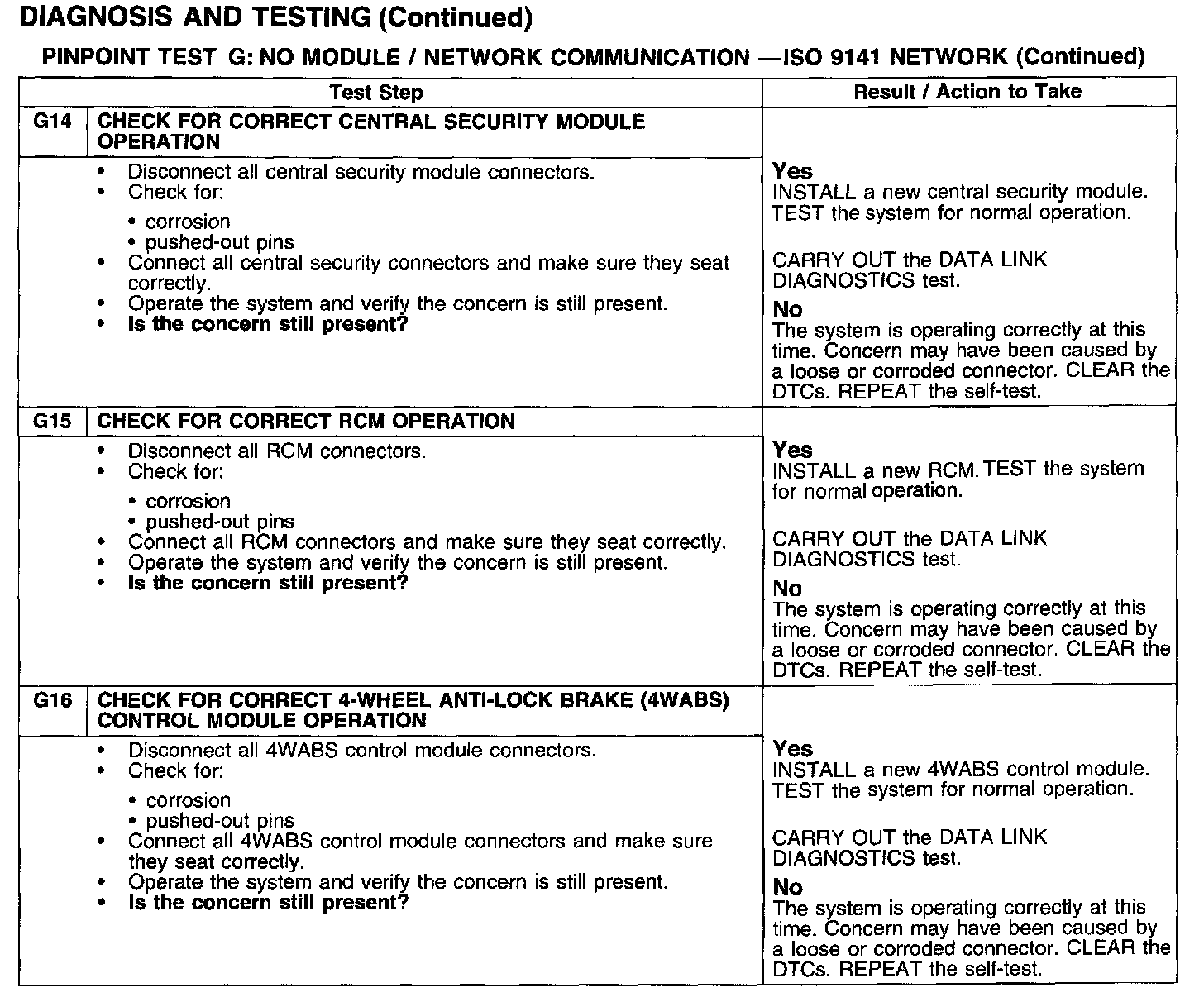

Test G14-G16:
