Transmission Range (TR) Sensor Vehicle Harness Connector
Transmission Range (TR) Sensor Vehicle Harness Connector
Transmission Range (TR) Sensor Vehicle Harness Connector

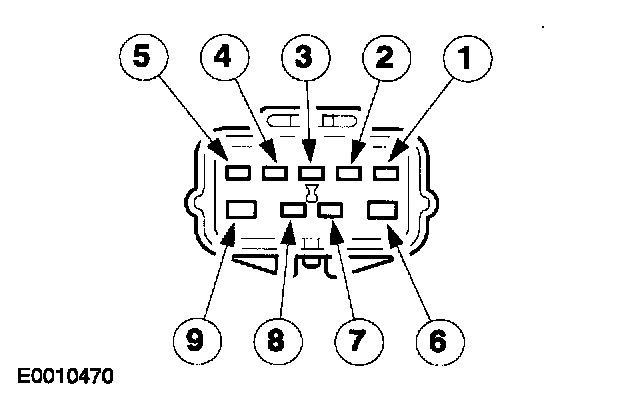

Part 1 Of 2:

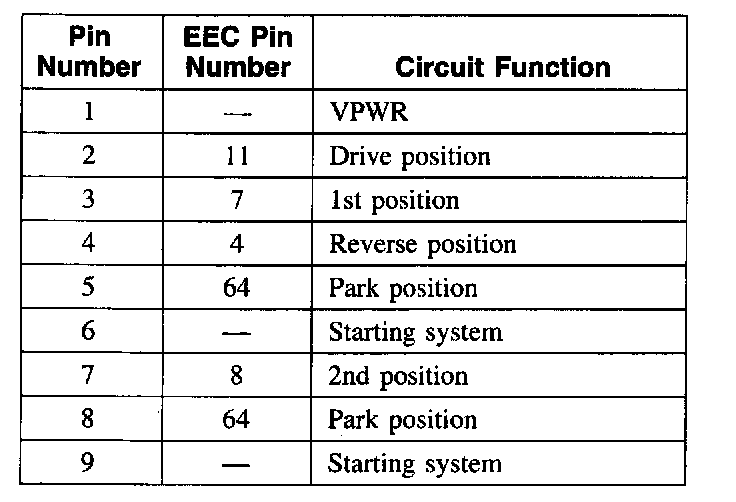

Part 2 Of 2:
