Tests HY: Generator/Regulator System

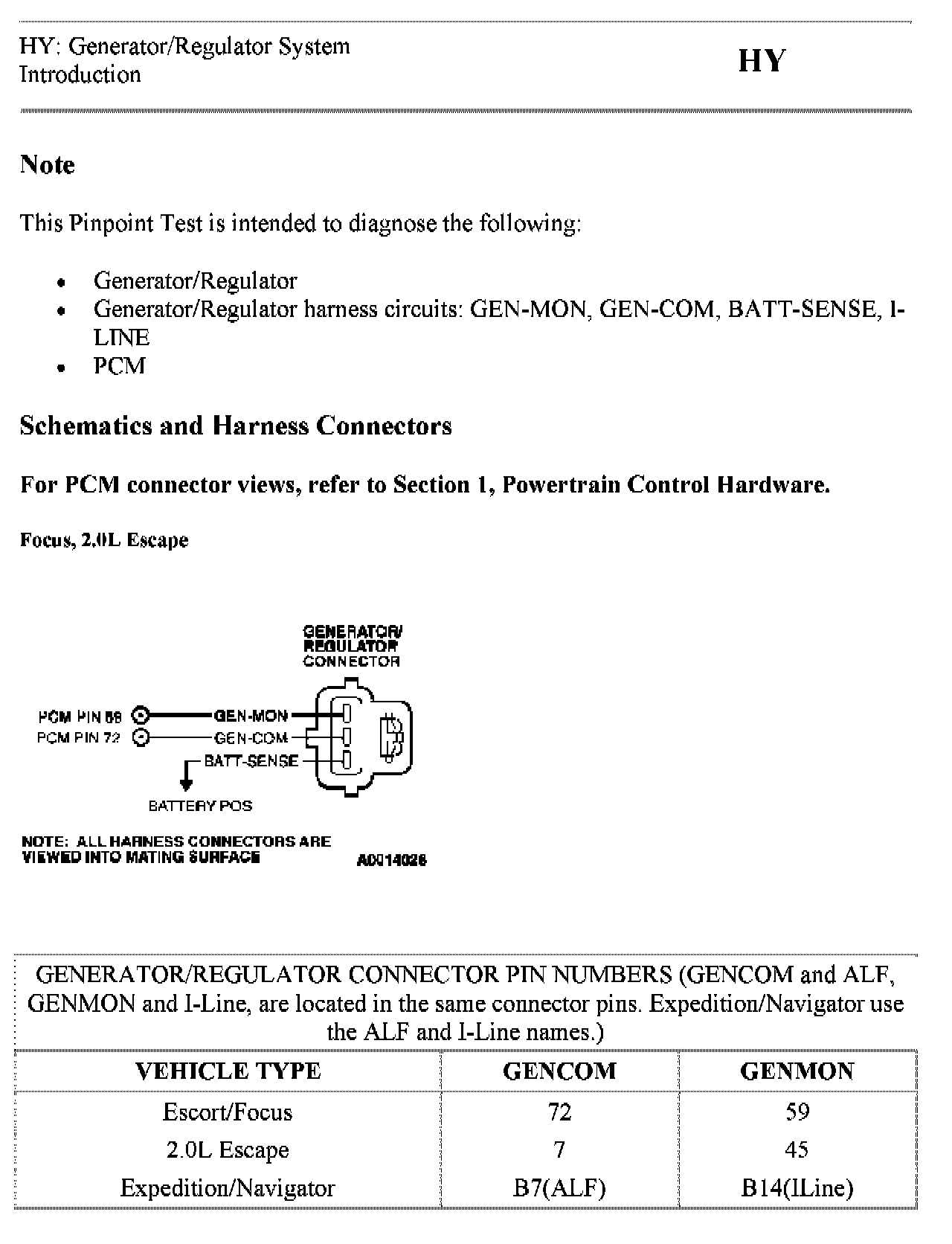

HY INTRODUCTION 1 OF 3:





HY INTRODUCTION 2 OF 3:





HY INTRODUCTION 3 OF 3:

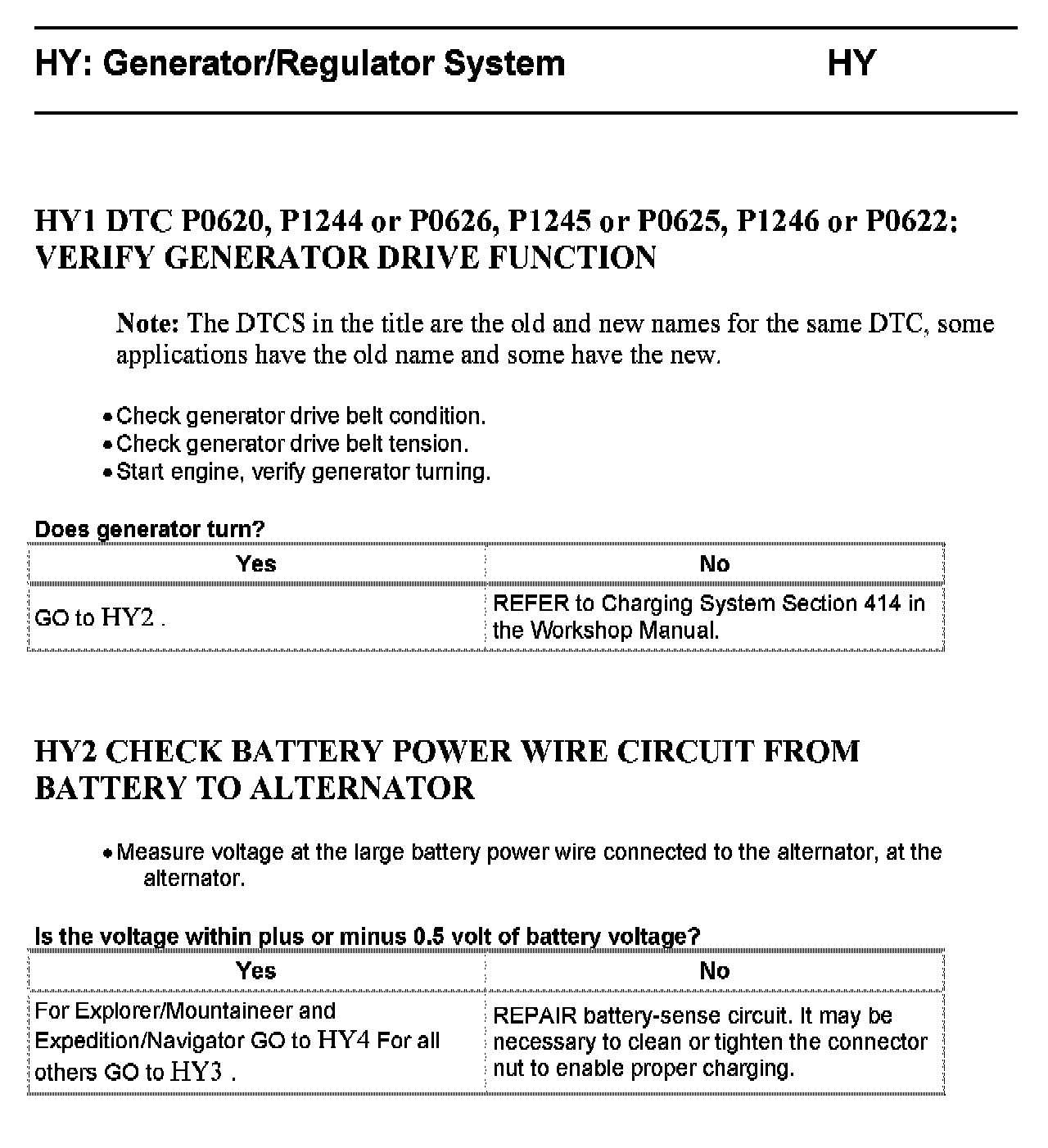

HY1 - HY2:

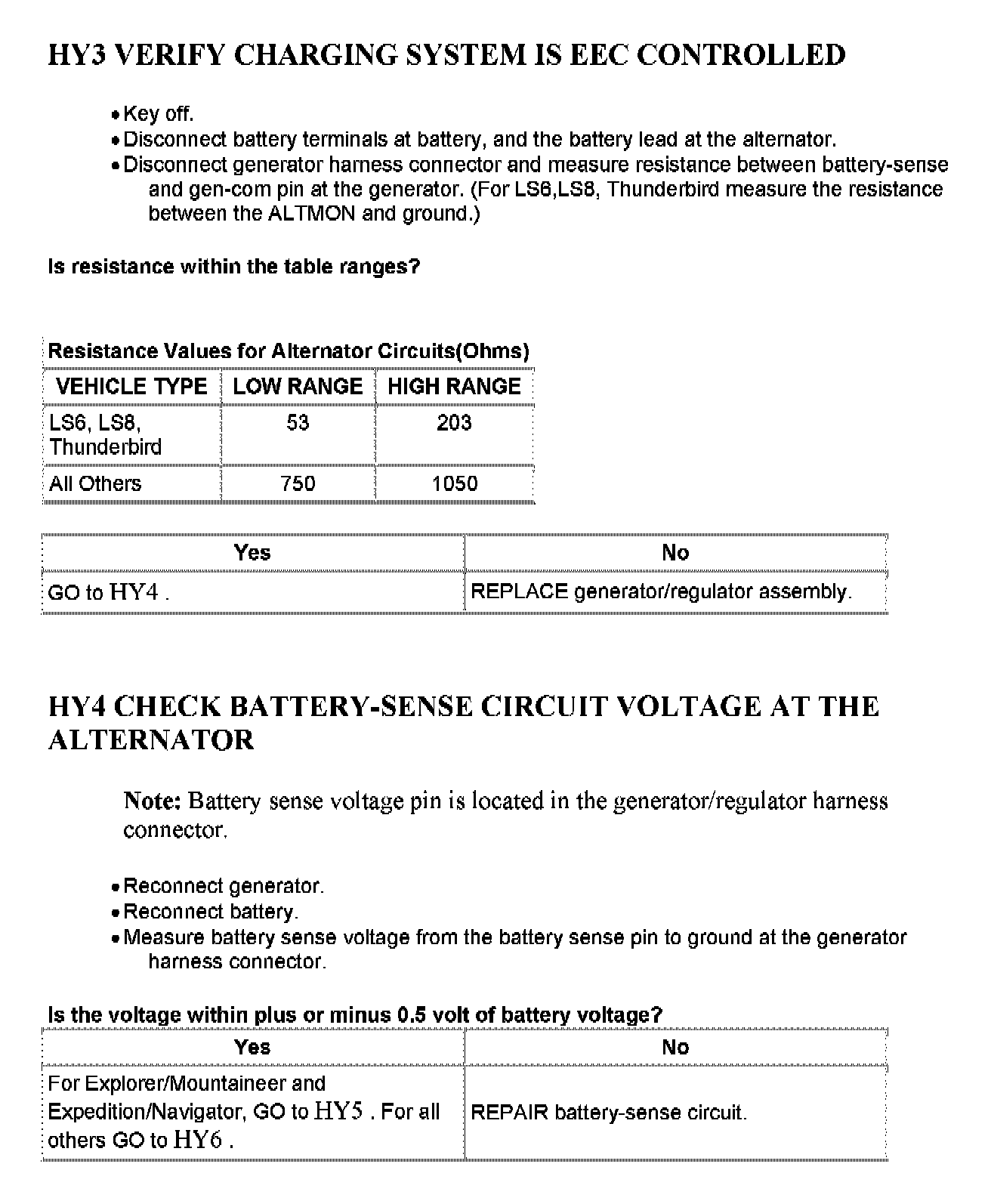

HY3 - HY4:

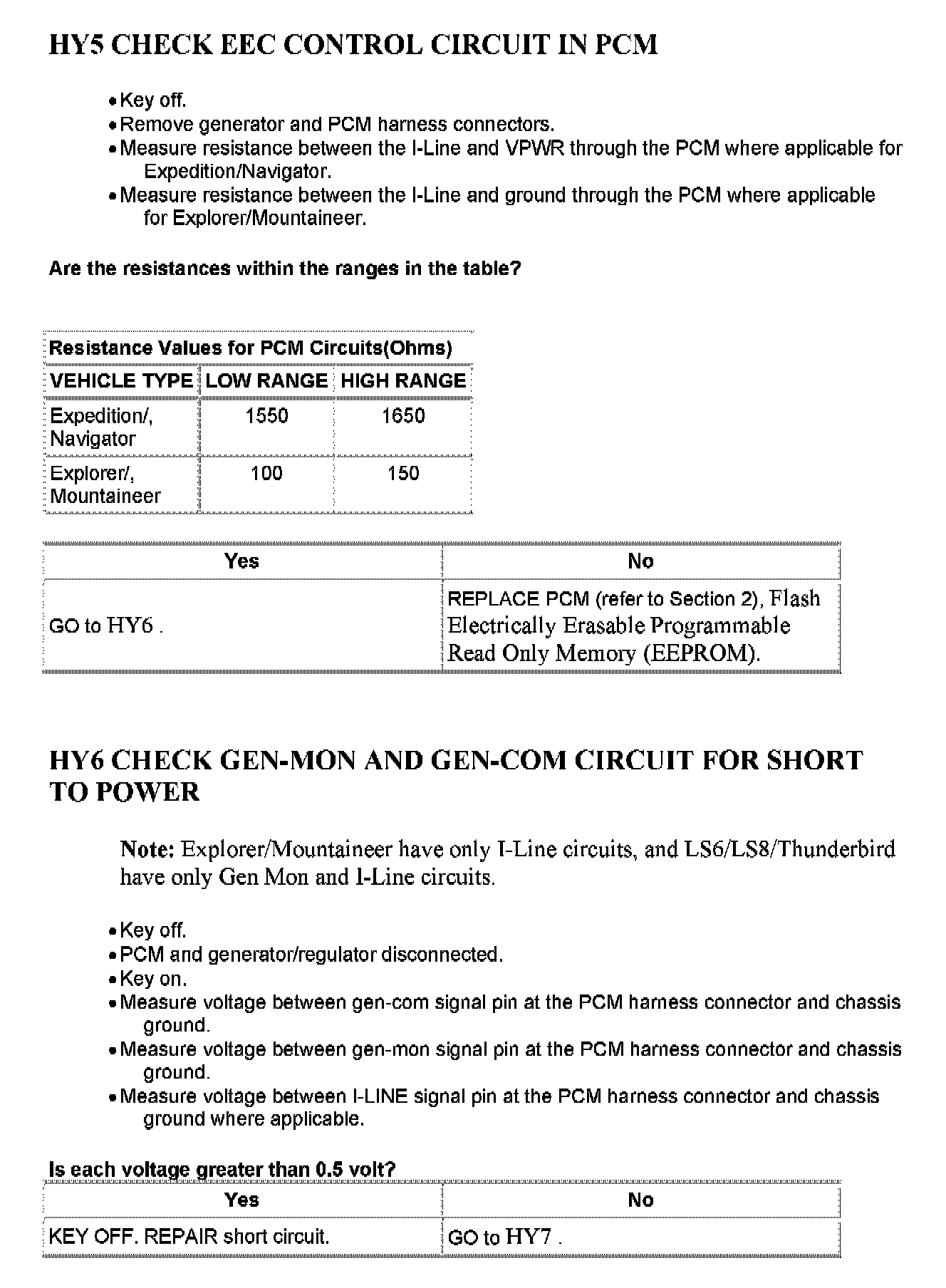

HY5 - HY6:

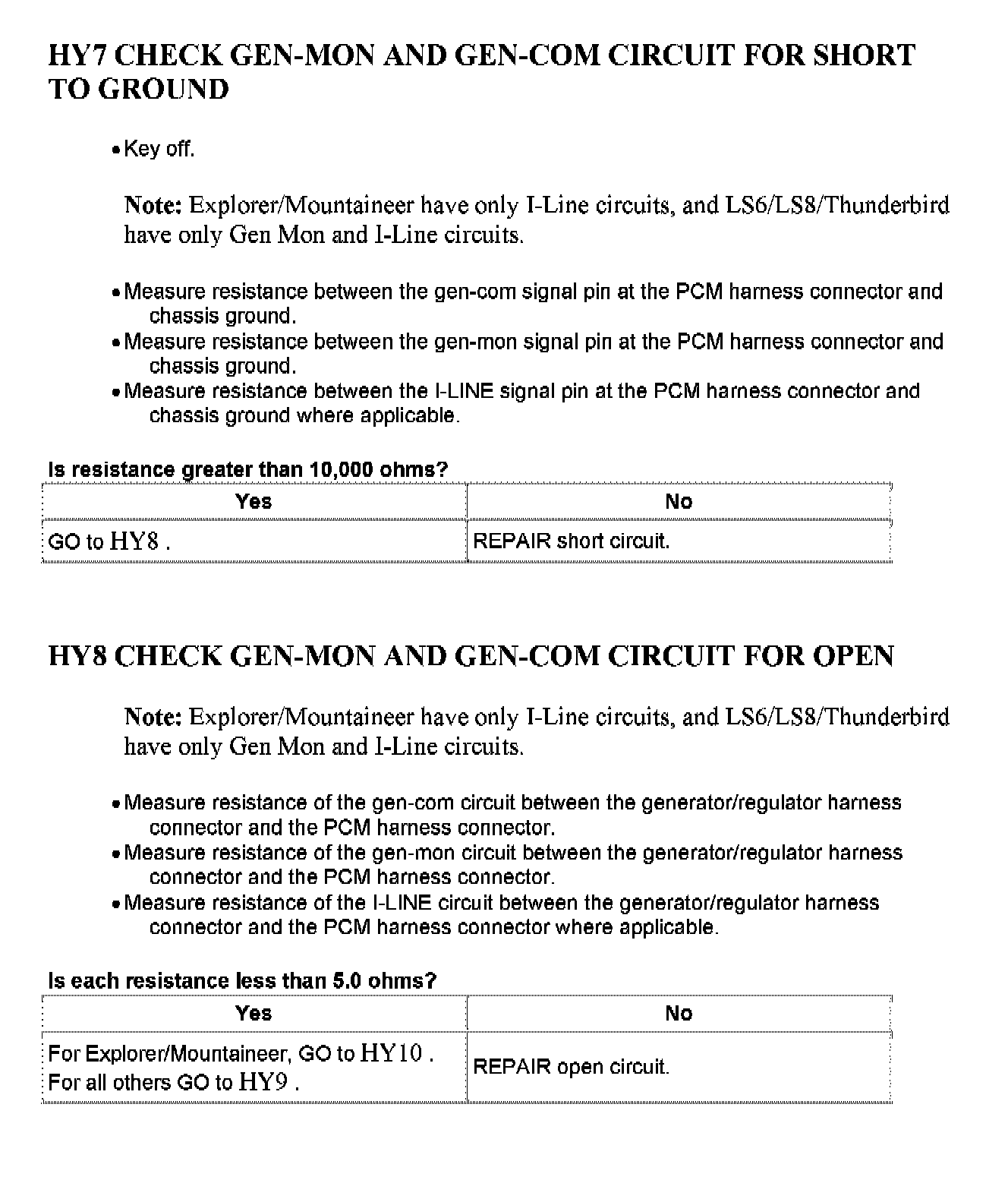

HY7 - HY8:

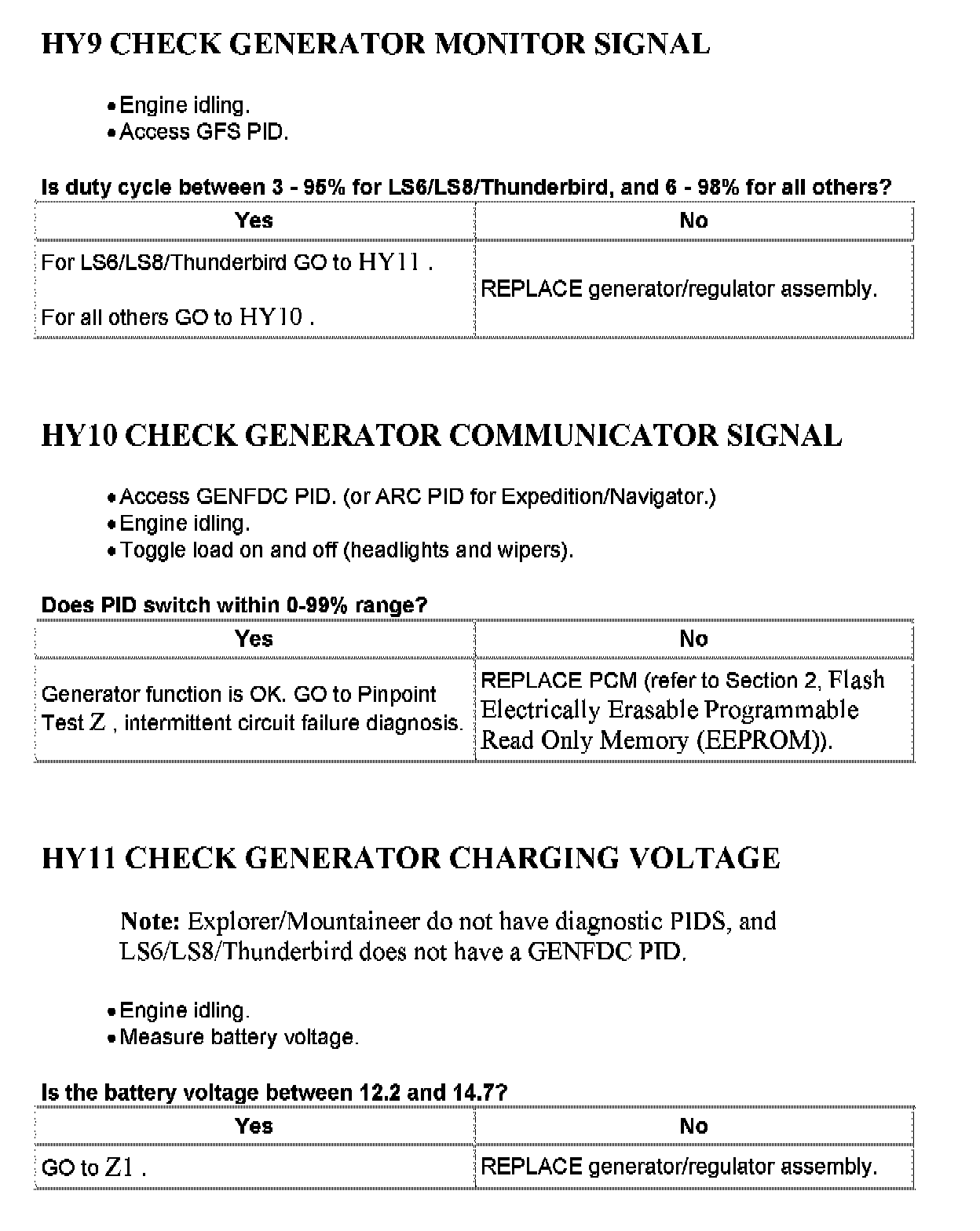

HY9 - HY11:
