PINPOINT TEST C: THE INSTRUMENT CLUSTER DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

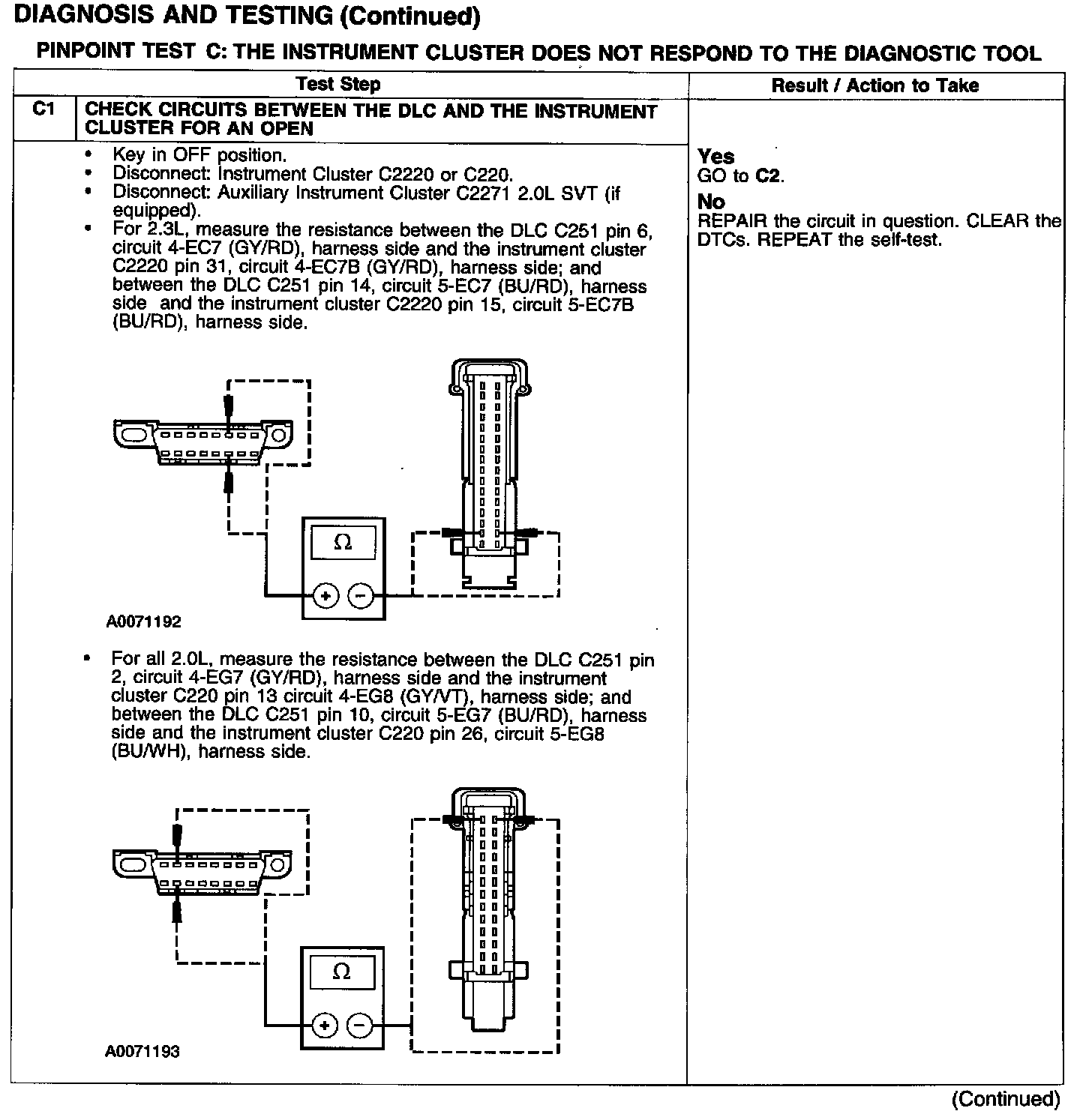

Test C1:

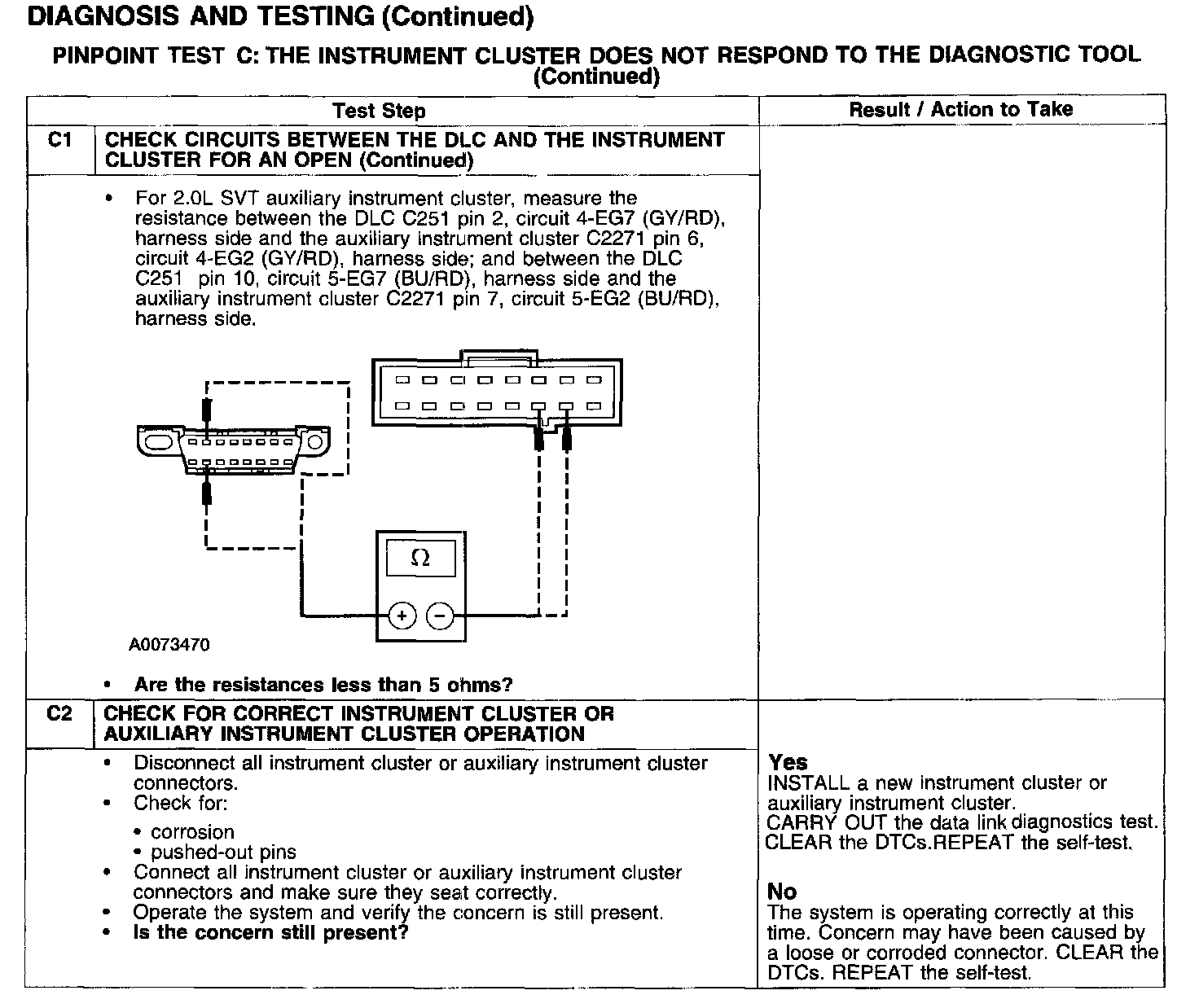

Test C1-C2:
