Home >> Ford >> 2003 >> Focus L4-2.3L VIN Z >> Repair and Diagnosis >> Diagrams >> Connector Views >> Refrigerant Pressure Sensor / Switch, HVAC >> A/C Compressor Cycling Switch

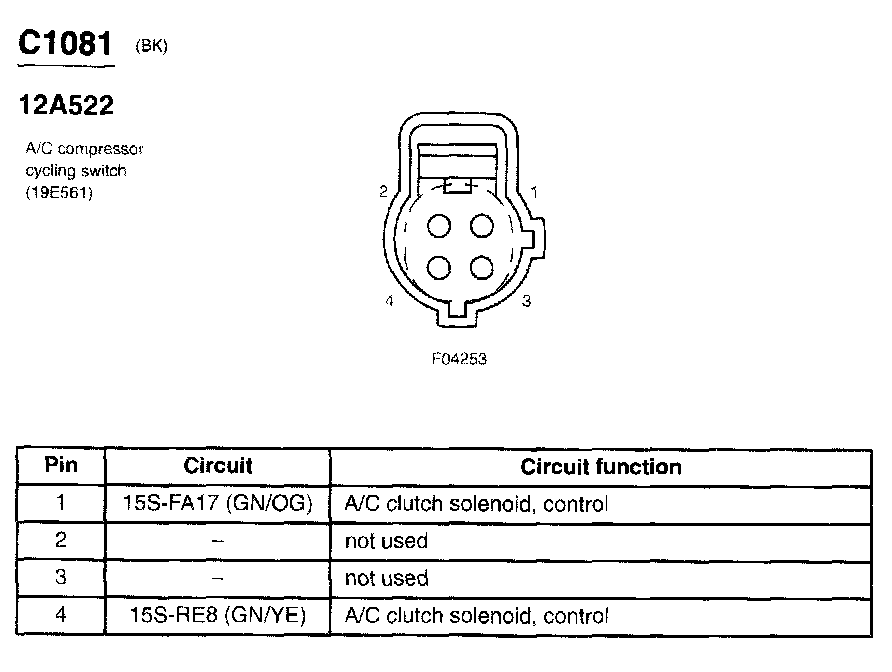

A/C Compressor Cycling Switch
