Throttle Position Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.







2. Remove the Throttle Position (TP) sensor.

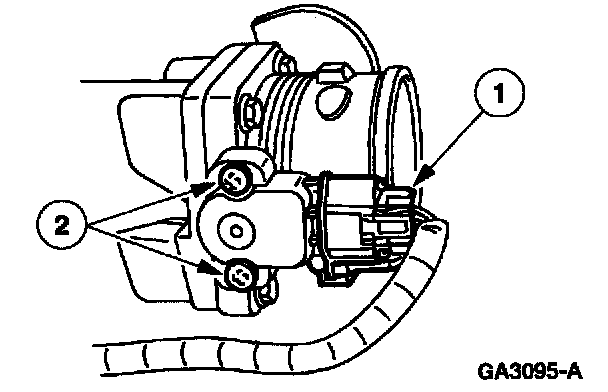

1 Disconnect the electrical connector.
2 Remove the screws and the TP sensor.

INSTALLATION
1. To install, reverse the removal procedure.
