Pressure Feedback Exhaust Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.







2. Remove the differential pressure feedback (EGR) system.

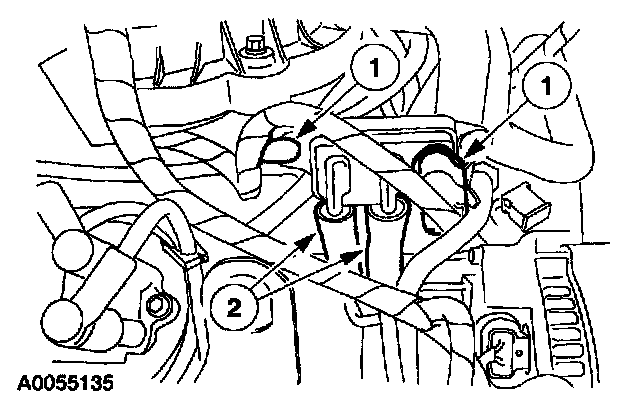

1 Disconnect the electrical connector and the wiring harness pin-type retainer.
2 Remove the system vacuum hoses from the EGR tube.

INSTALLATION
1. To install, reverse the removal procedure.
