Home >> Ford >> 2003 >> F 150 2WD Pickup V6-4.2L VIN 2 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Major Upper Engine Components

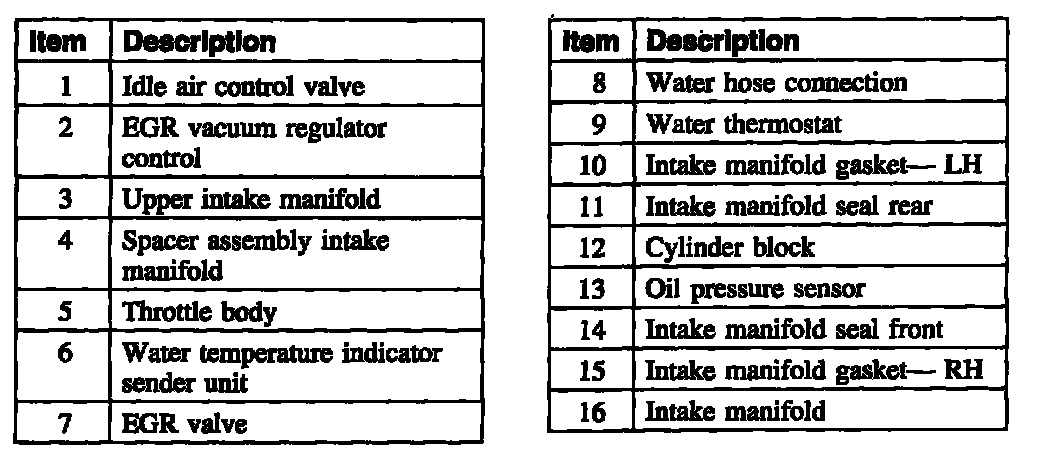

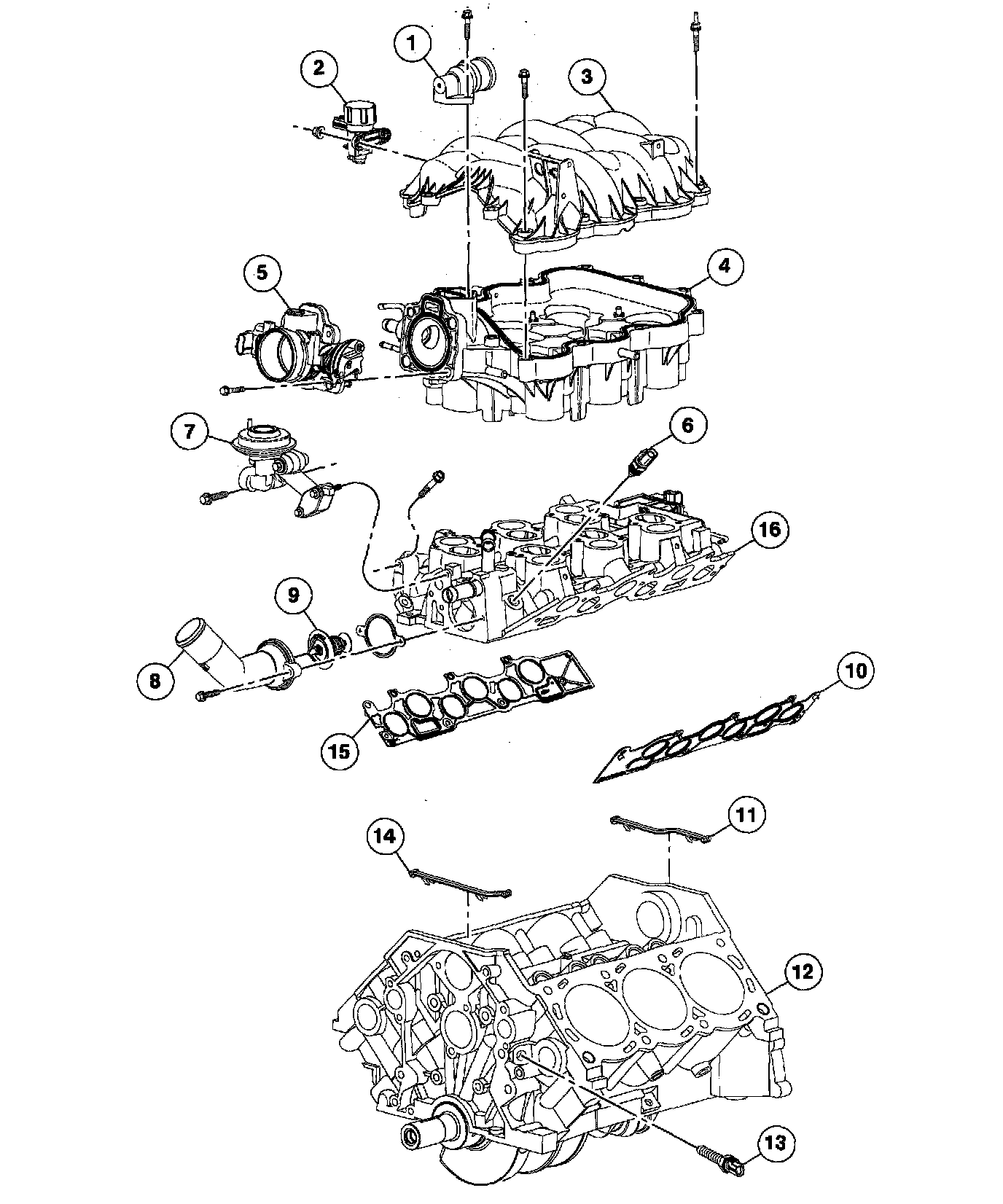

Major Upper Engine Components

Major Upper Engine Components

Part 1 Of 2:




Part 2 Of 2:
