Home >> Ford >> 2003 >> F 150 2WD Pickup V6-4.2L VIN 2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> Front Blower Motor Speed Controller

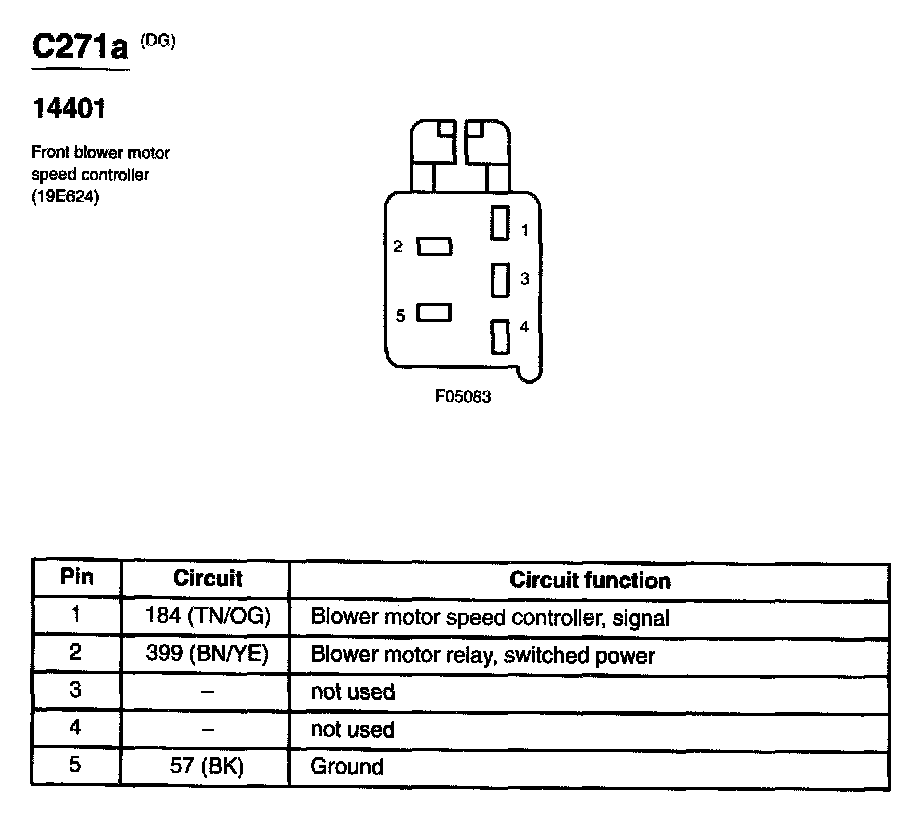

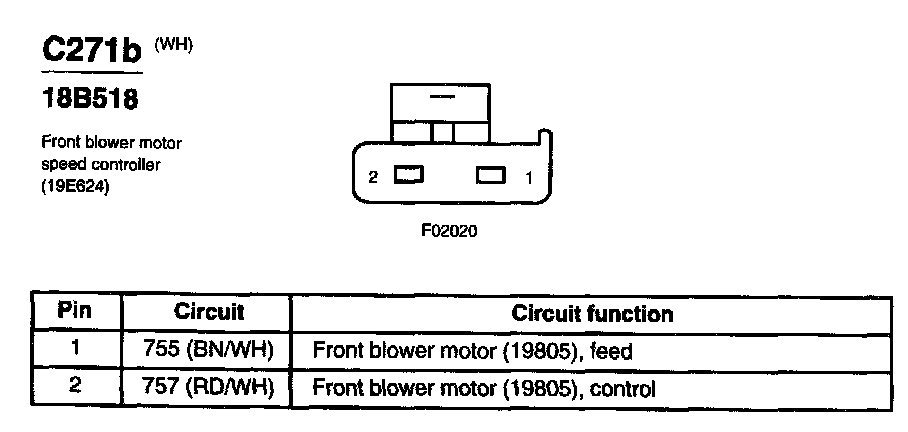

Front Blower Motor Speed Controller
