PINPOINT TEST O: THE
KEYLESS ENTRY
KEYPAD ILLUMINATION IS INOPERATIVE - USING 6 WIRE KEYPAD

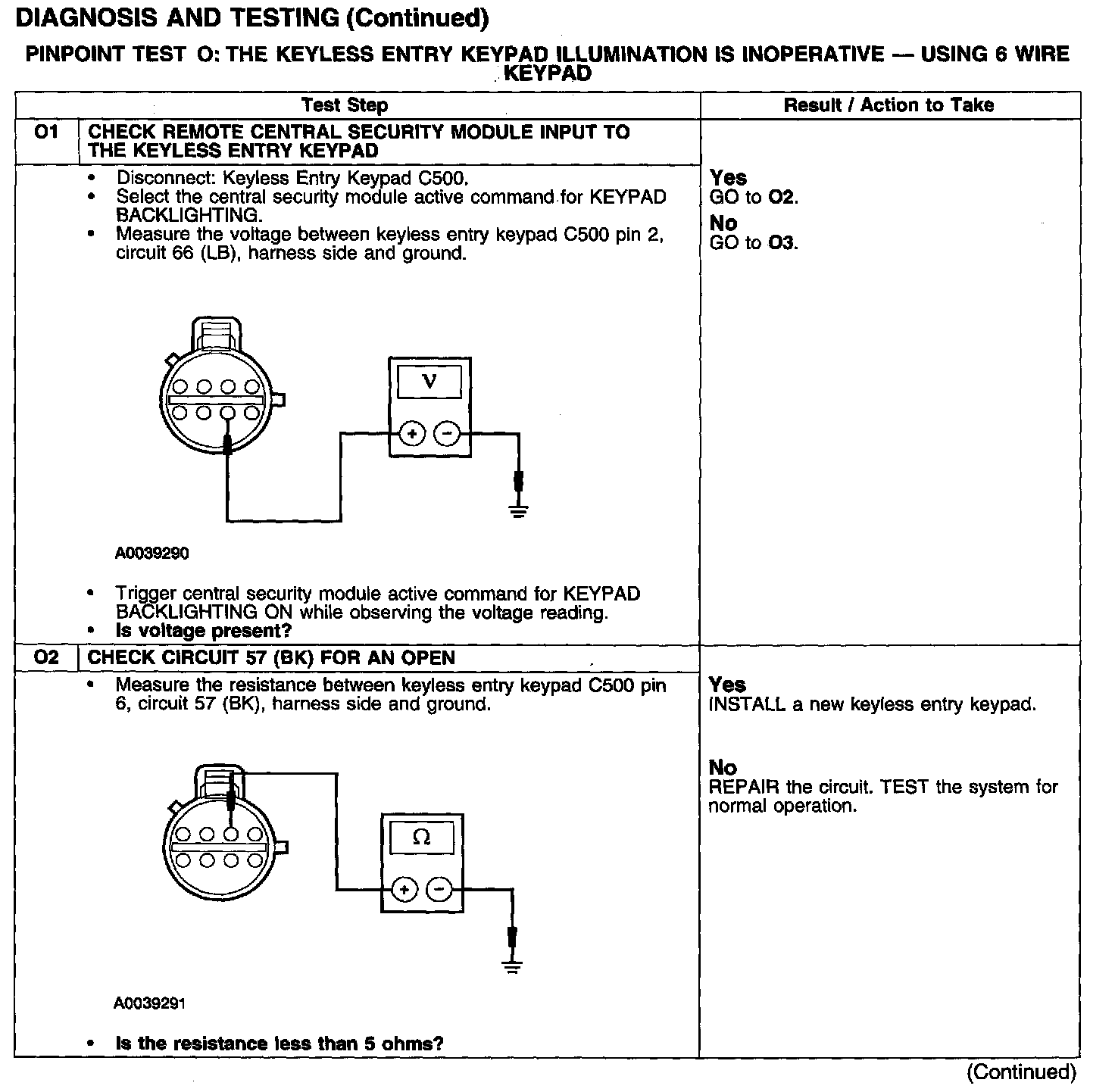

Test O1-O2:

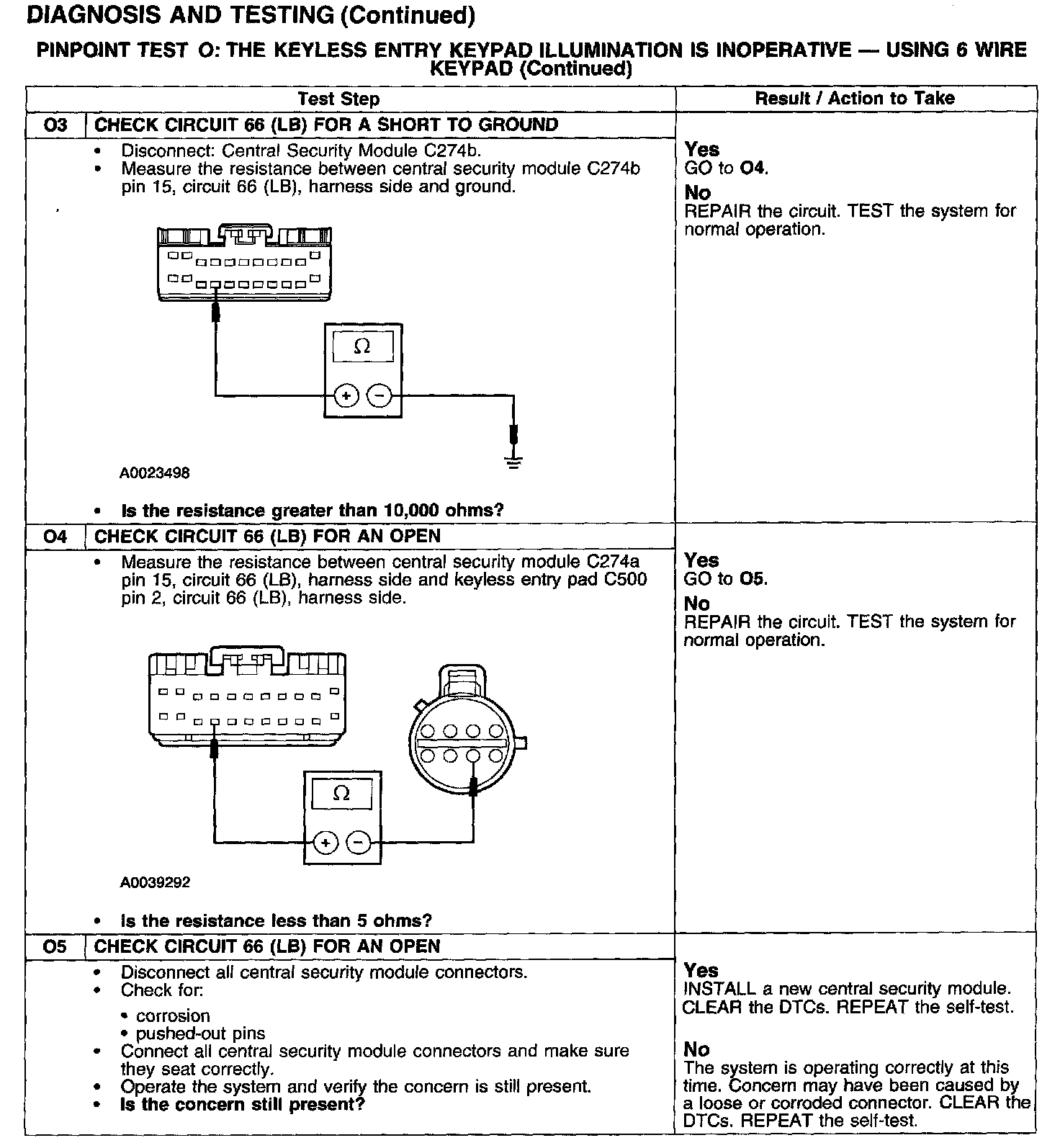

Test O3-O5:
