Test N
Test N
PINPOINT TEST N: THE
KEYLESS ENTRY
KEYPAD ILLUMINATION IS INOPERATIVE - USING 8 WIRE KEYPAD

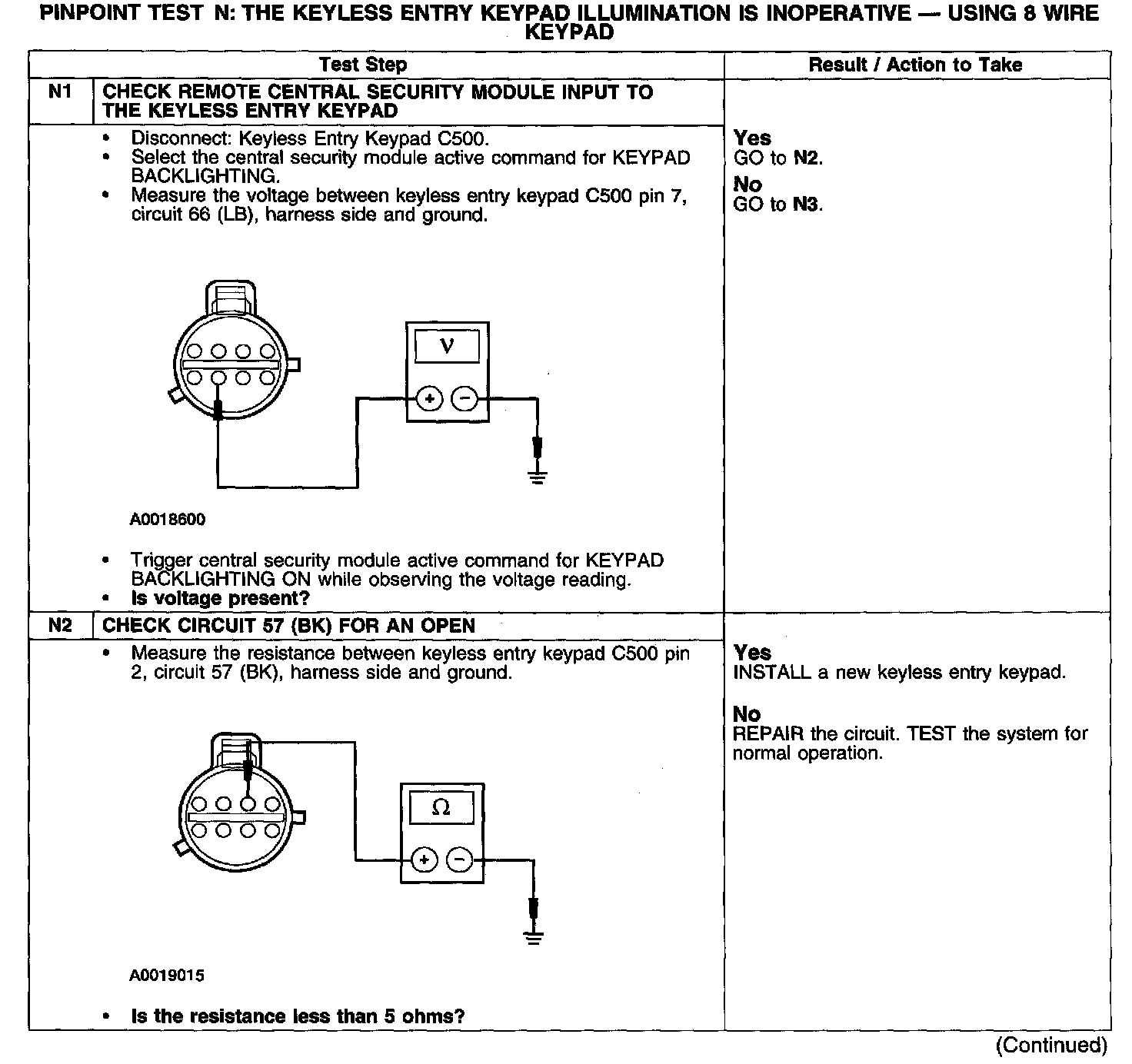

Test N1-N2:

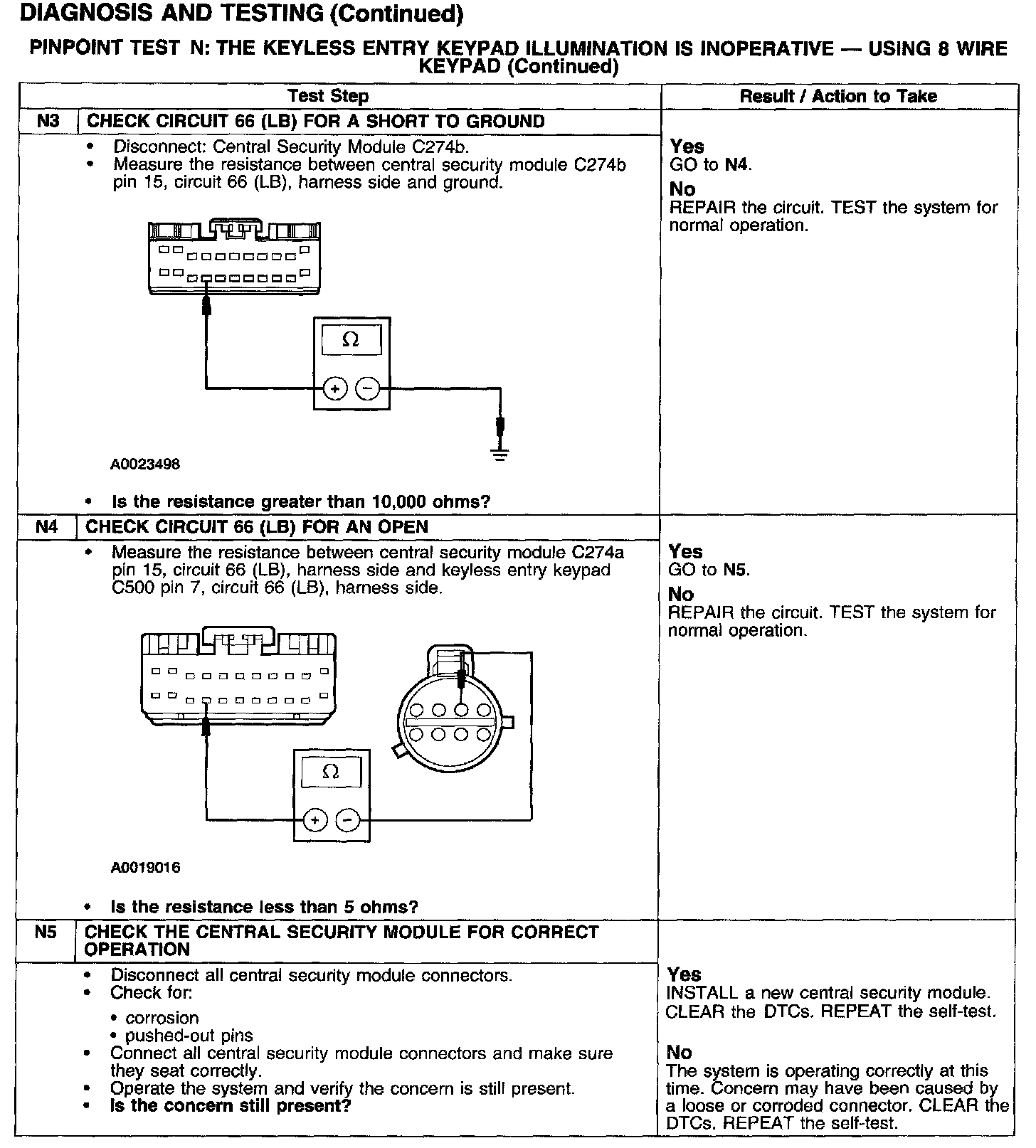

Test N3-N5:
