Test M

PINPOINT TEST M: PANIC FEATURE IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

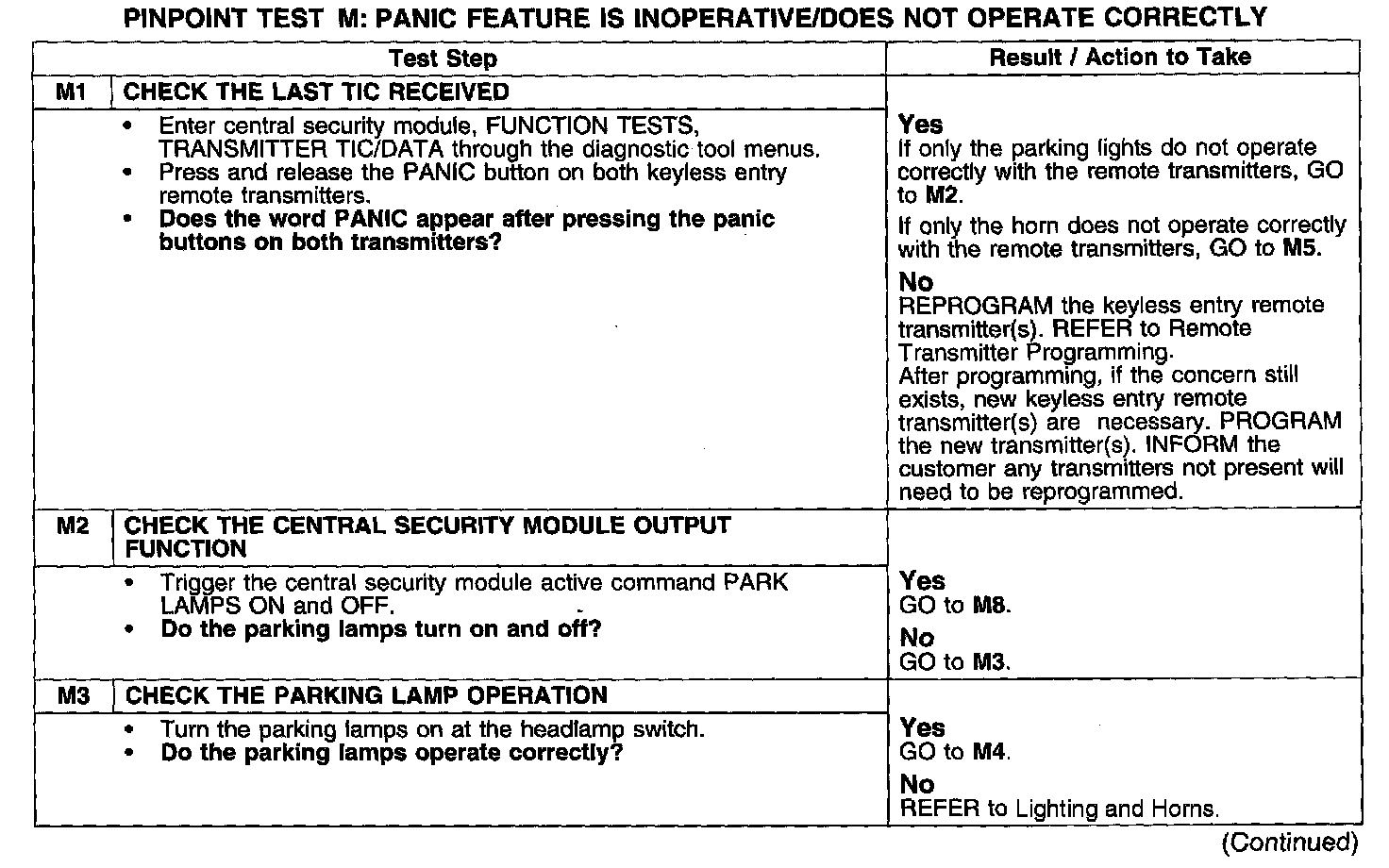

Test M1-M3:

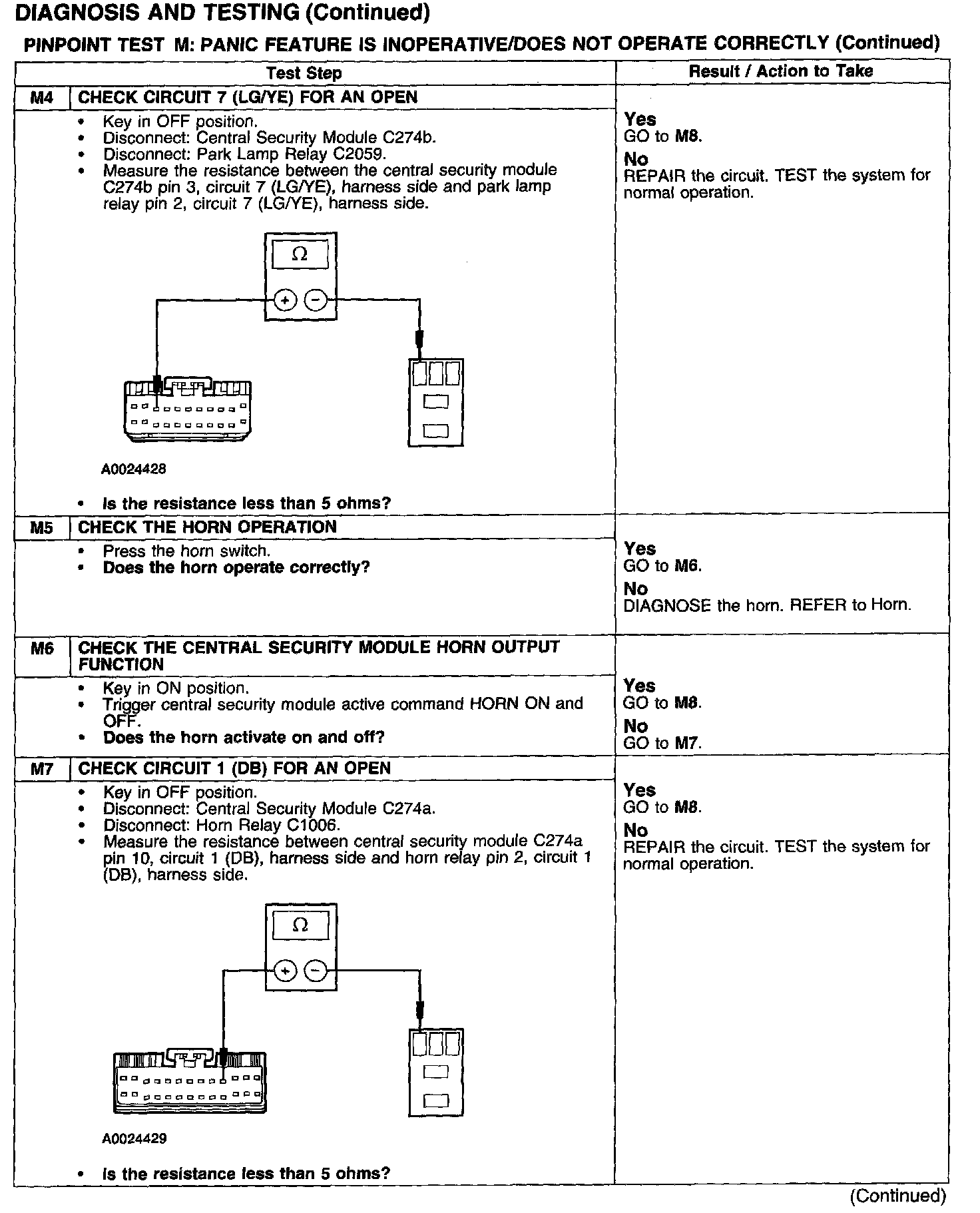

Test M4-M7:

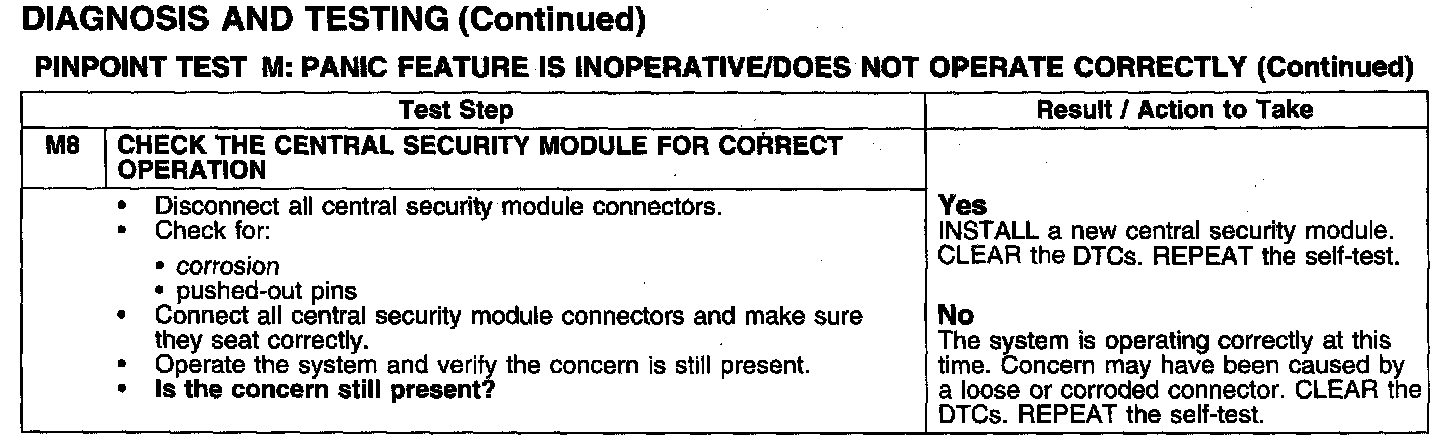

Test M8:
