Test I
Test I
PINPOINT TEST I: THE DOORS DO NOT LOCK/UNLOCK USING THE
KEYLESS ENTRY
KEYPAD - USING 8 WIRE KEYPAD

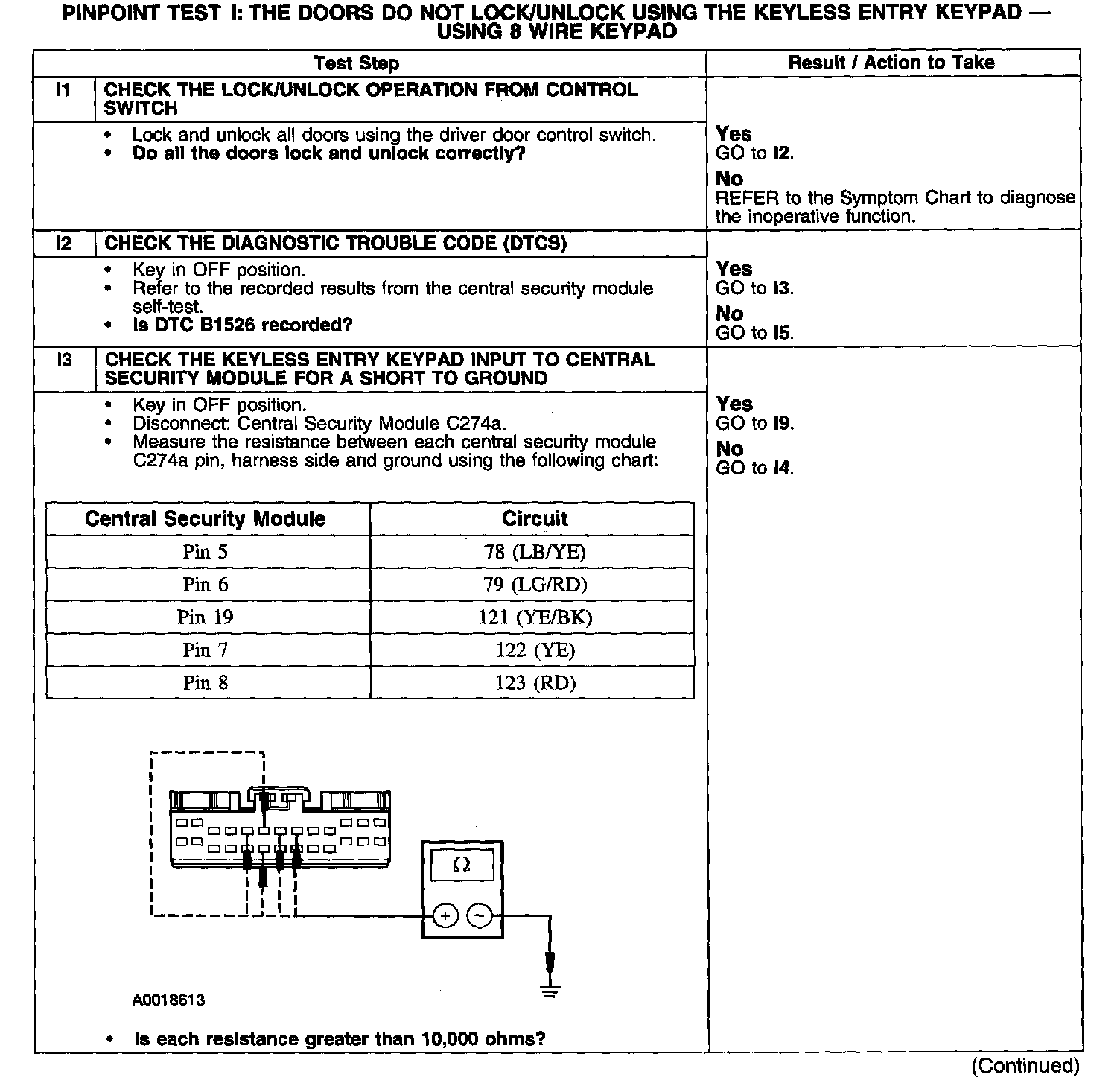

Test I1-I3:

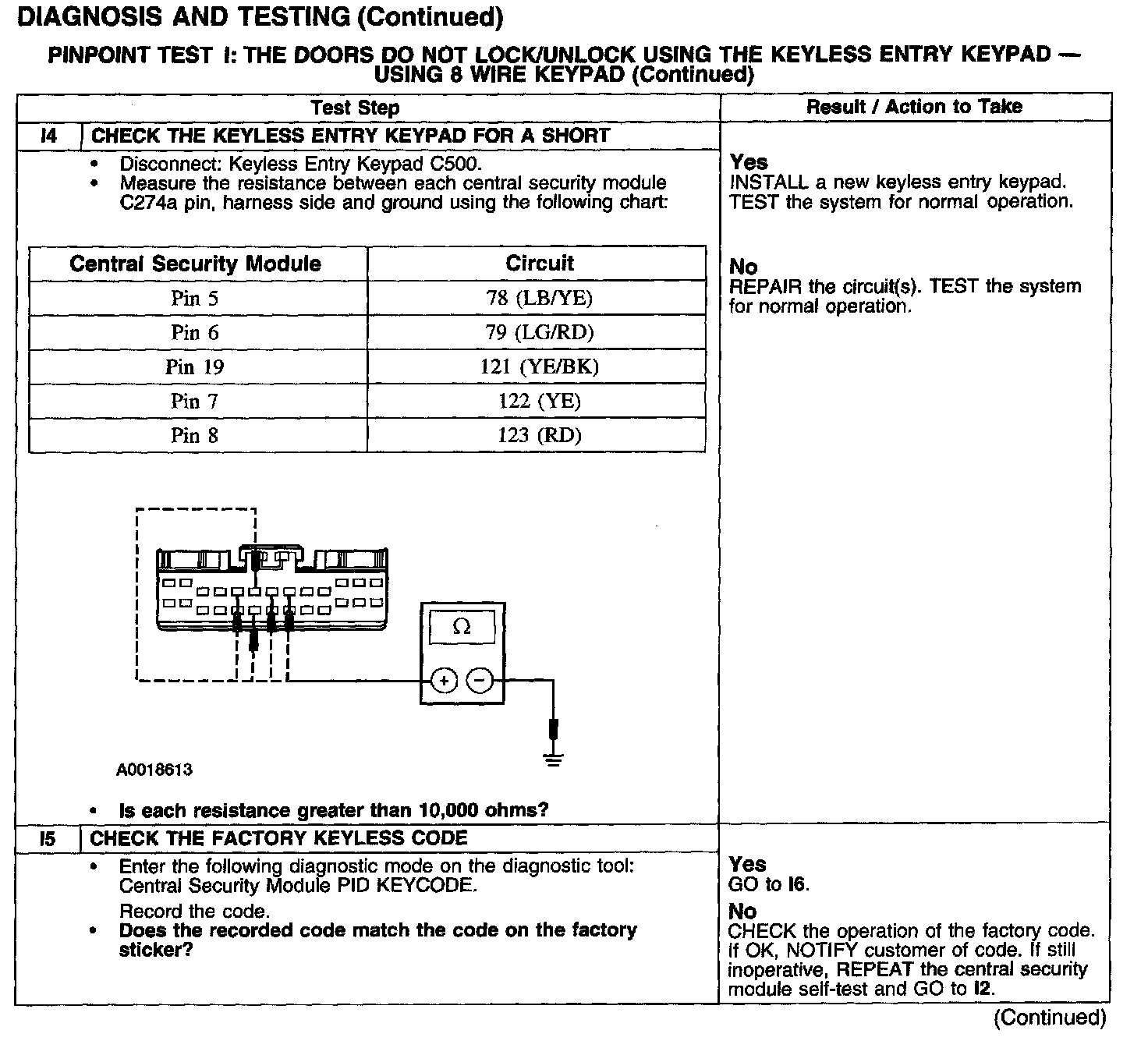

Test I4-I5:

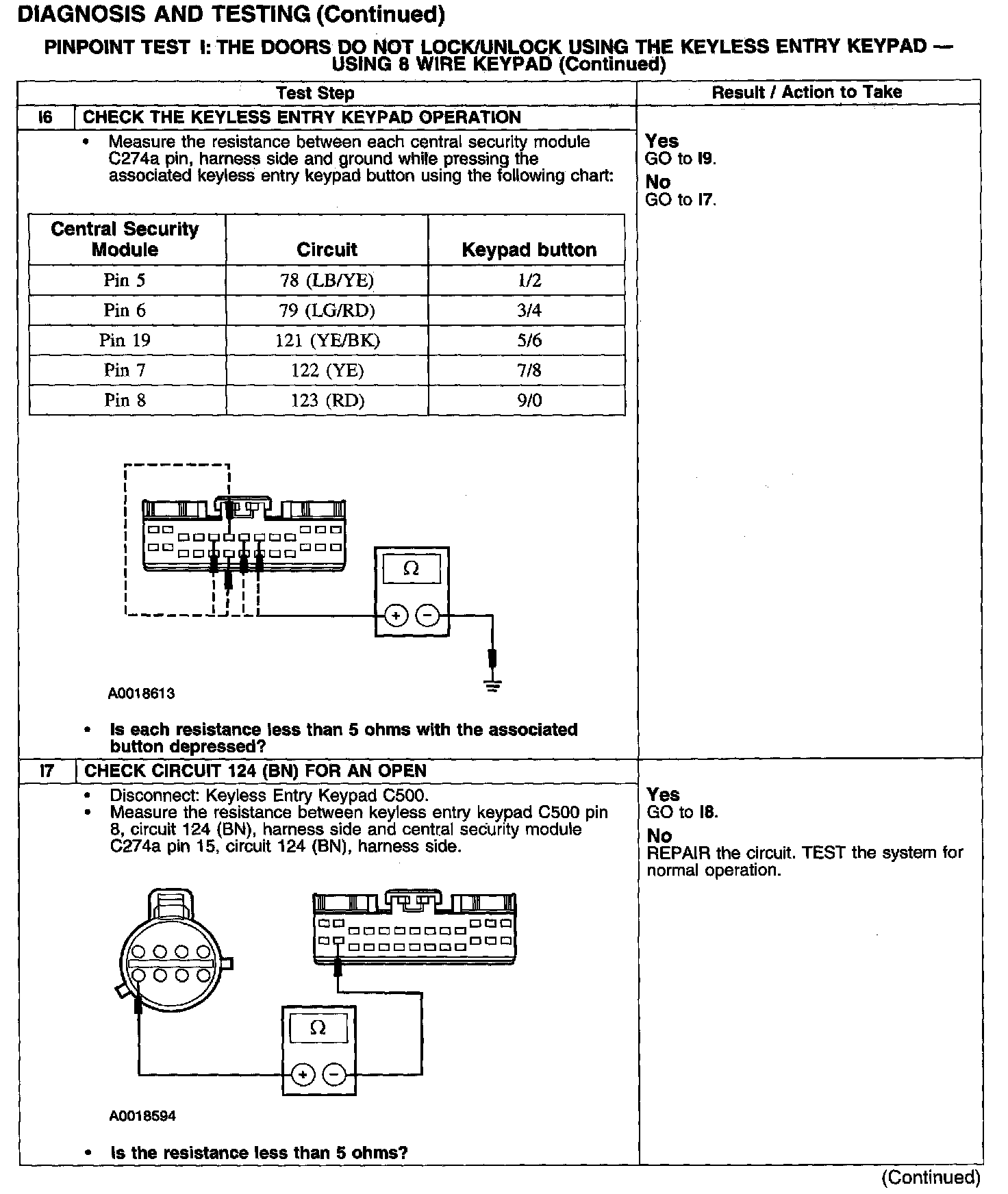

Test I6-I7:

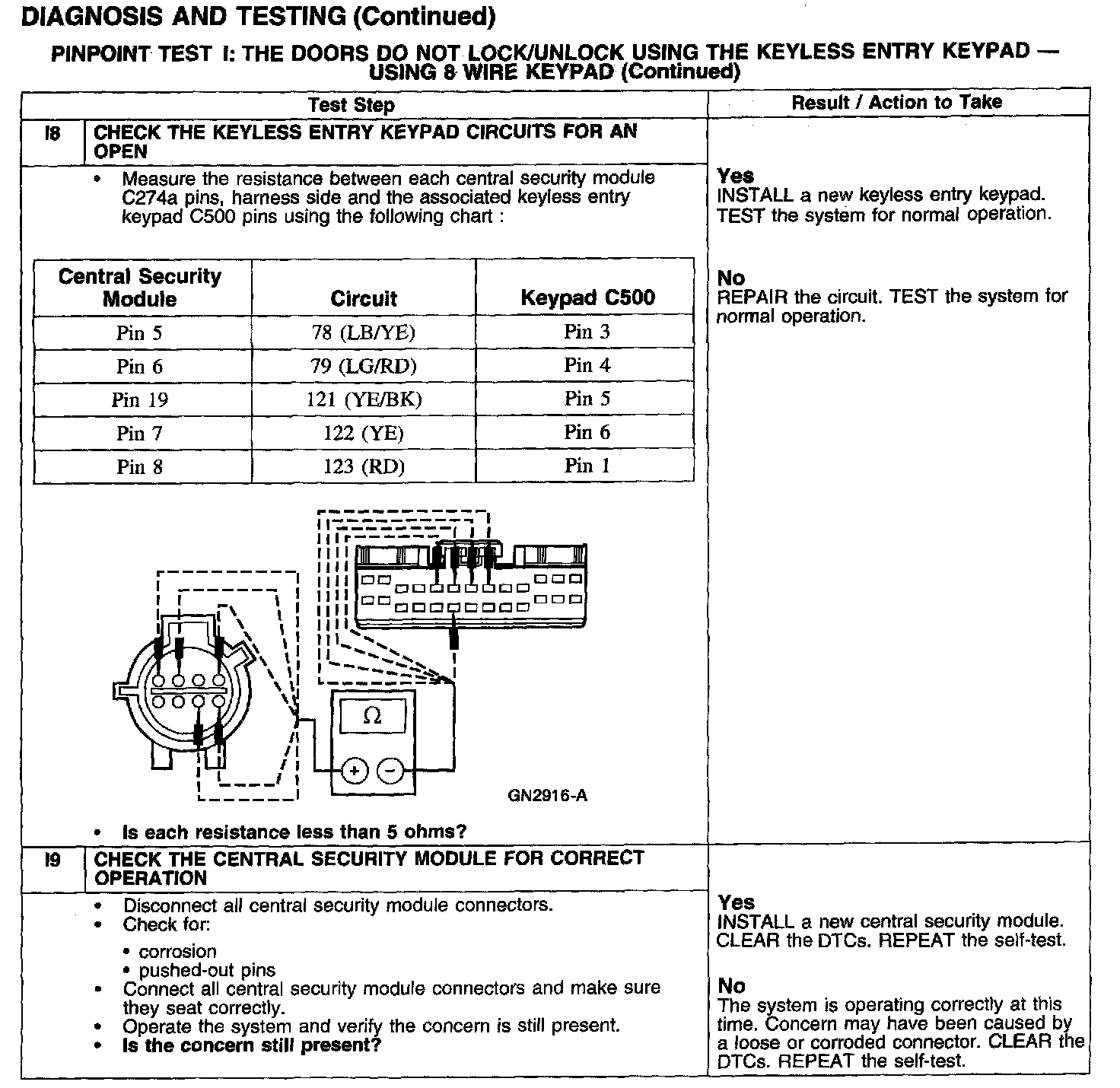

Test I8-I9:
