Keyless Entry Key-Pad: Service and Repair
KEYLESS ENTRY KEYPADREMOVAL
1. Remove the driver door trim panel.

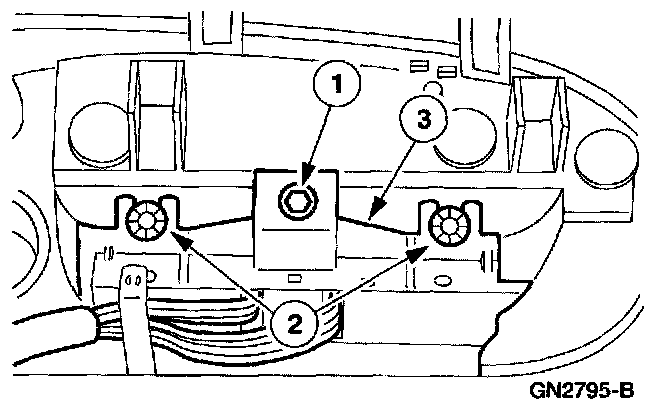

2. Remove the keyless entry keypad.
1 Remove the screw.
2 Remove the speed nuts.
3 Remove the keyless entry keypad.
- Disconnect the electrical connector.
INSTALLATION
1. To install, reverse the removal procedure.
