Coolant Temperature Sensor/Switch (For Computer): Service and Repair

REMOVAL

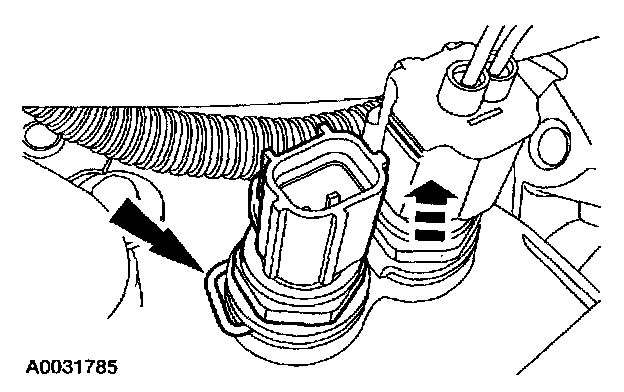

1. Disconnect the Engine Coolant Temperature (ECT) sensor electrical connector.

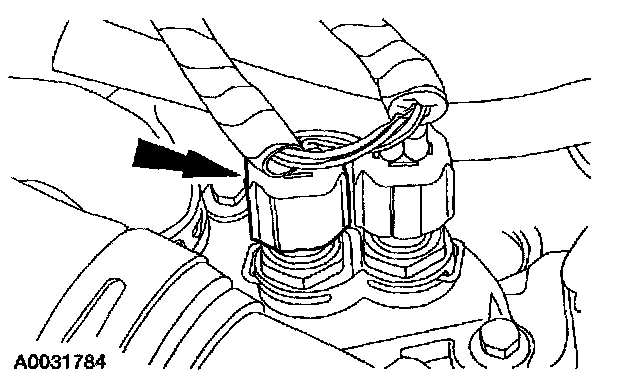

2. Remove the retaining clip and the ECT sensor.

INSTALLATION
1. To install, reverse the removal procedure.
