LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
2003
>>
Explorer Sport 2WD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Module Controlled
>>
Test H
Test H
PINPOINT TEST H: ALL DOOR LOCKS ARE INOPERATIVE

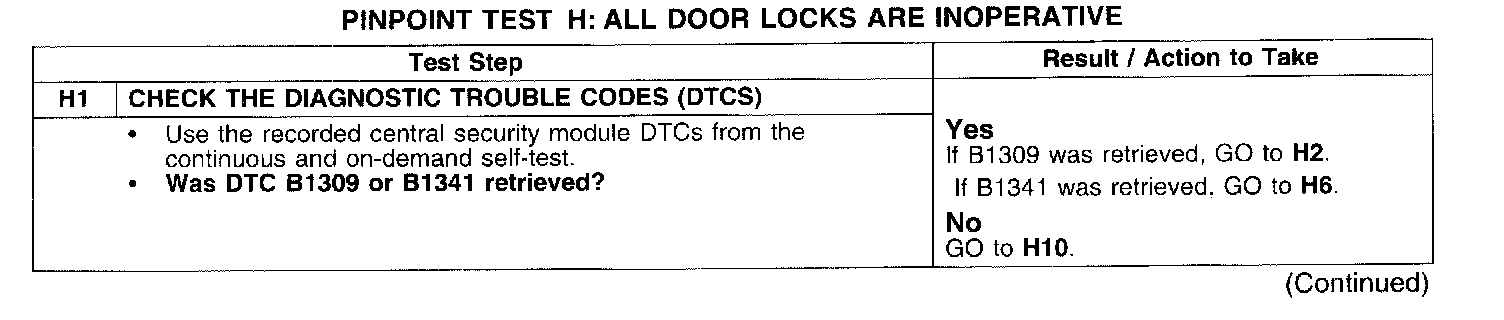

Test H1:

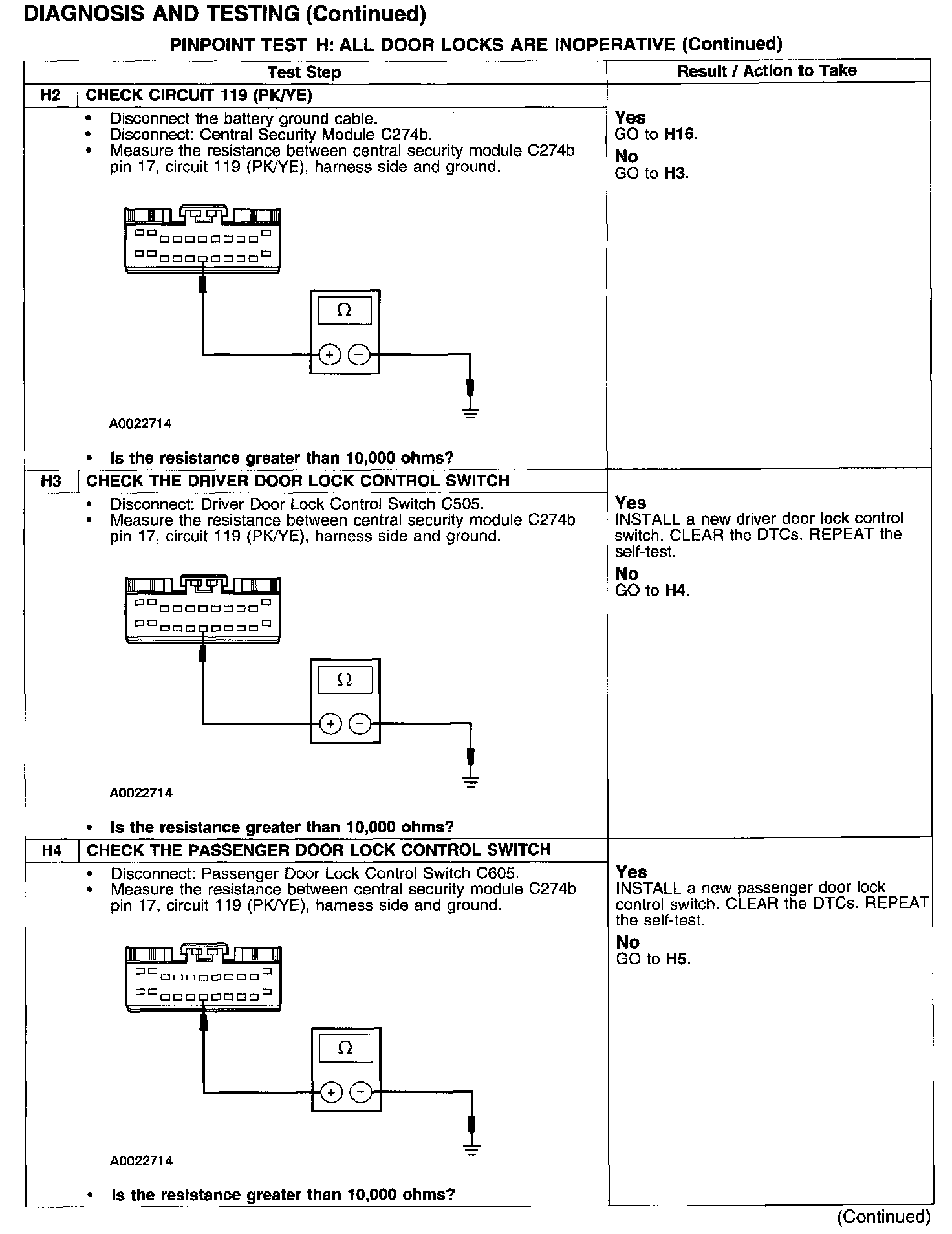

Test H2-H4:

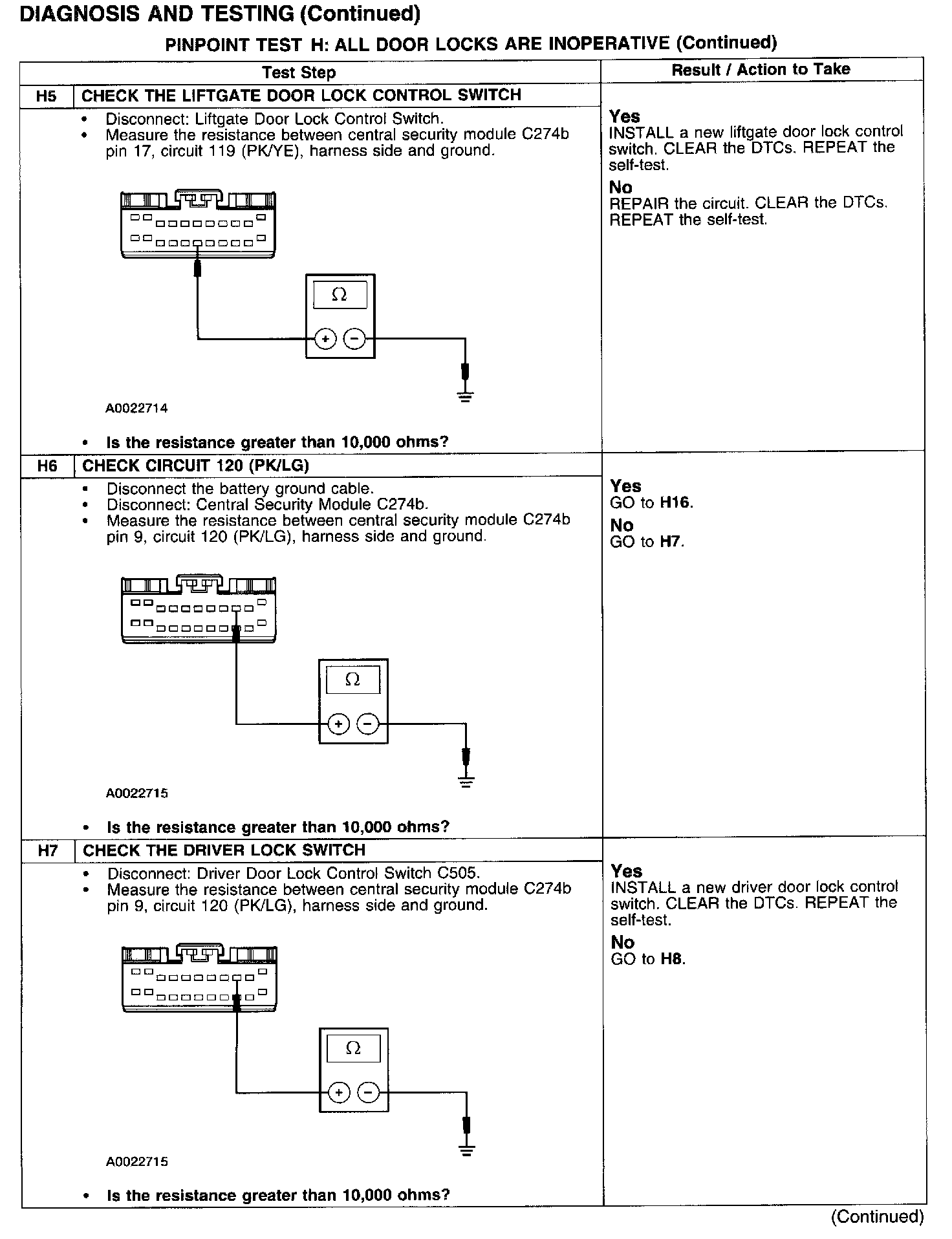

Test H5-H7:

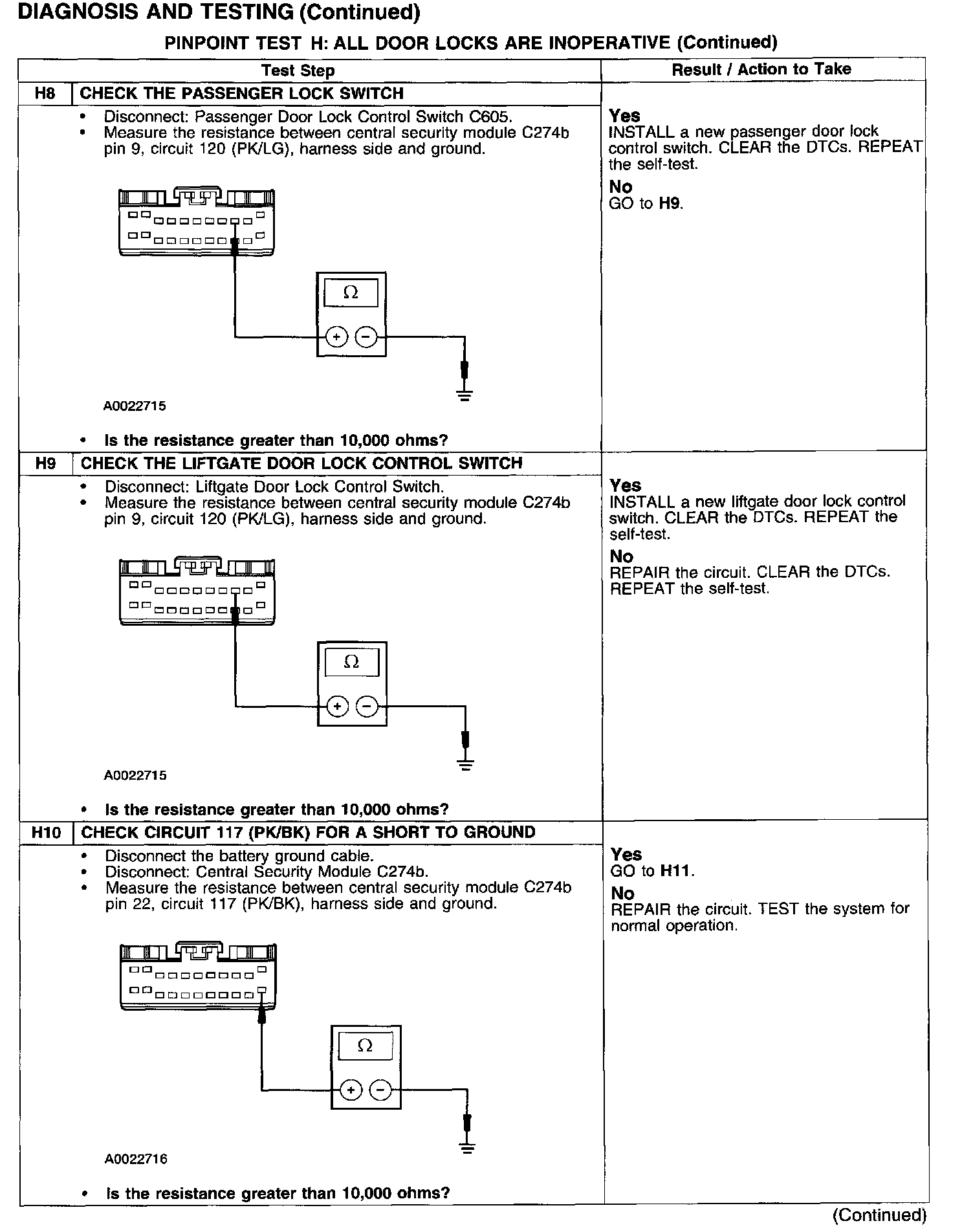

Test H8-H10:

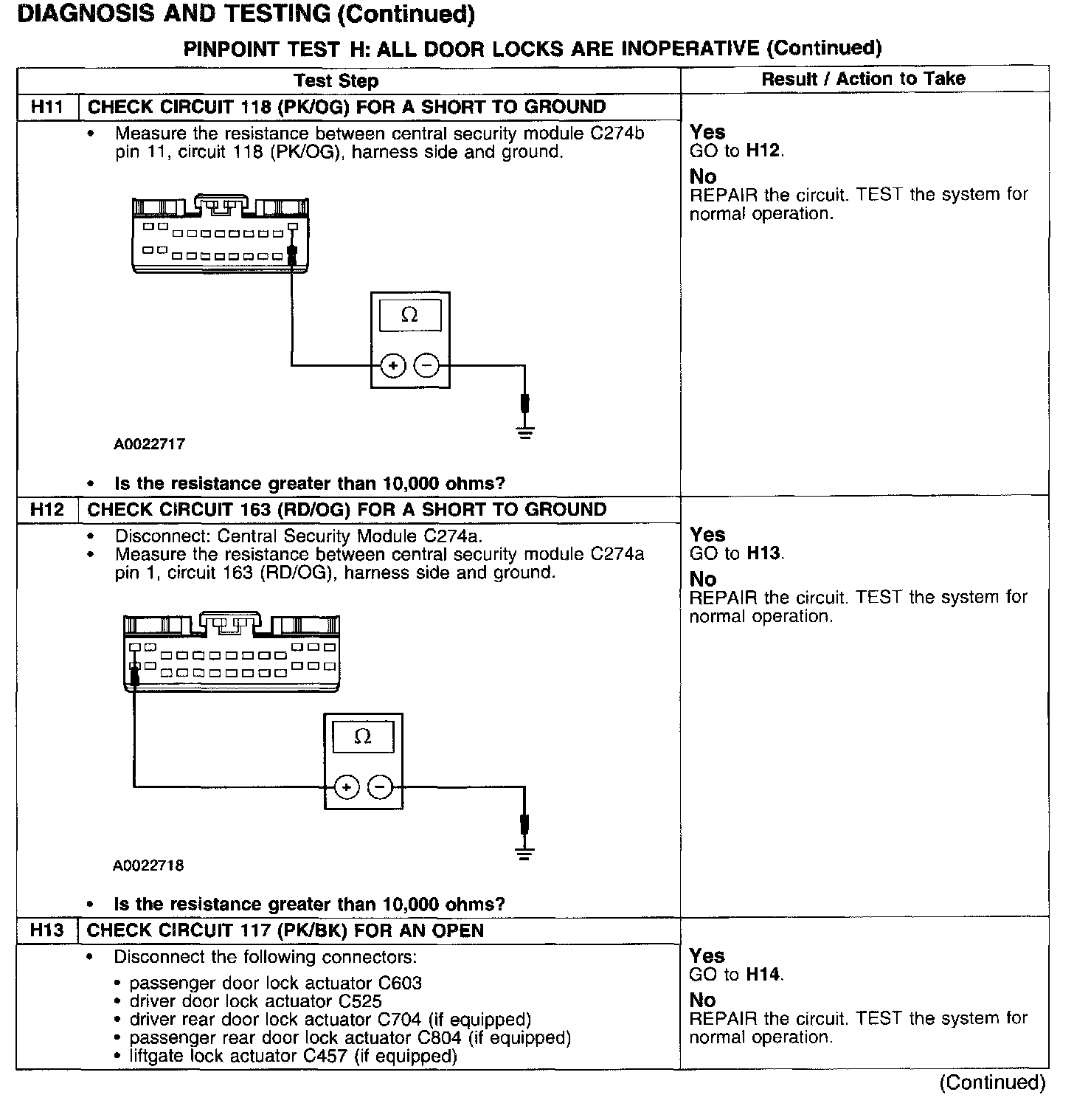

Test H11-H13:

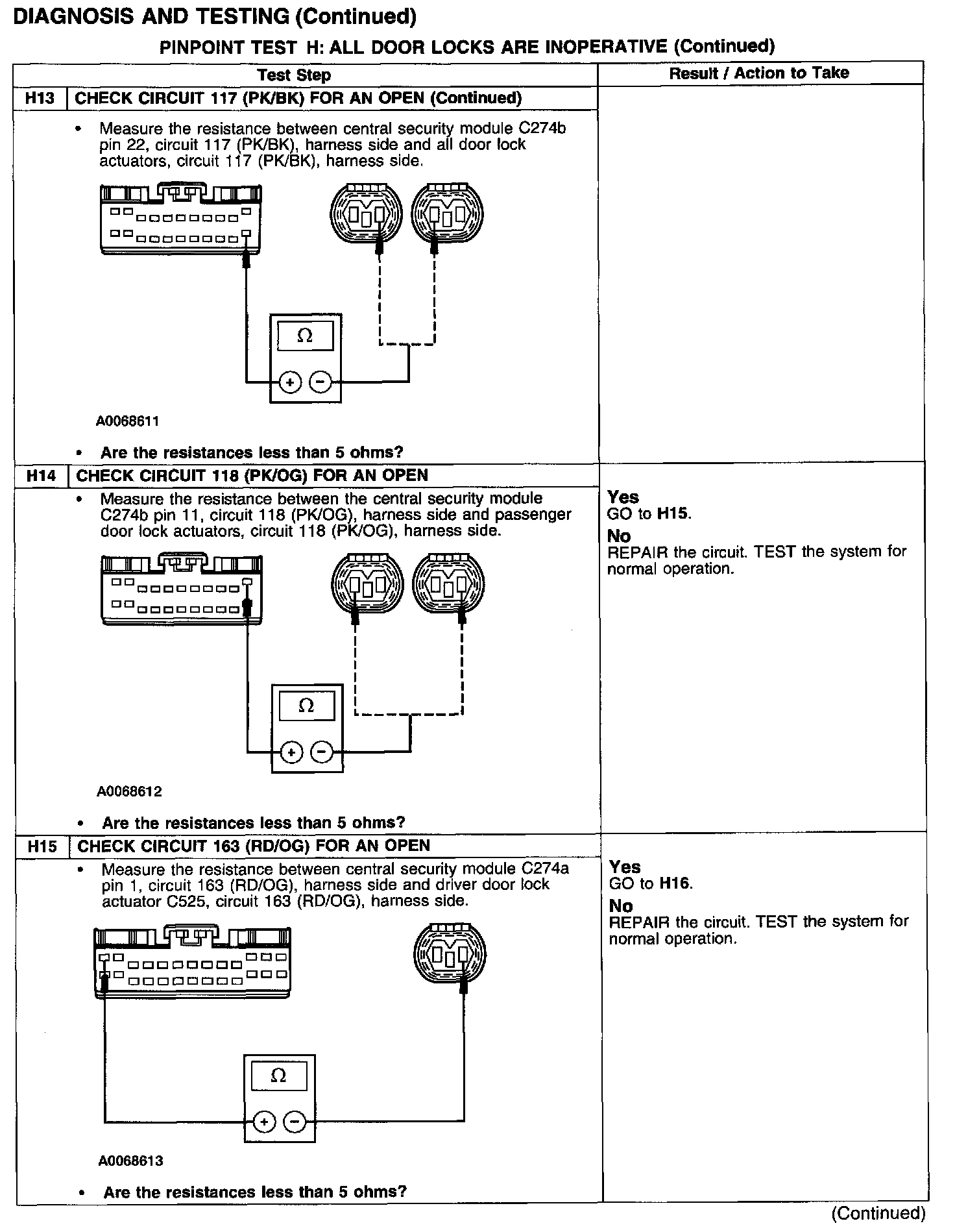

Test H13-H15:

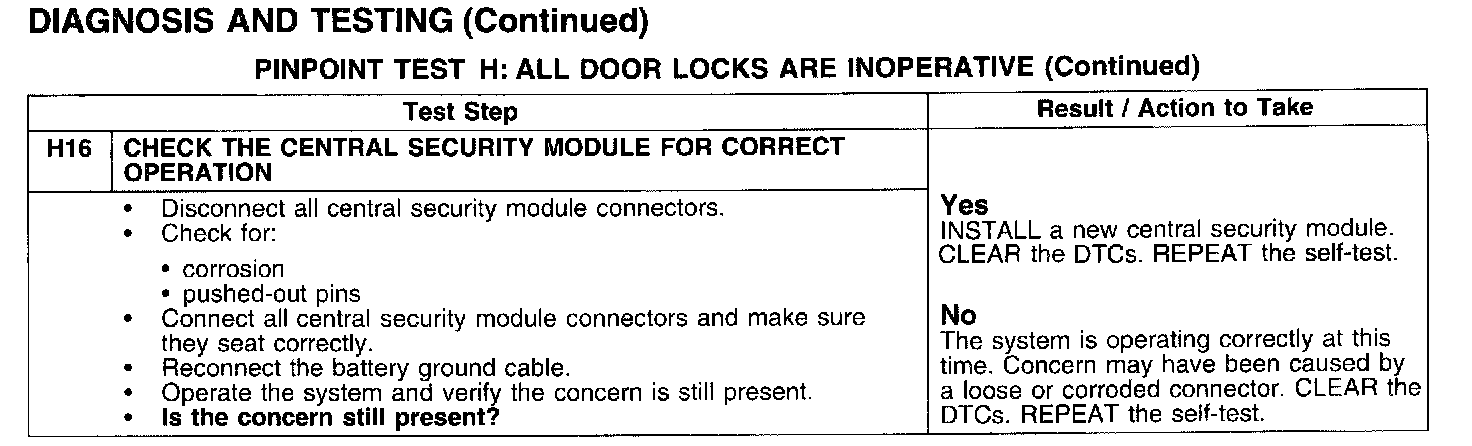

Test H16:
