Keyless Entry Key-Pad: Service and Repair

KEYLESS ENTRY KEYPAD

REMOVAL
1. Remove the front door speaker.

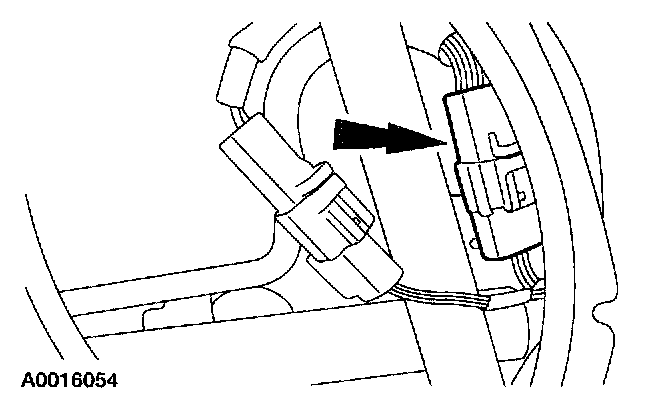

2. Disconnect the keyless entry electrical connector.

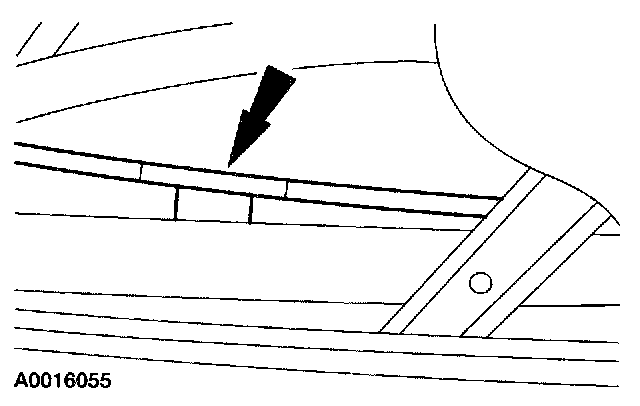

3. Remove the two wiring harness locators.

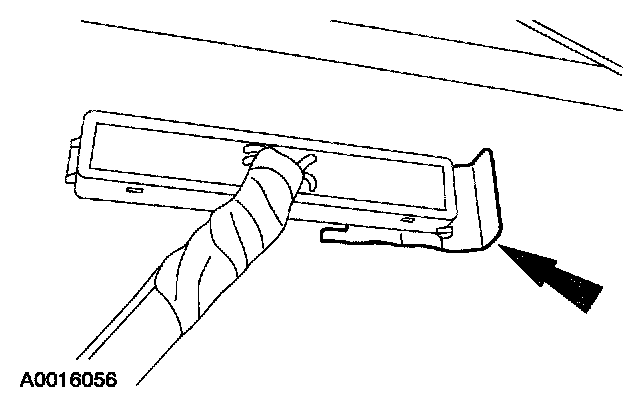

4. Release the retaining clip.

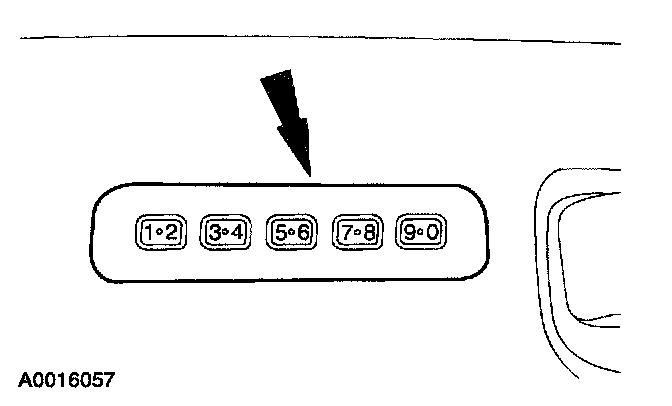

5. Remove the keyless entry keypad.

INSTALLATION
1. To install, reverse the removal procedure.
