Test H

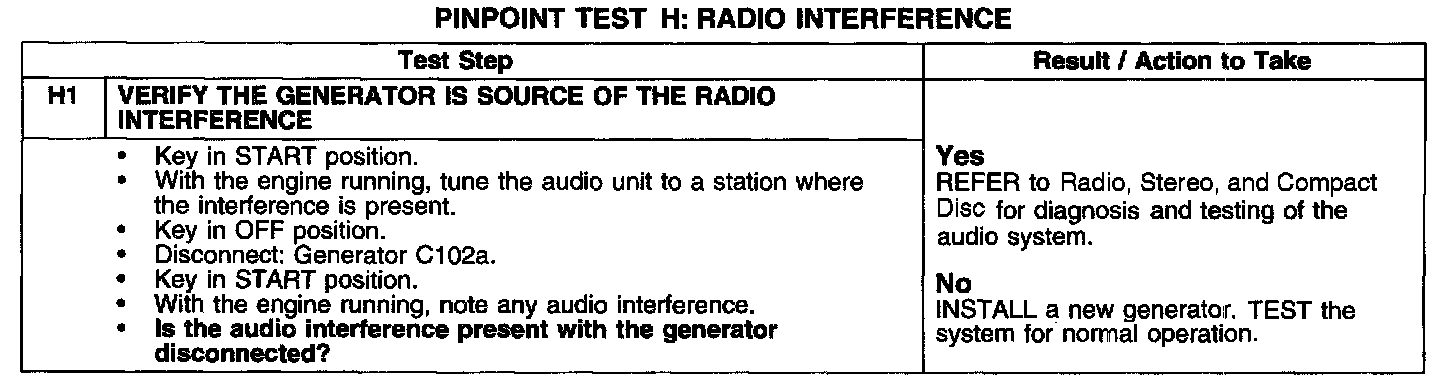

PINPOINT TEST H: RADIO INTERFERENCE


Test H1:






Normal Operation
The generator radio suppression equipment reduces interference transmitted through the radio speakers by the vehicle electrical system.

Possible Causes
- generator
- entertainment system
