Test G

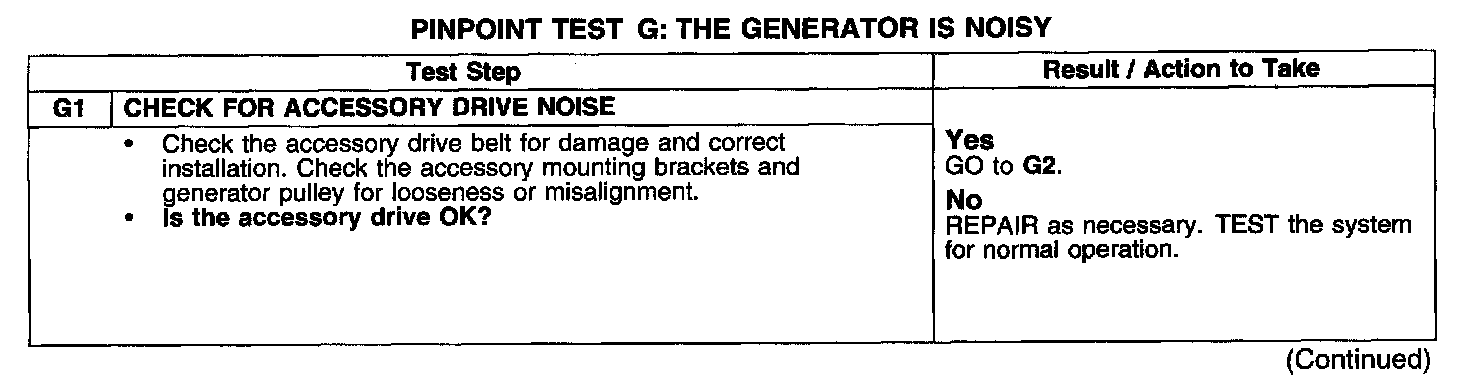

PINPOINT TEST G: THE GENERATOR IS NOISYTest G1:

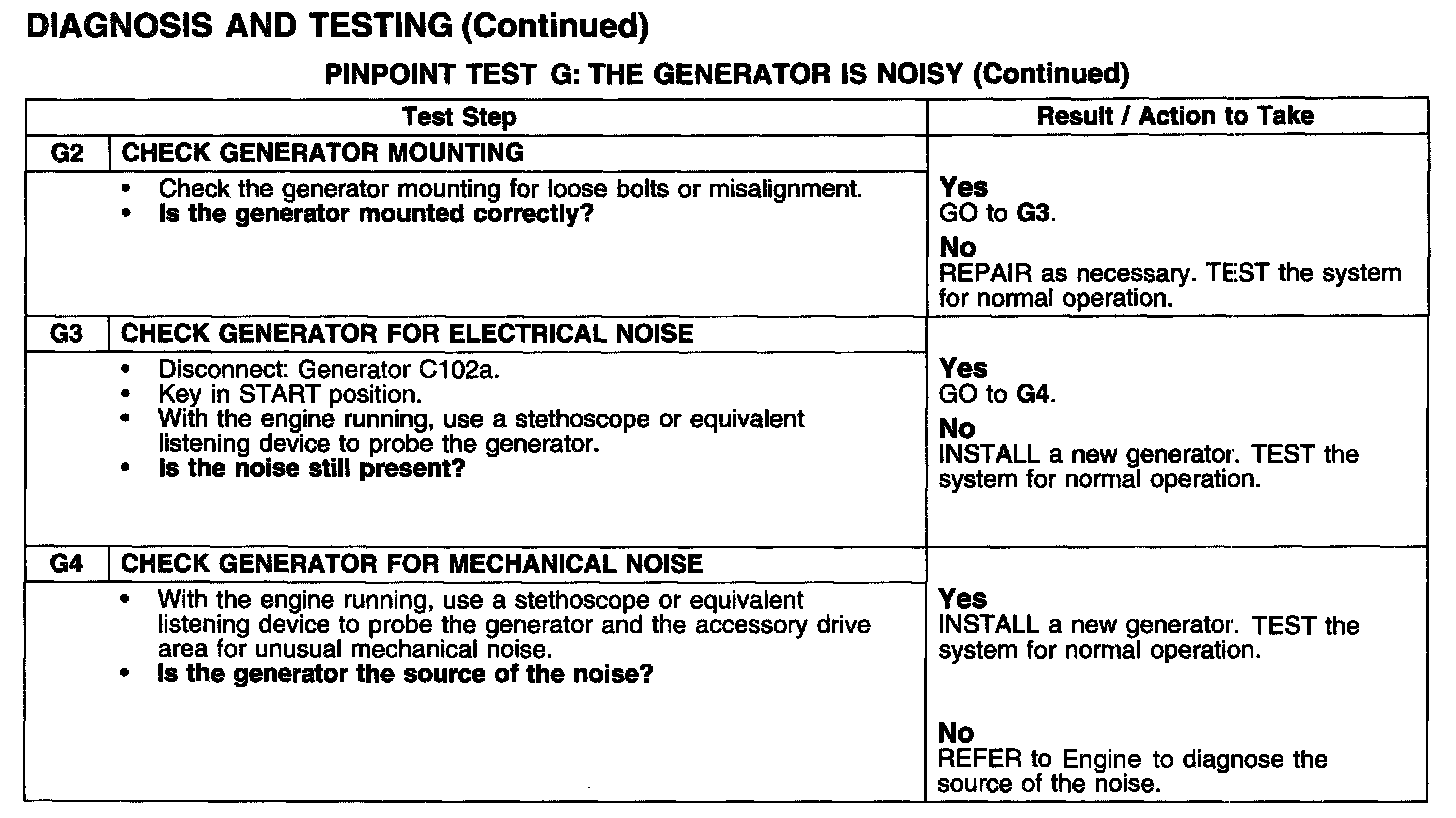

Test G2-G4:
Normal Operation
The generator is belt-driven by the engine accessory drive system.
Possible Causes
- accessory drive belt
- generator mounting
- generator
Normal Operation
The generator is belt-driven by the engine accessory drive system.
Possible Causes
- accessory drive belt
- generator mounting
- generator
