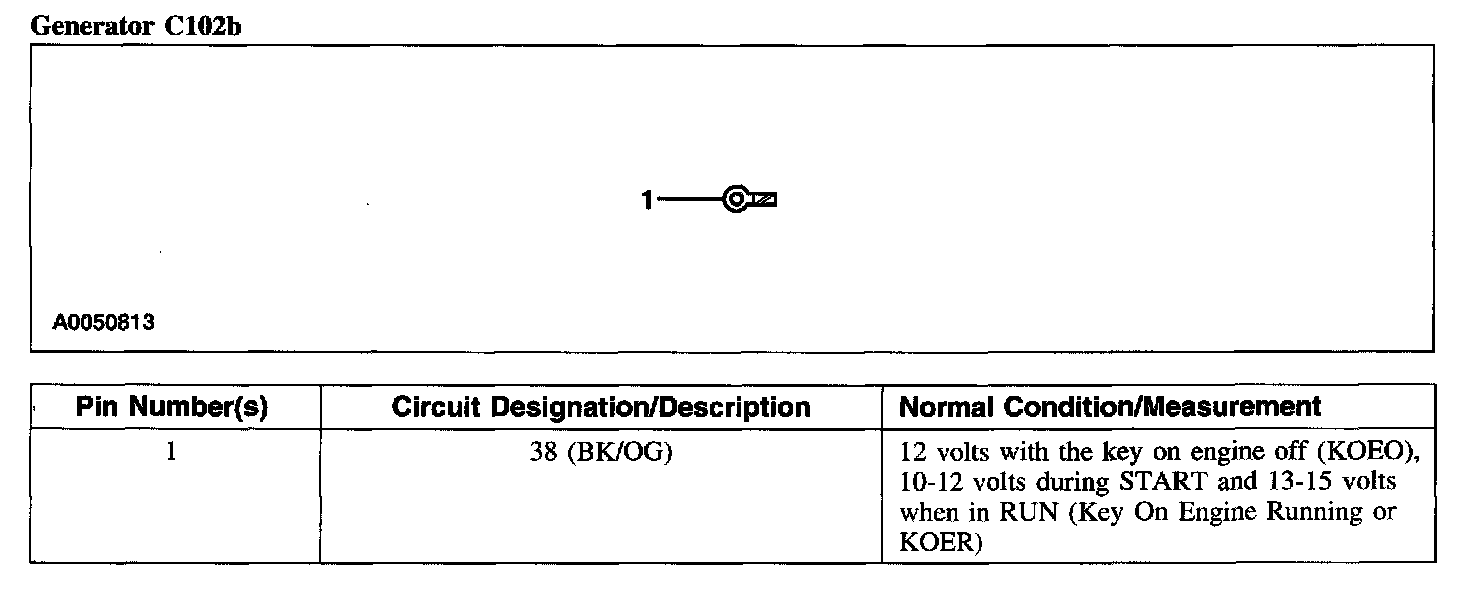

Home >> Ford >> 2003 >> Explorer AWD V8-4.6L VIN W >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Generator C102b
