Pinpoint Tests

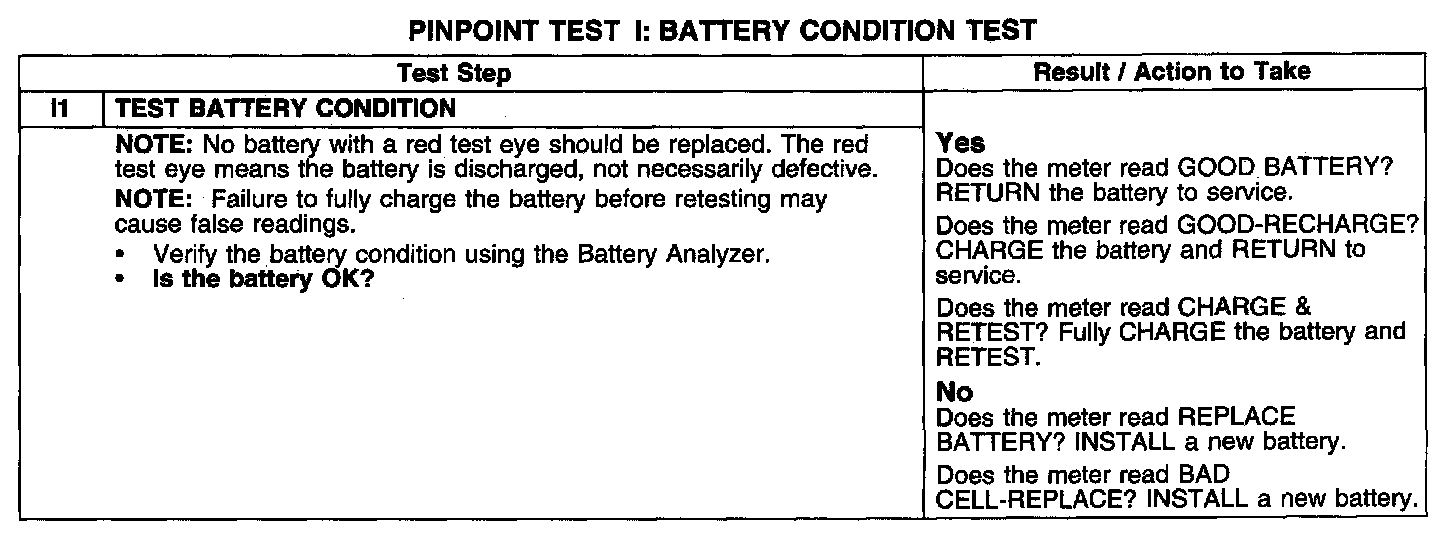

PINPOINT TEST I: BATTERY CONDITION TEST

Test I1:

Normal Operation
Battery condition is determined by measuring battery terminal voltage after a specific discharge current is applied for a specified time period.

Possible Causes
- battery charge
- battery
