Home >> Ford >> 2003 >> Explorer AWD V8-4.6L VIN W >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Communications Network

Communications Network

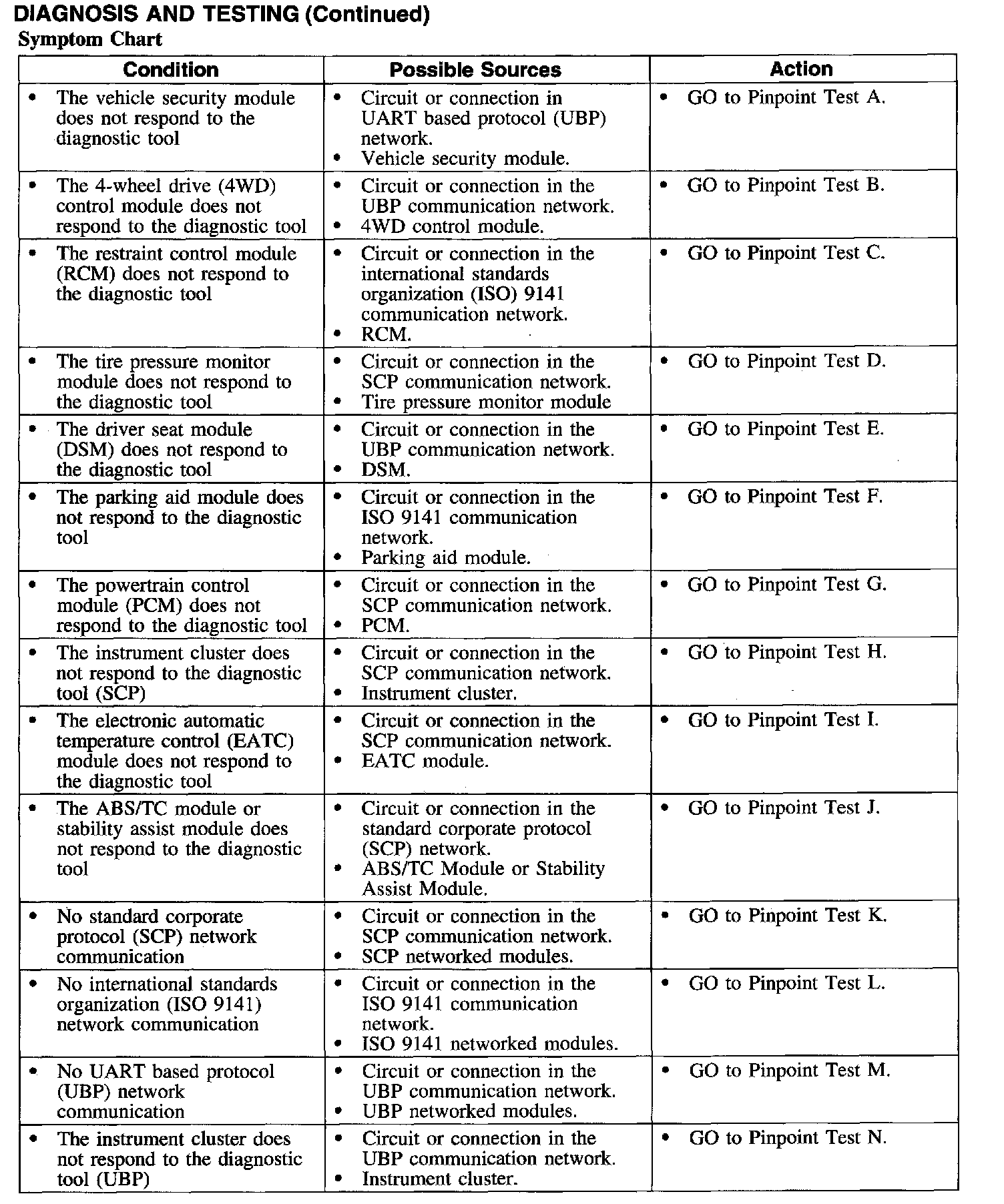

Symptom Chart, Part 1:

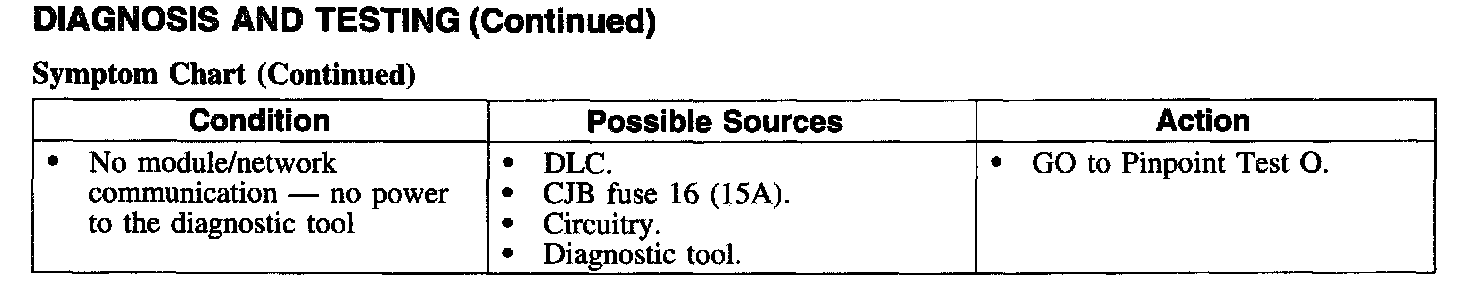

Symptom Chart, Part 2:
