Fluid - Transfer Case: Service and Repair

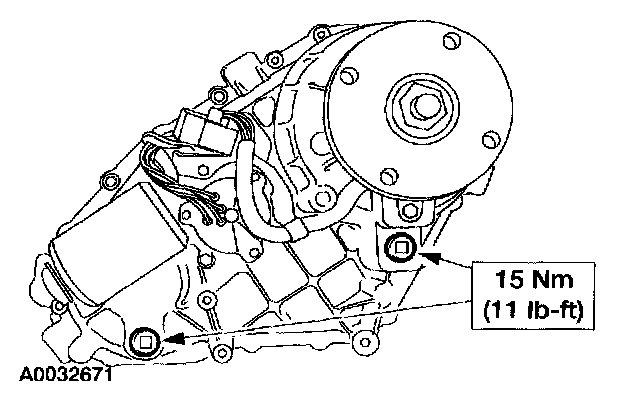

Transfer Case Draining and Filling





1. CAUTION: Transfer case failure can result if the correct fill procedures are not followed.

NOTE: The fluid level must be just below the fill plug.

Remove the fill plug and check the fluid level.
^ If the fluid is below the proper level, fill the transfer case with automatic transmission fluid.
