Drive Belt: Service and Repair

Accessory Drive Belt, Tensioner and Pulley

Removal and Installation
1. Remove the engine cooling fan.

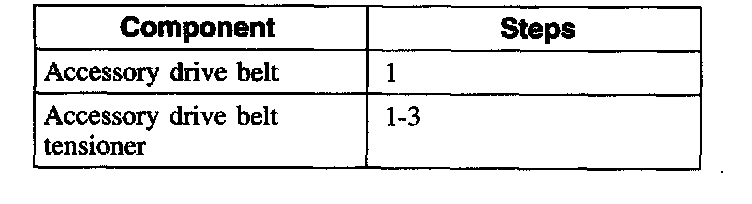

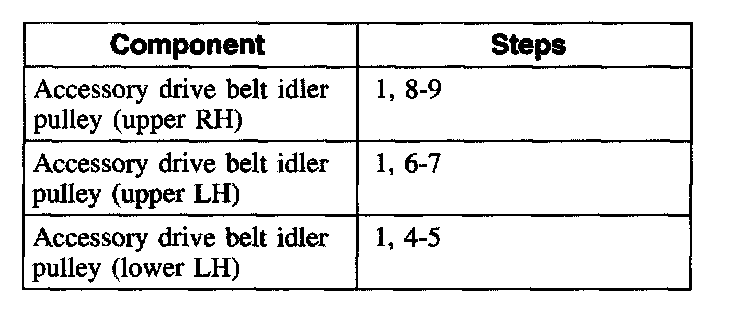

2. To remove individual components, carry out only the listed steps.

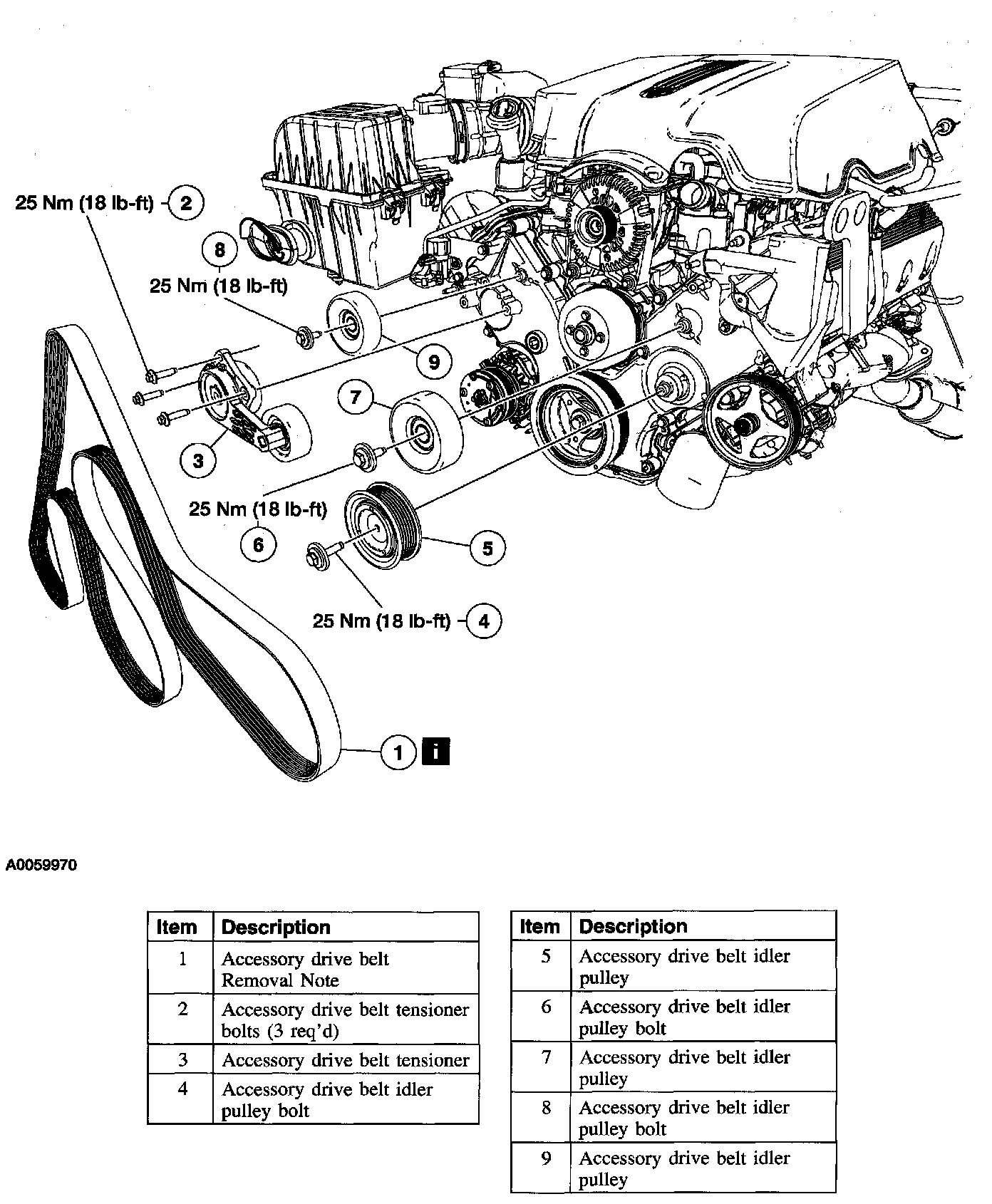

3. Remove the components in the order indicated.





4. To install, reverse the removal procedure.

Item 1: Accessory Drive Belt Removal Note

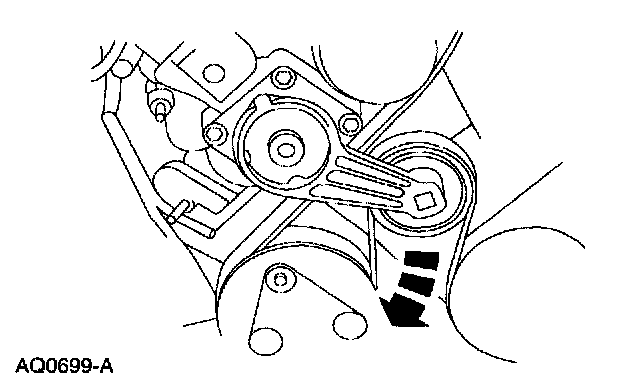

1. Rotate the tensioner clockwise and remove the drive belt.
