Ford
>>
2003
>>
Explorer AWD V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
Splice Locations

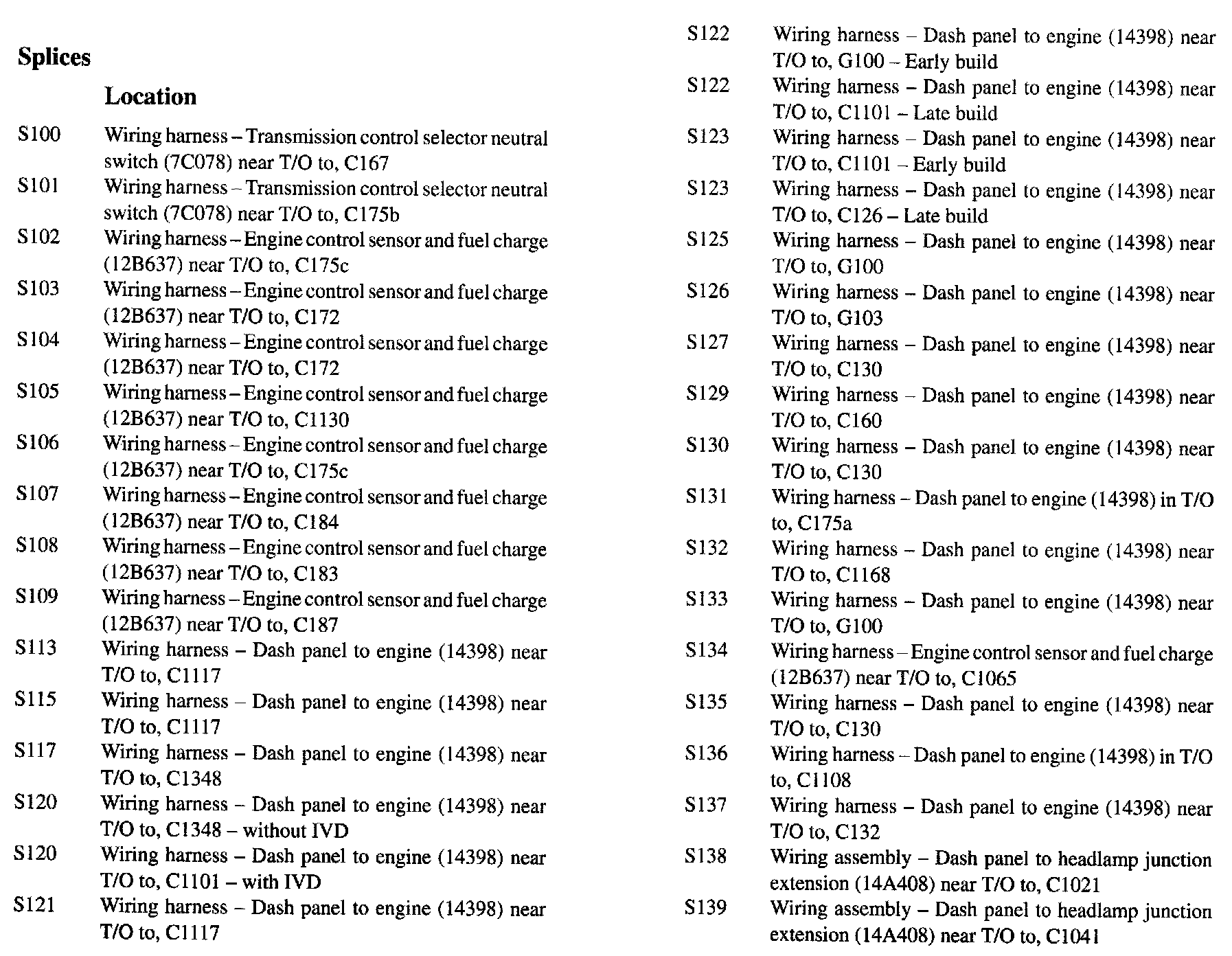

S100 - S139:

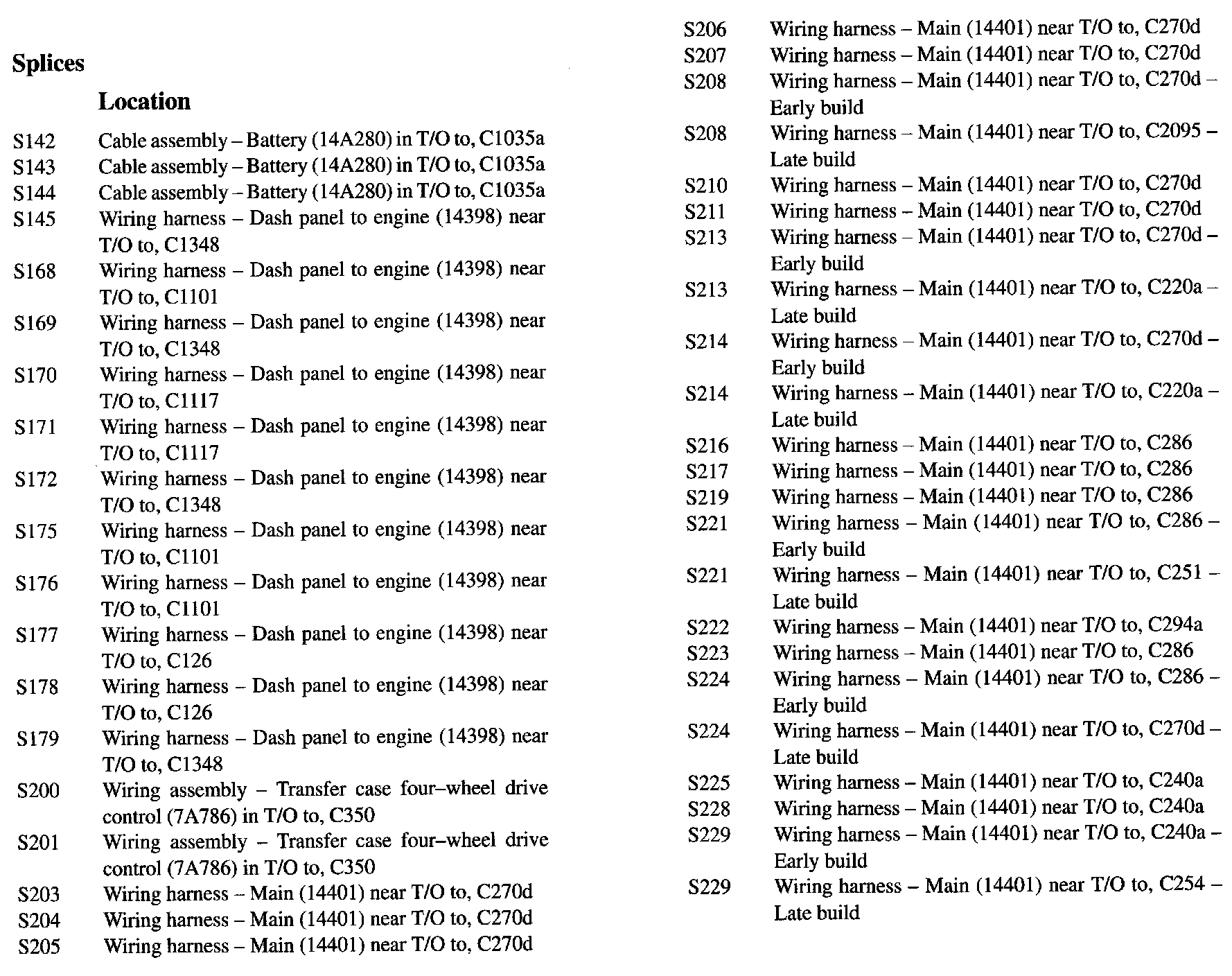

S142 - S229:

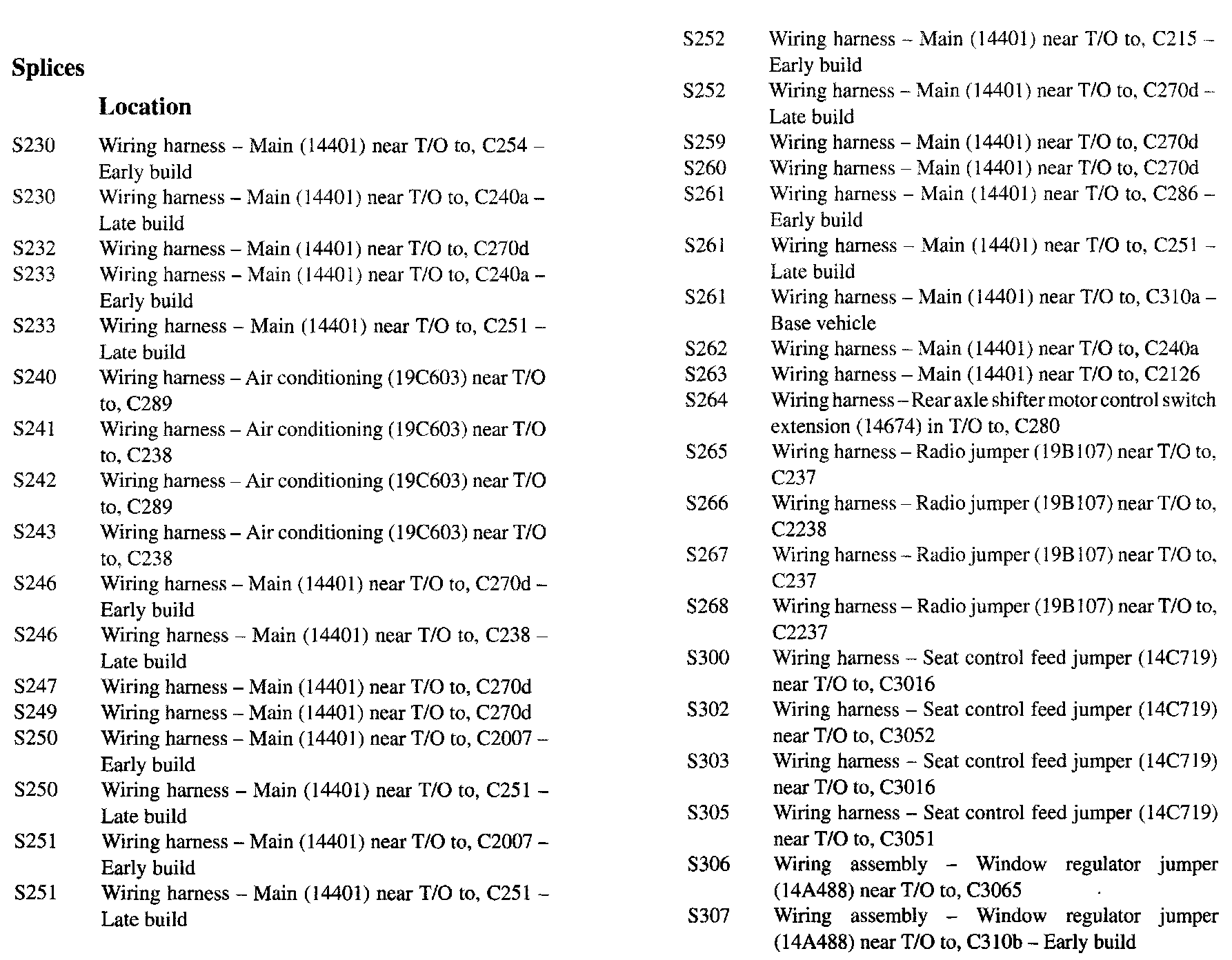

S230 - S307:

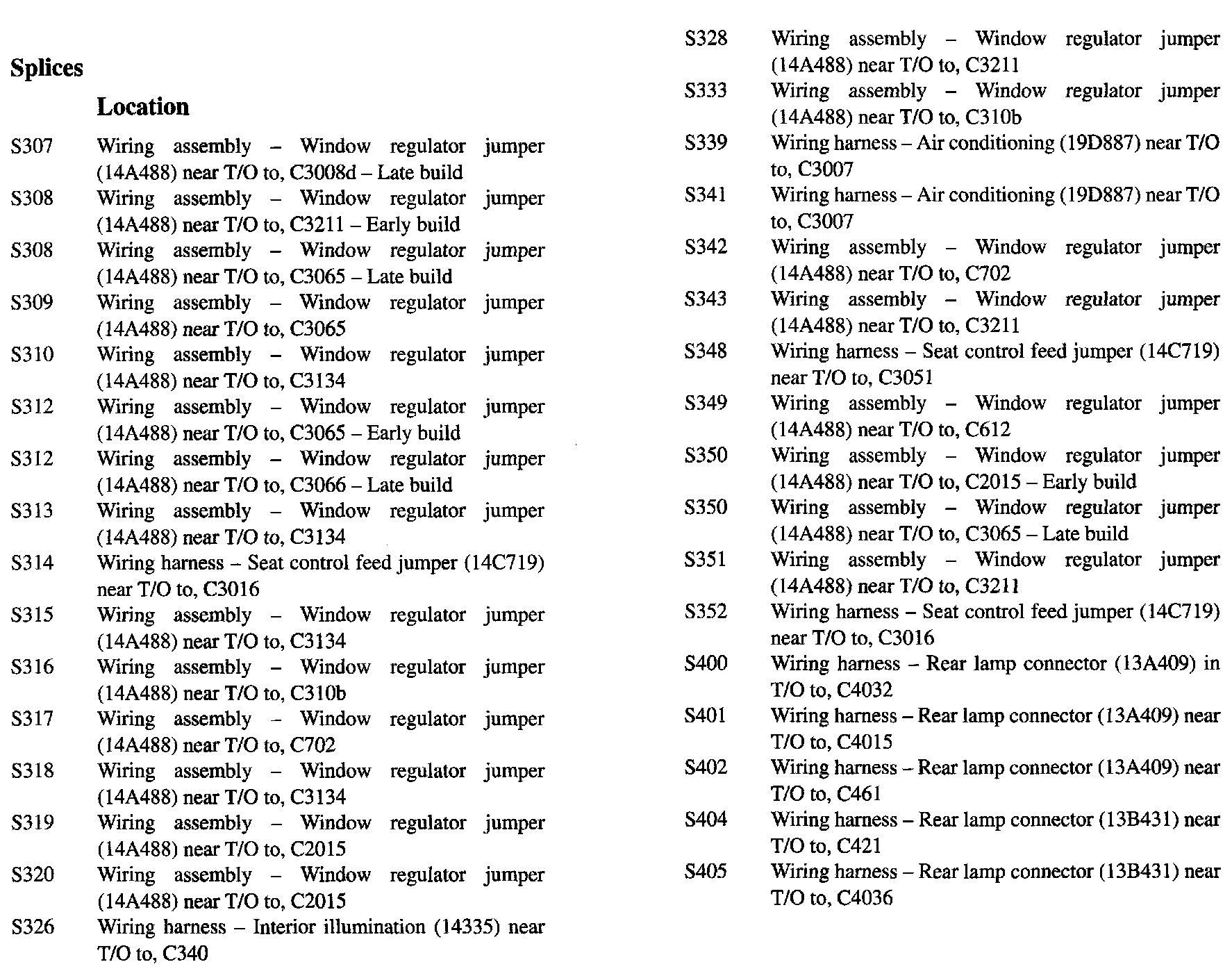

S307 - S405:

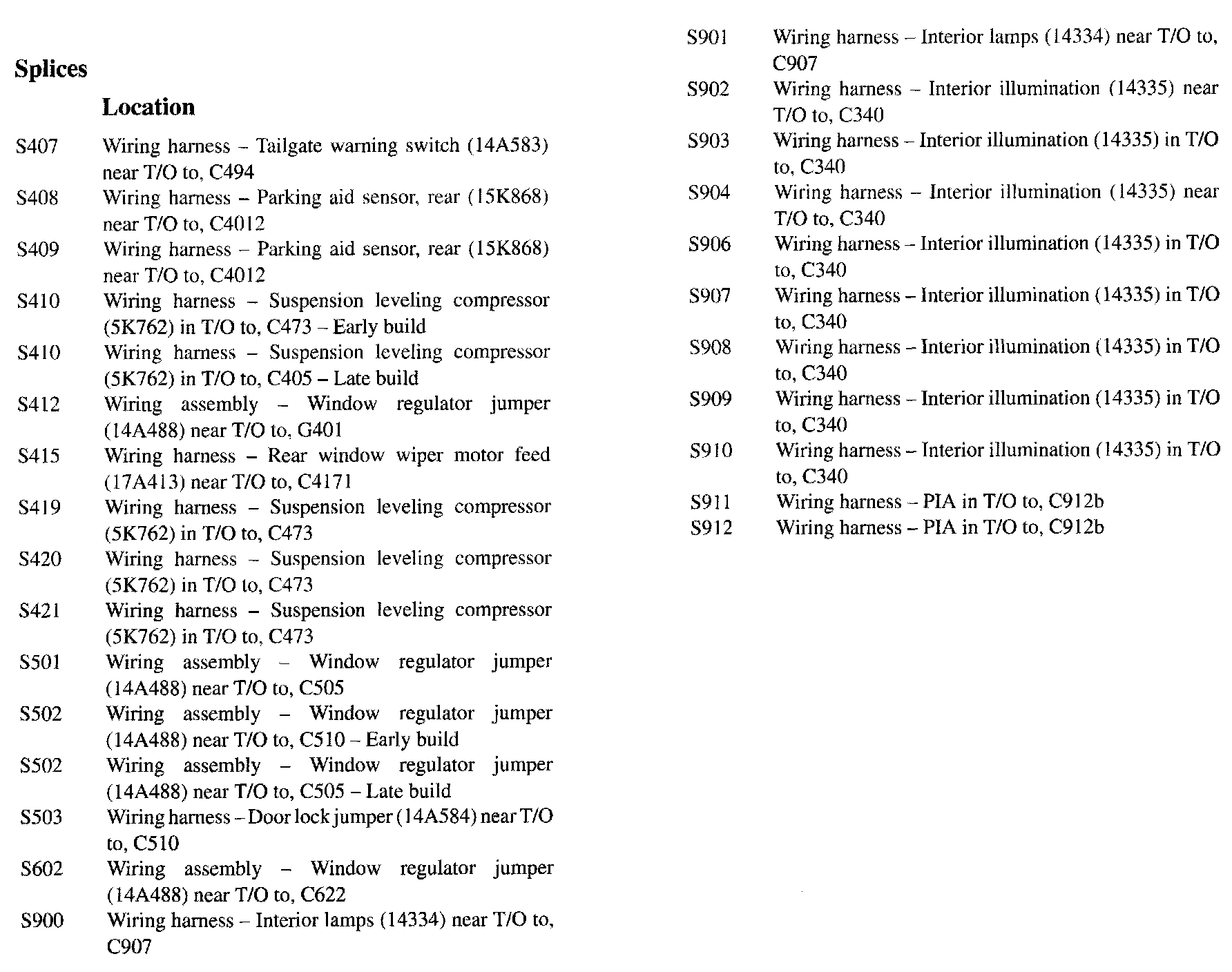

S407 - S912:
