Ambient Temperature Sensor / Switch HVAC: Service and Repair

AMBIENT AIR TEMPERATURE SENSOR

REMOVAL
1. Remove the radiator grille.

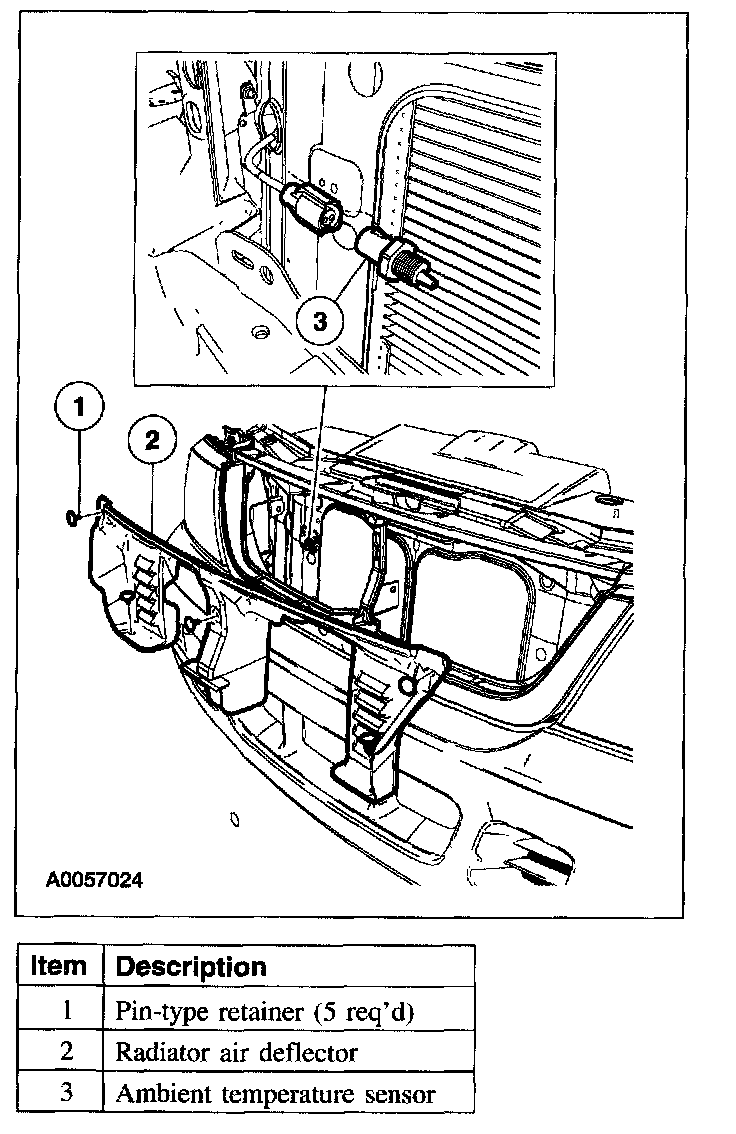

2. Remove the components in the order listed in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
