Home >> Ford >> 2003 >> Explorer AWD V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Components >> Component Location Views >> View 151-49

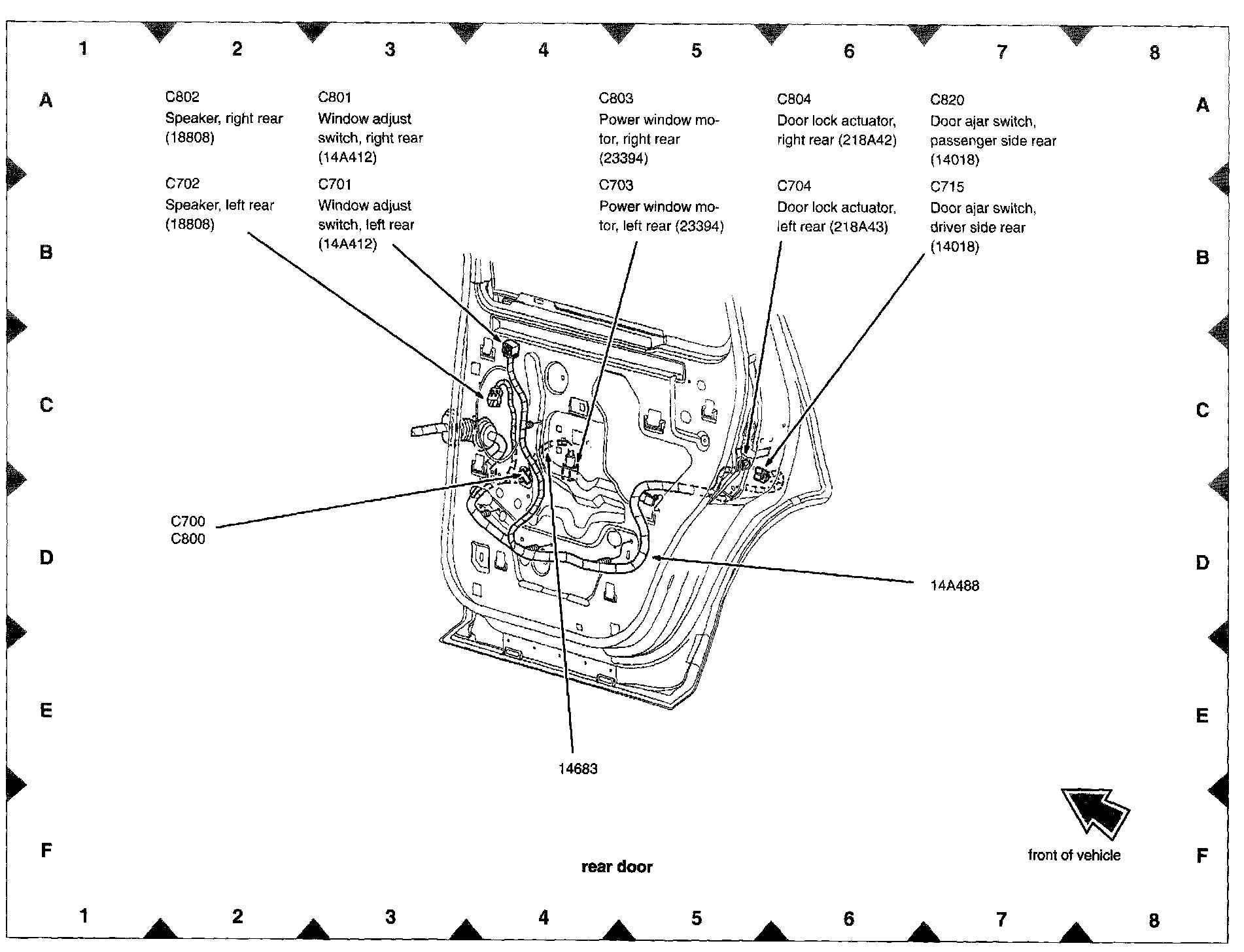

View 151-49

View 151-49:
