Reverse Clutch: Notes

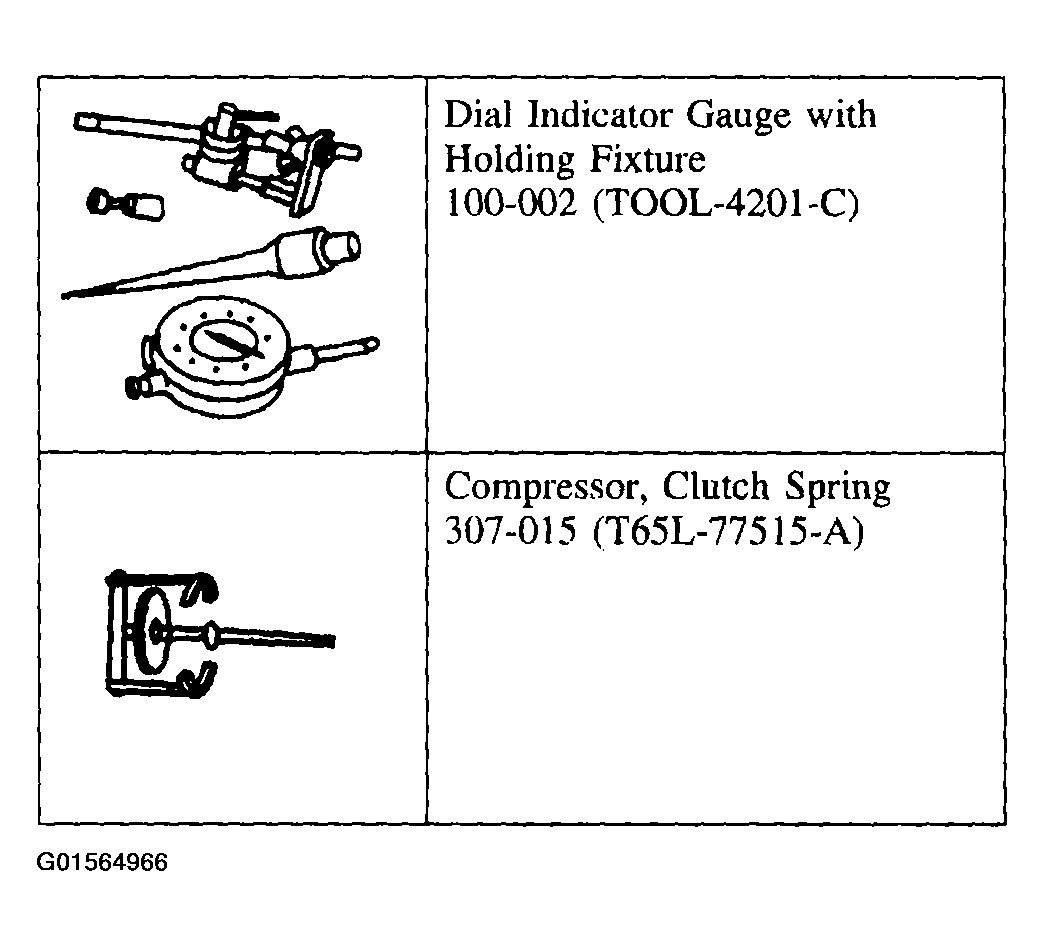

Fig 1: Identifying Special Tools (1 Of 2)
G01564966Courtesy of FORD MOTOR CO.

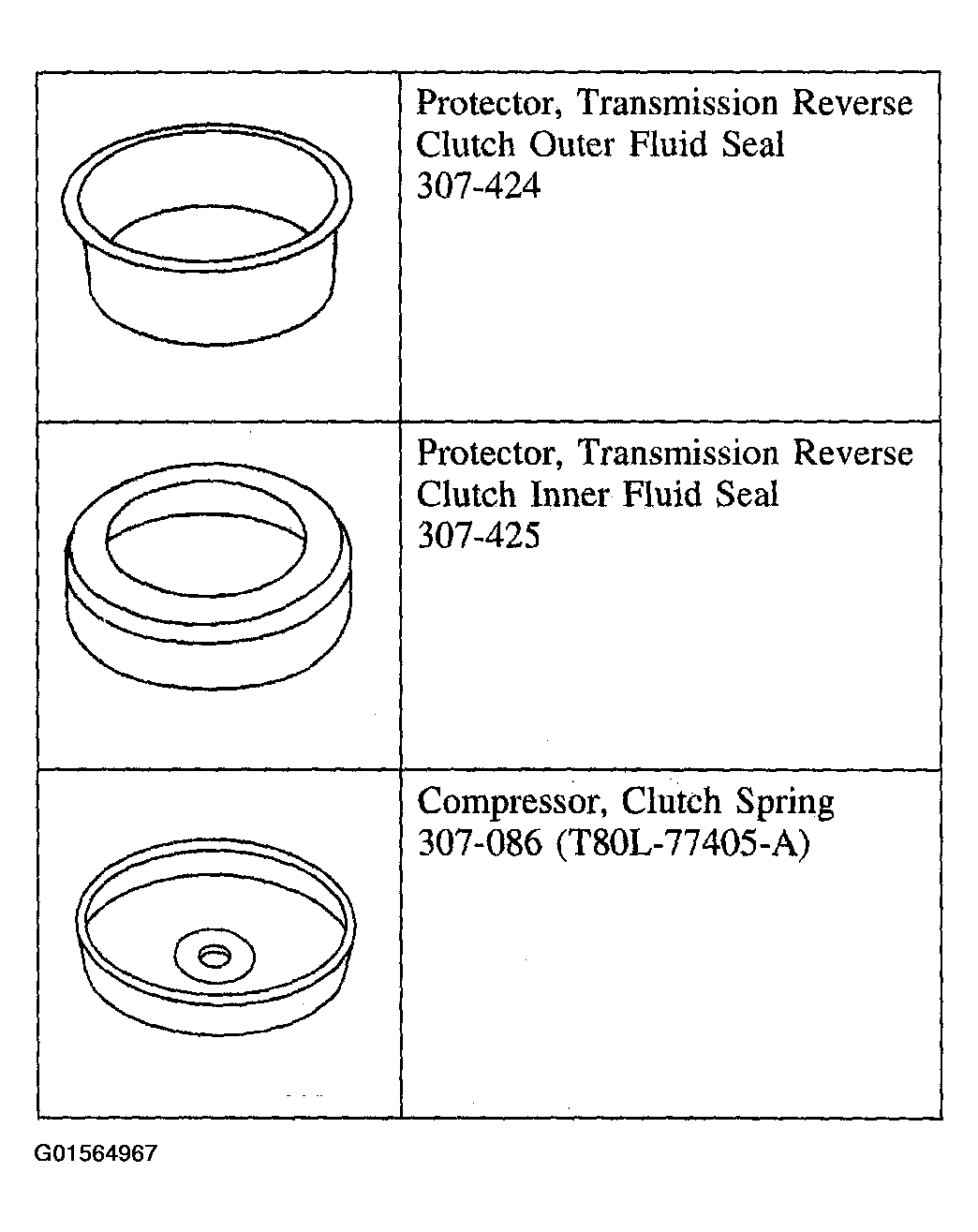

Fig 2: Identifying Special Tools (2 Of 2)
G01564967Courtesy of FORD MOTOR CO.
Fig 3: Identifying Material Specifications
G01564968Courtesy of FORD MOTOR CO.

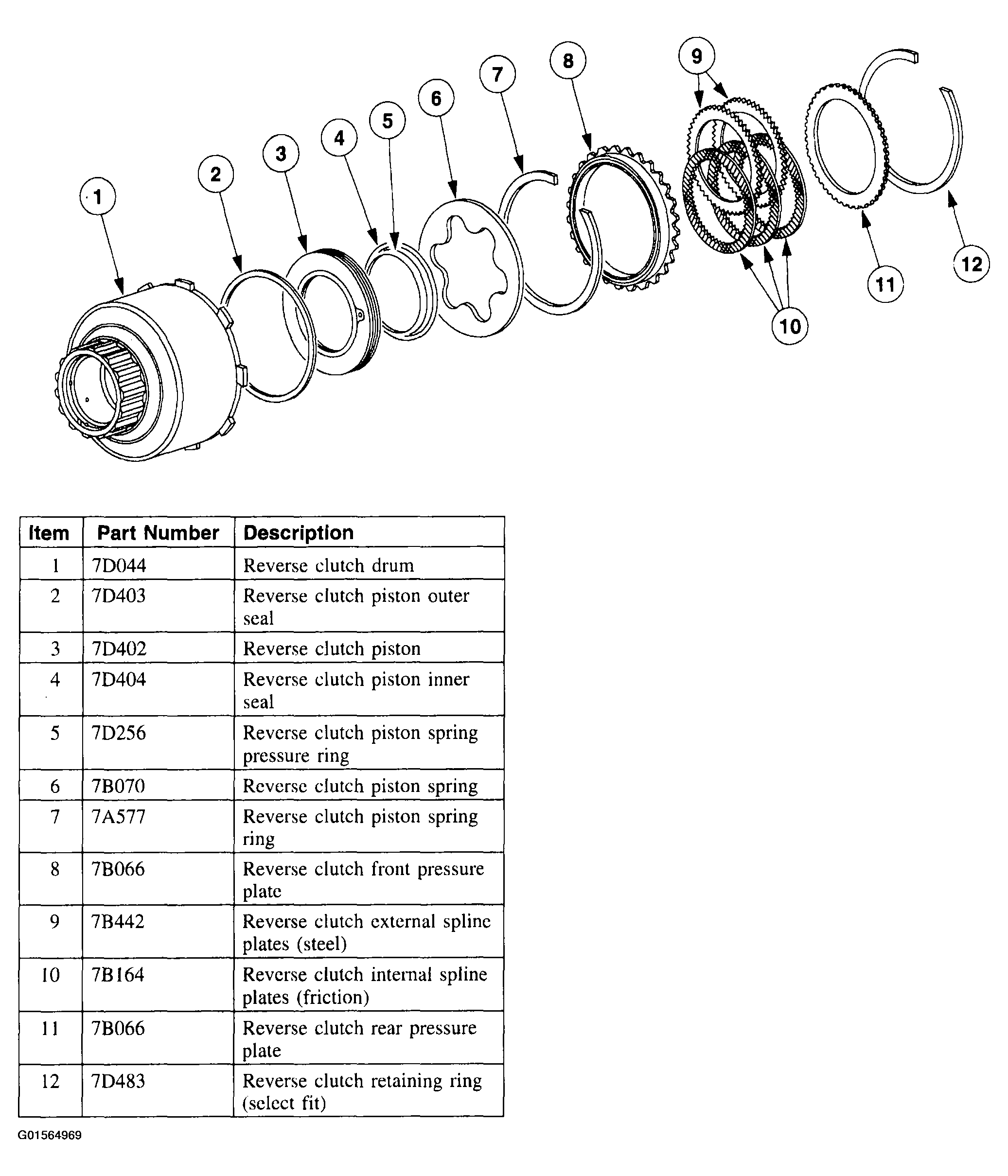

Fig 4: Exploded View Of Reverse Clutch Components And Parts Description Chart
G01564969Courtesy of FORD MOTOR CO.
