Single Generator

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the accessory drive belt from the generator.







3. Disconnect the generator electrical connectors.

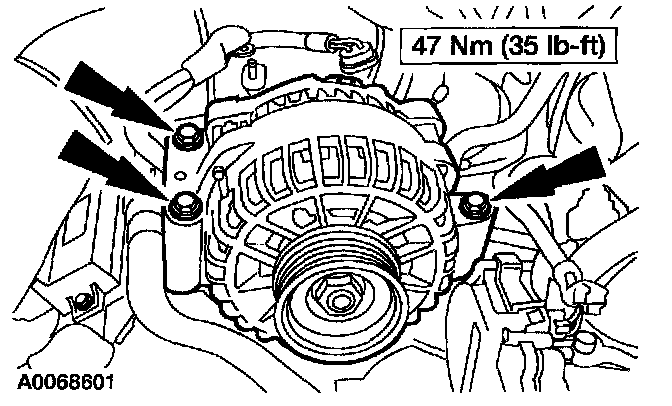

4. Remove the generator mounting bolts and remove the generator.

INSTALLATION
1. To install, reverse the removal procedure.
