Home >> Ford >> 2003 >> Excursion 2WD V8-6.0L DSL Turbo >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Pinpoint Tests >> Test L

Test L

PINPOINT TEST L: THE WINDSHIELD WIPER SPEED DEPENDENT INTERVAL MODE DOES NOT OPERATE CORRECTLY

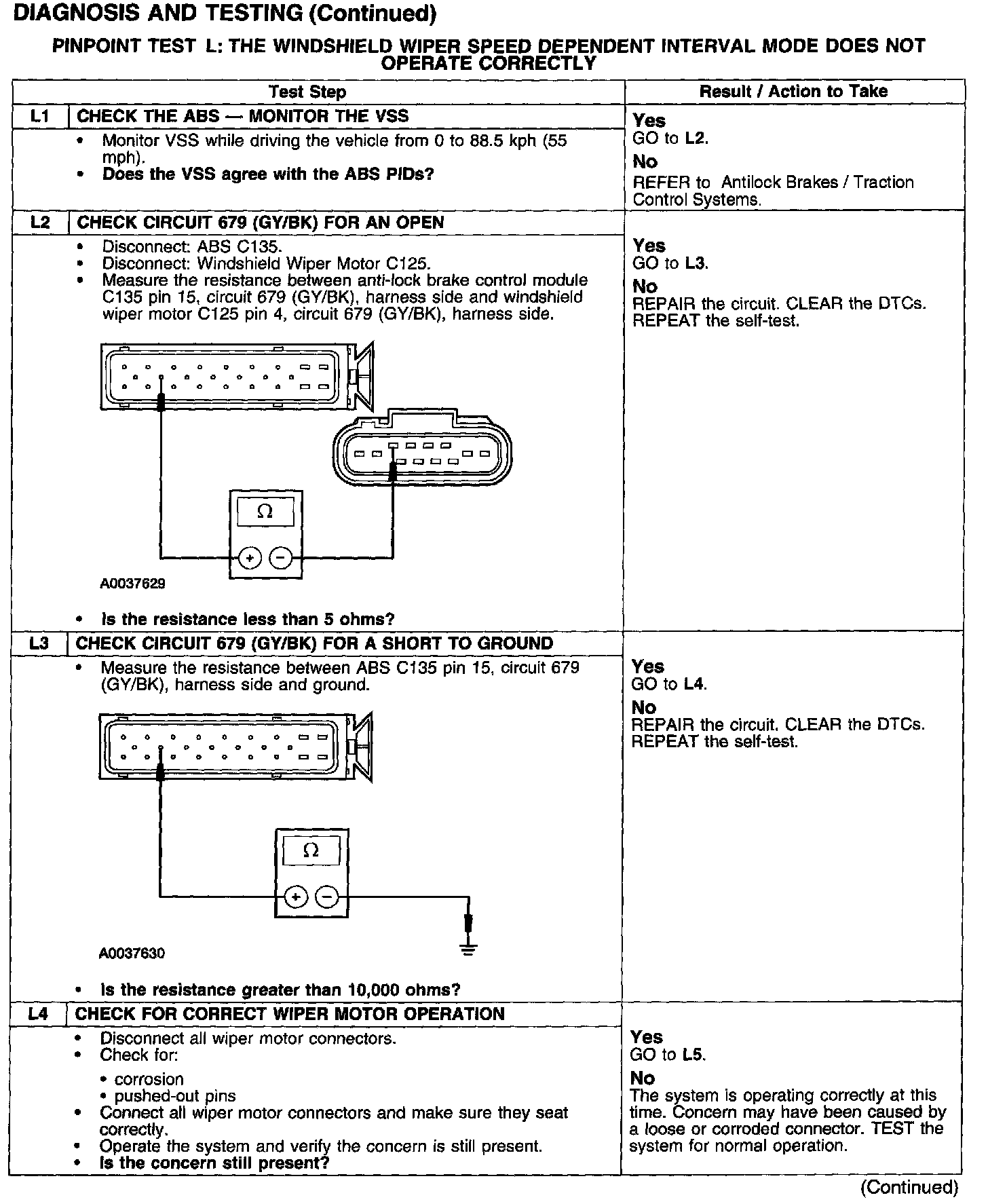

Test L1-L4:

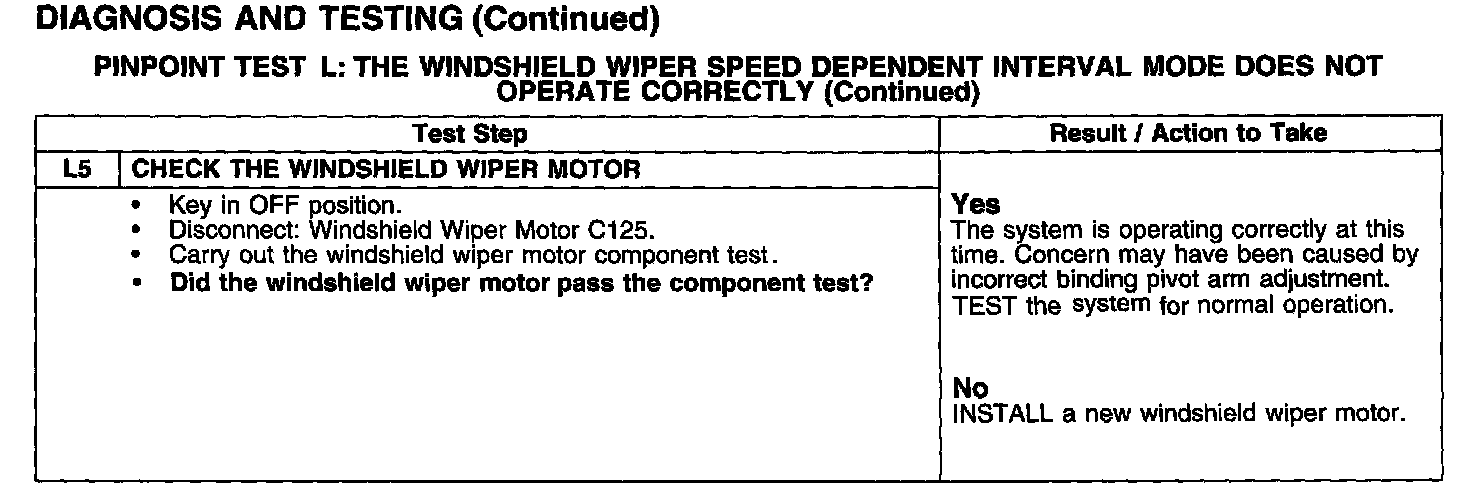

Test L5:
