Test E: No Communication W/EATC Module

PINPOINT TEST E: NO COMMUNICATION WITH THE ELECTRONIC AUTOMATIC TEMPERATURE CONTROL MODULE


Test E1:

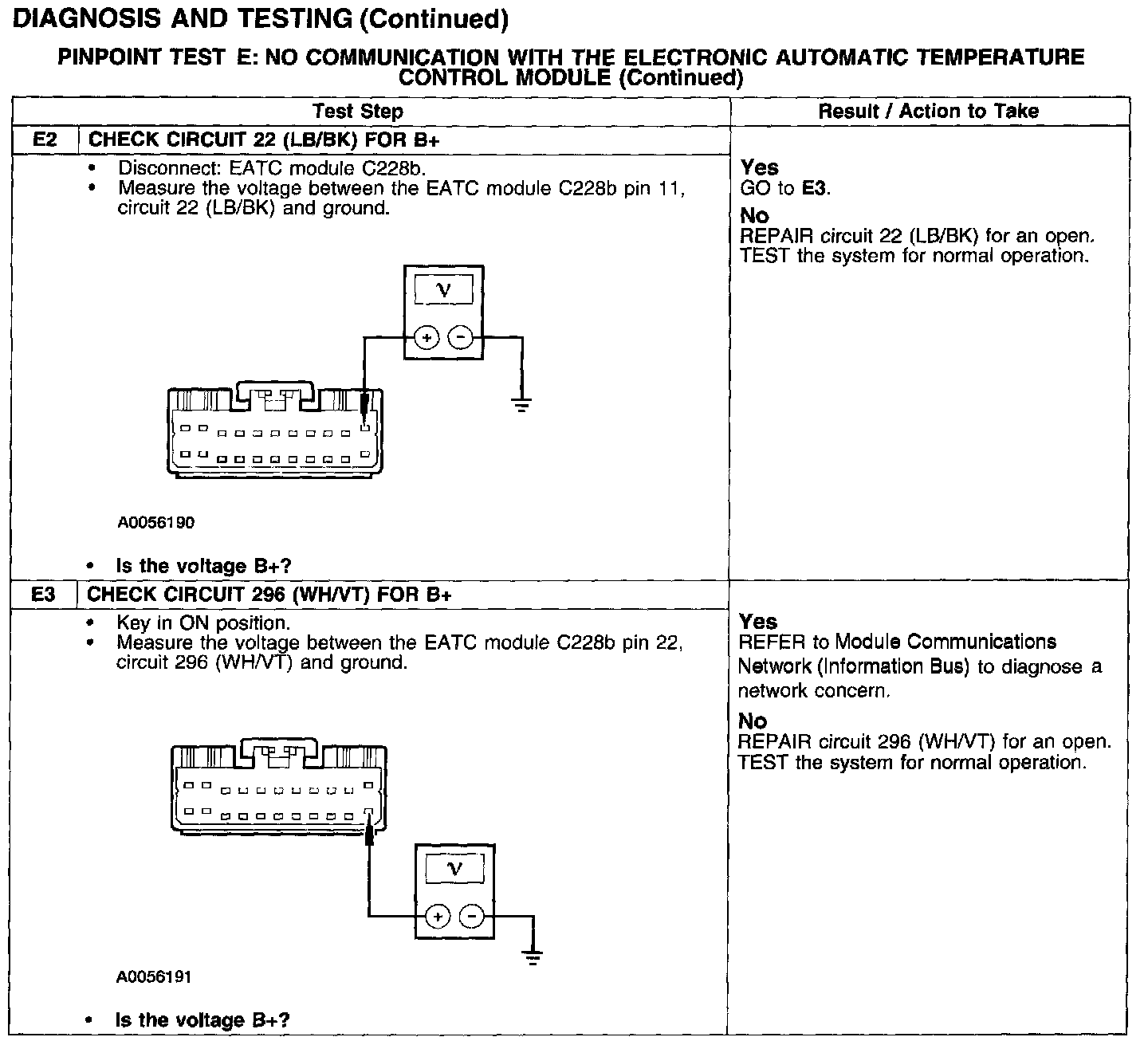

Test E2-E3:
