Home >> Ford >> 2003 >> Excursion 2WD V8-6.0L DSL Turbo >> Repair and Diagnosis >> Brakes and Traction Control >> Disc Brake System >> Locations

Disc Brake System: Locations

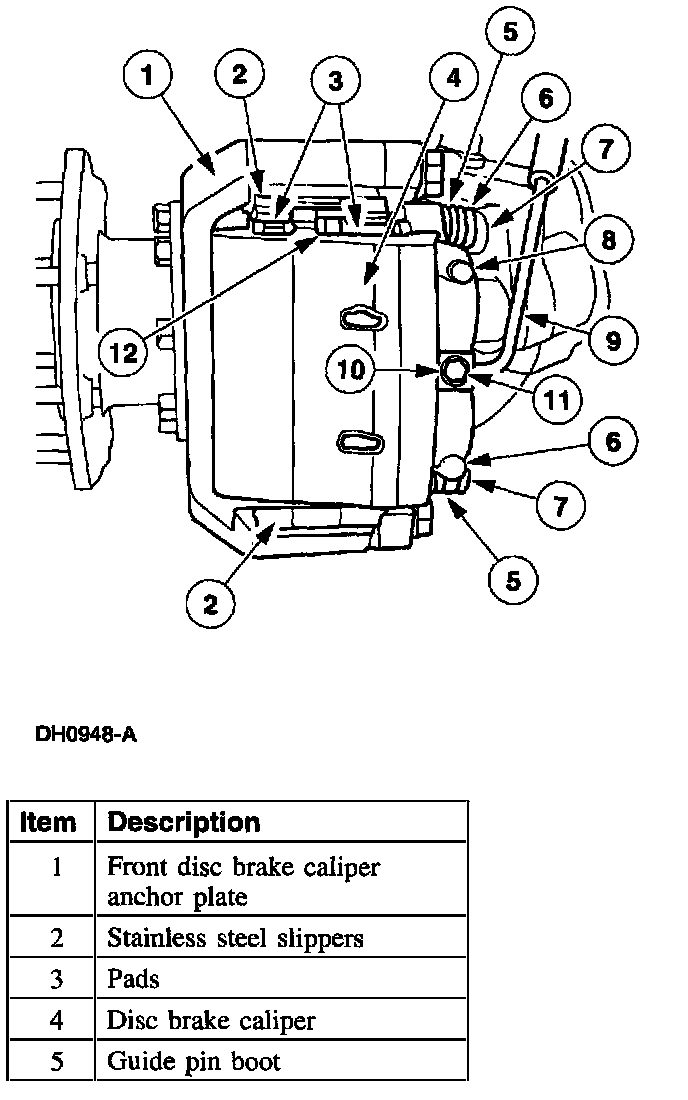

Front Disc Brake








Front Disc Brake Components
