Pinpoint Tests

PINPOINT TEST A: NO COMMUNICATION WITH THE VEHICLE SECURITY MODULE (VSM)

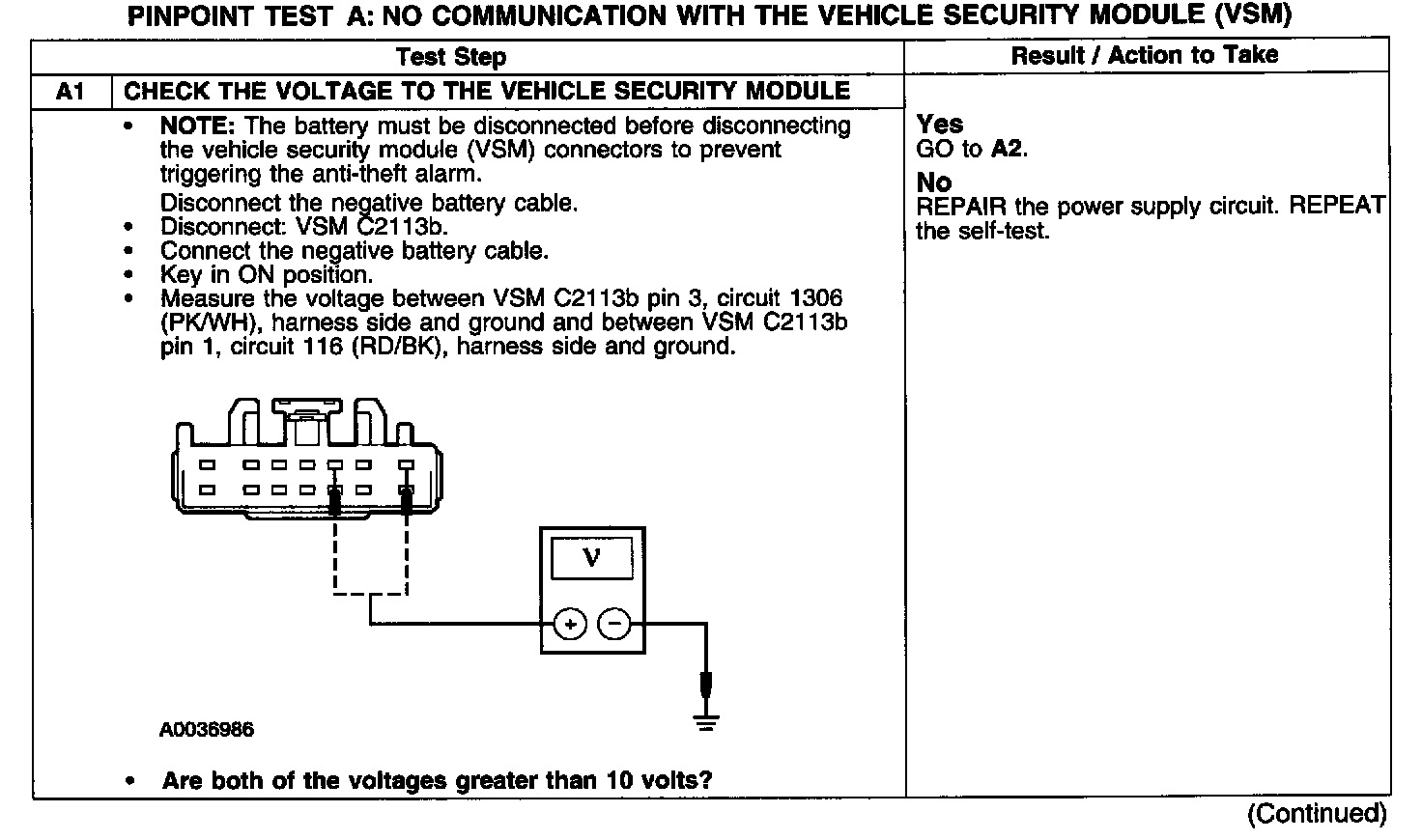

Test A1:

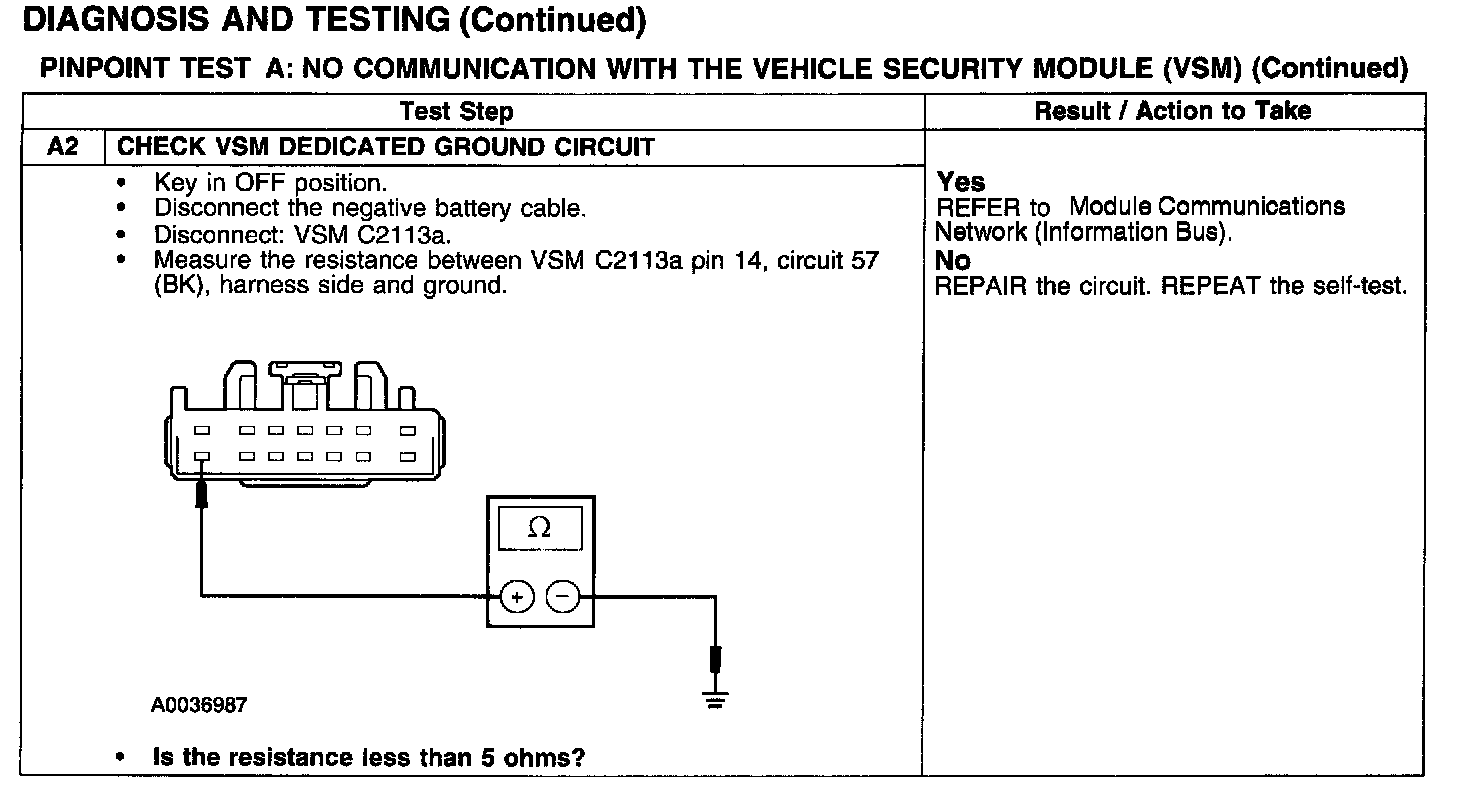

Test A2:
