Warning Buzzer Module

MODULE - WARNING BUZZER

REMOVAL

1. CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

Disconnect battery ground cable.

2. Remove the engine cover.

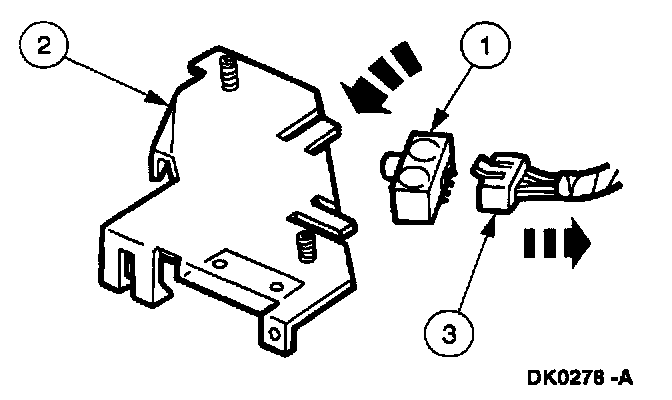

3. Remove the warning buzzer module.
1 Rotate the buzzer module 90 degrees.
2 Pull the buzzer away from the bracket.
3 Disconnect the electrical connector from the buzzer and remove the buzzer module.

INSTALLATION
1. To install, reverse the removal procedure.
