Throttle Position Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the air cleaner outlet tube.

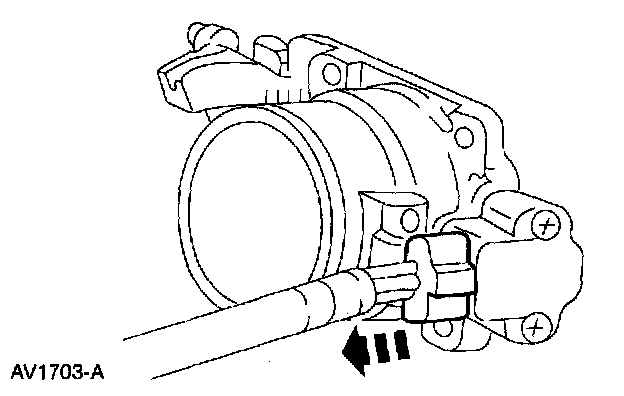

3. Disconnect the Throttle Position (TP) sensor electrical connector.

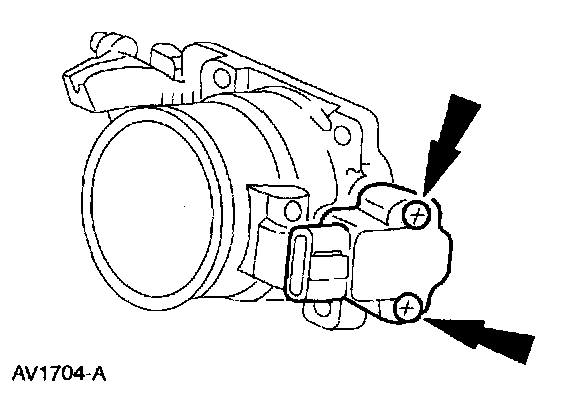

4. Remove the screws and the sensor.

INSTALLATION
1. To install, reverse the removal procedure.
