Crankshaft Position Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.
2. Raise and support the vehicle.

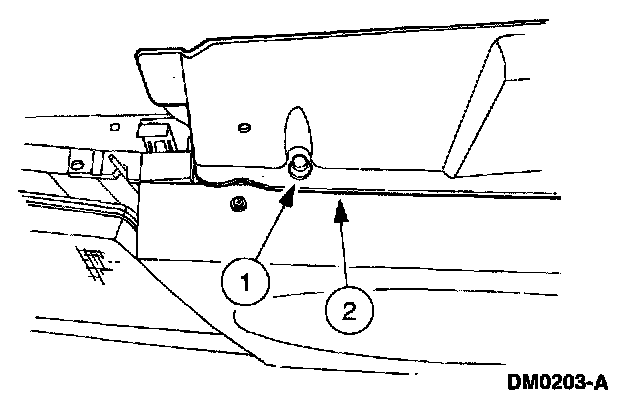

3. Remove the air deflector.
1 Remove the five pin-type retainers.
2 Remove the air deflector.

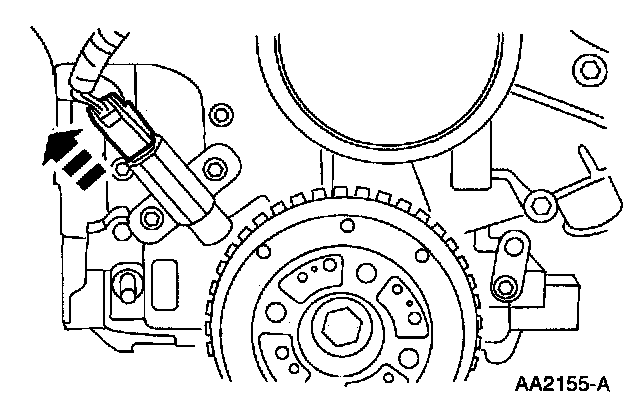

4. Disconnect Crankshaft Position (CKP) sensor electrical connector.

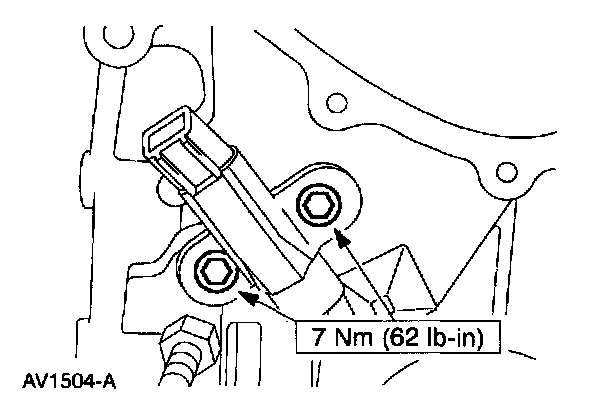

5. Remove the bolts and the CKP sensor.

INSTALLATION
1. To install, reverse the removal procedure.
