Test F

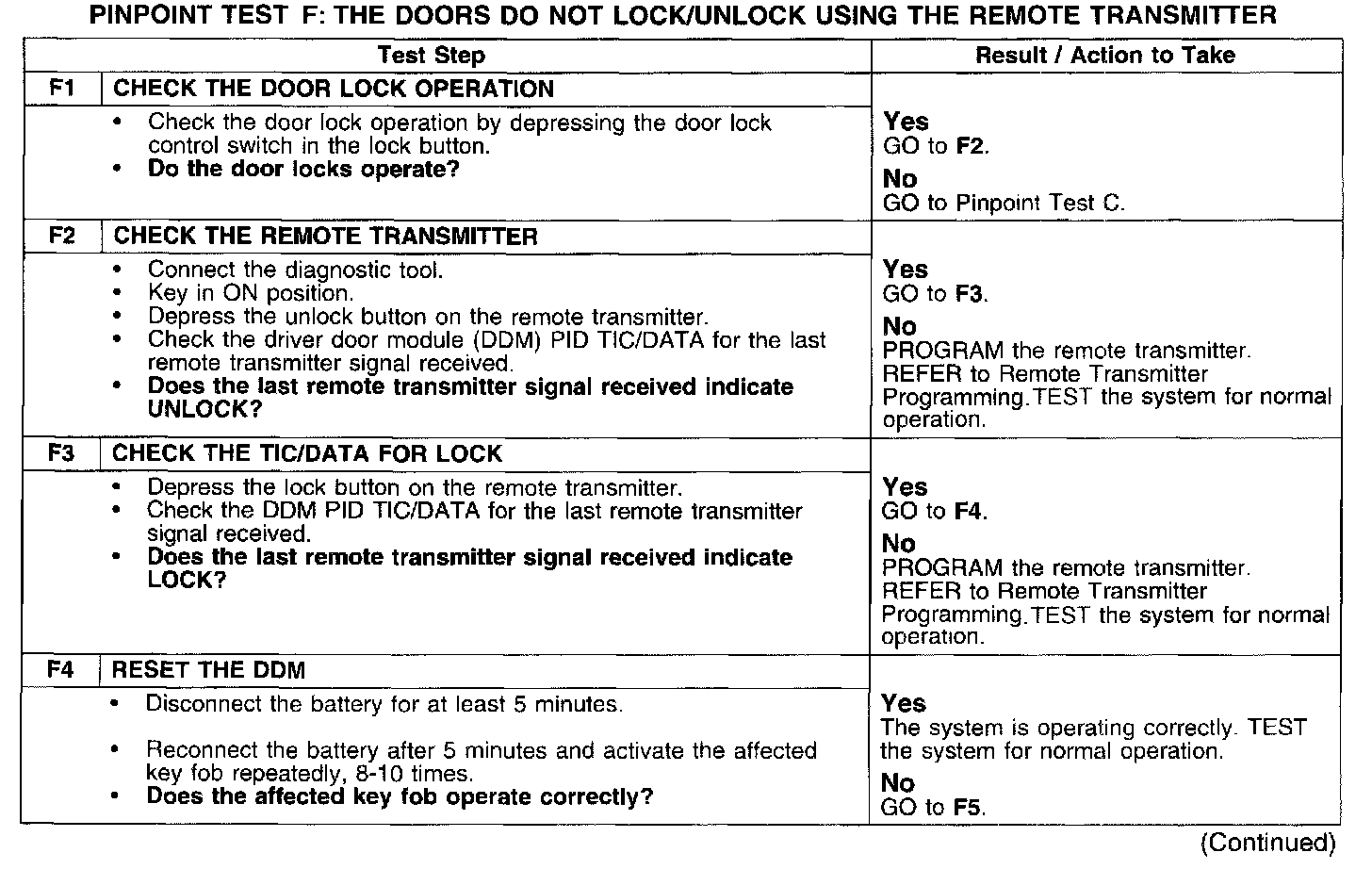

PINPOINT TEST F: THE DOORS DO NOT LOCK/UNLOCK USING THE REMOTE TRANSMITTER


Test F1-F4:






Test F5:
