Home >> Ford >> 2002 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Lower End

Lower End

Lower End

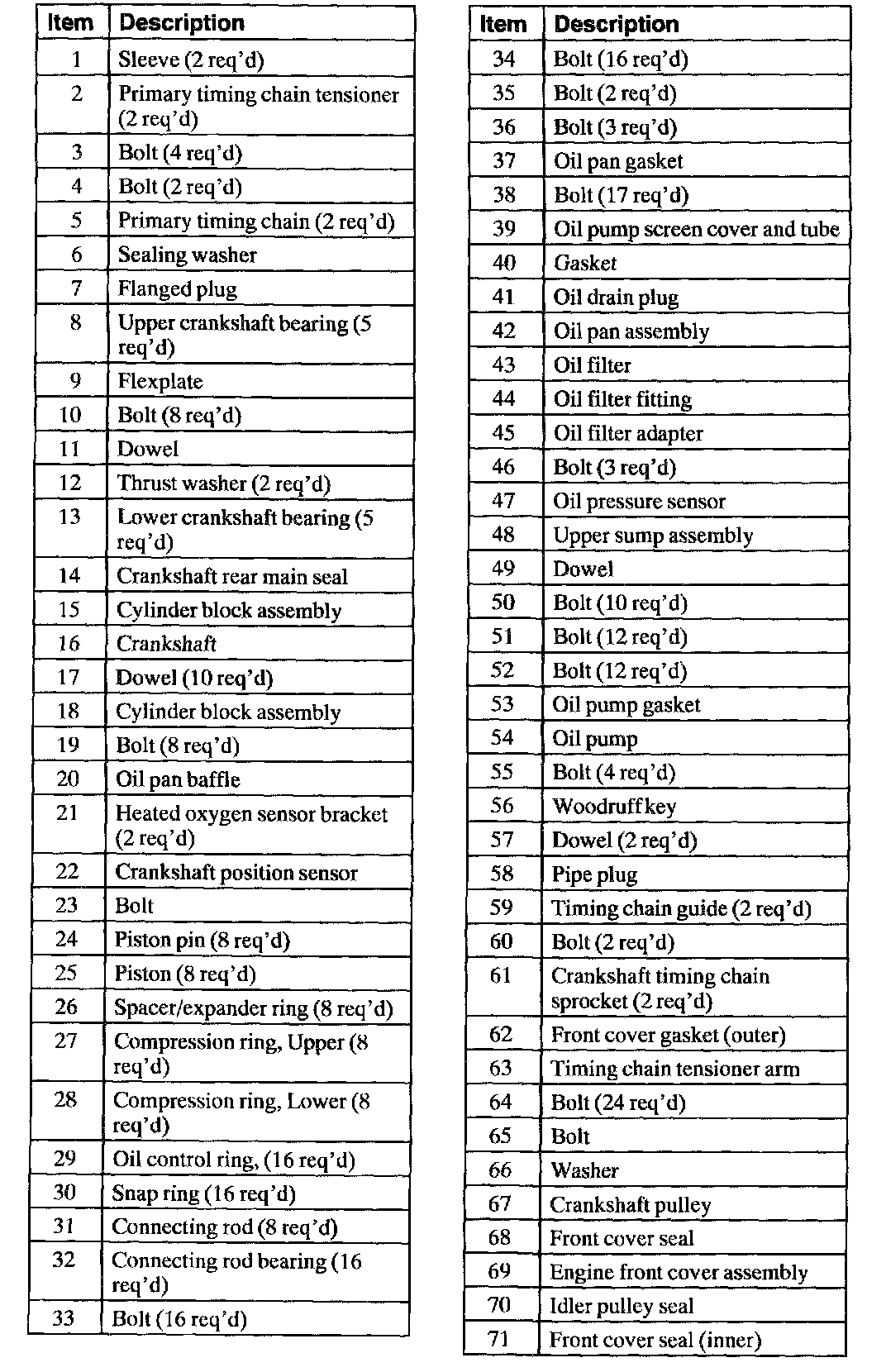

Part 1 of 2

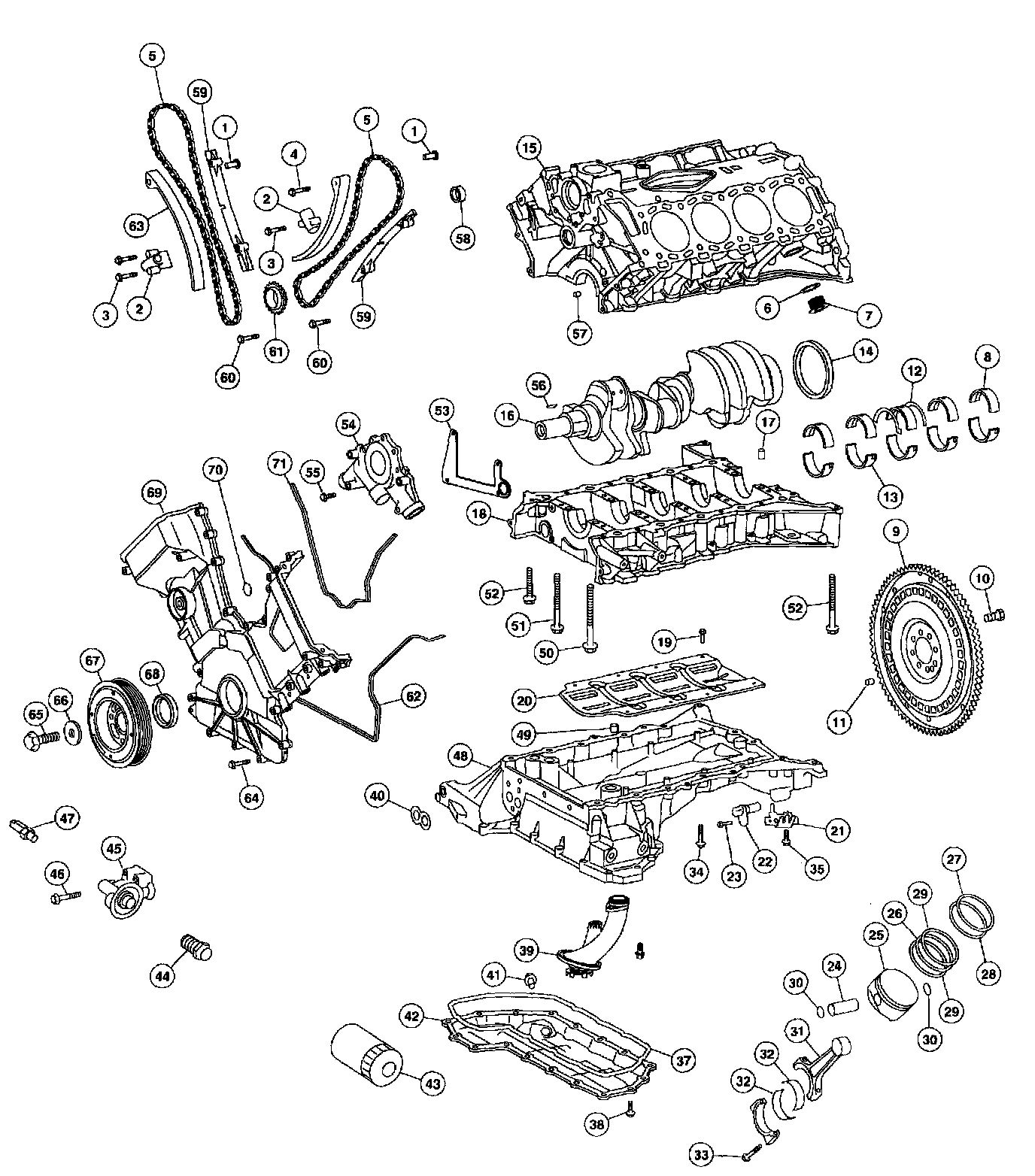

Part 2 of 2
