Section 249 (Engine - 6.8L): Removal: Engine: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Discharge and recover the air conditioning system. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .

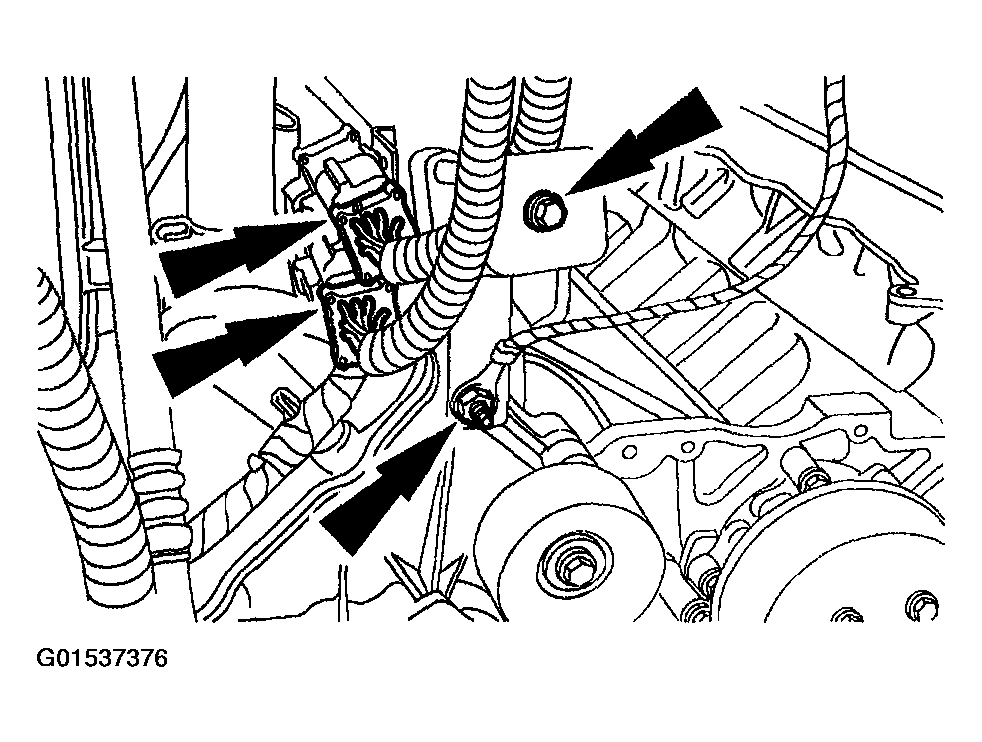

Disconnect the 42-pin and the two 16-pin connectors and remove the nut and the harness mounting bracket.

Fig 1: Disconnecting 42-Pin And 16-Pin Connectors
Courtesy of FORD MOTOR CO.
Remove the intake manifold. For additional information, refer to INTAKE MANIFOLD .
Remove the radiator RH and LH air deflector, the radiator grille support, the valance panel and the upper and lower radiator supports. For additional information, refer to FRONT END BODY PANELS .
Remove the radiator, fan shroud and engine cooling fan. For additional information, refer to ENGINE COOLING .
Remove the headlamps and side marker lamps. For additional information, refer to EXTERIOR LIGHTING .
Remove the A/C condenser core. For additional information, refer to AIR CONDITIONING .
Remove the drive belt. For additional information, refer to ACCESSORY DRIVE .

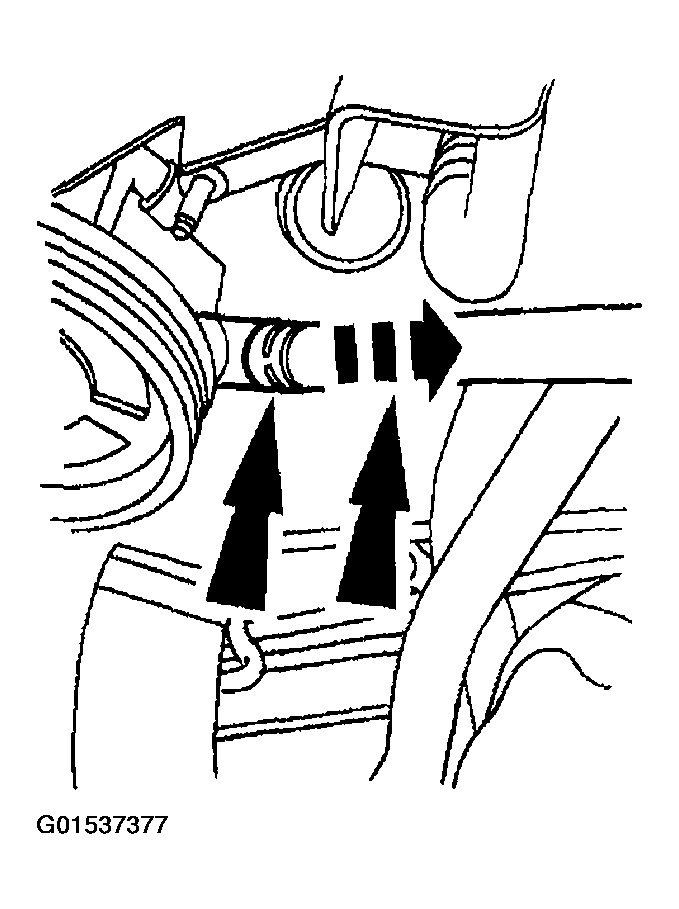

Disconnect the power steering reservoir hose at the power steering pump and let drain into a drain pan.

Fig 2: Disconnecting Power Steering Reservoir Hose
Courtesy of FORD MOTOR CO.

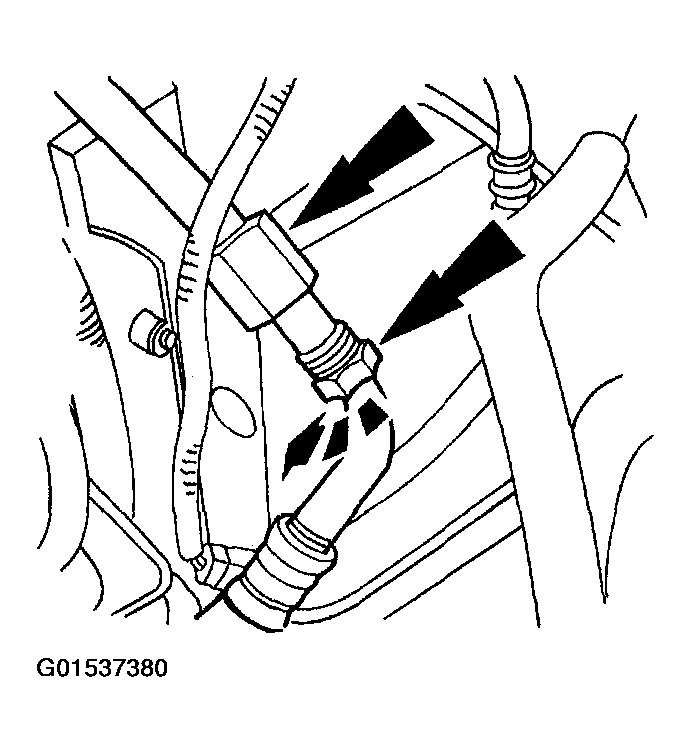

Disconnect the power steering pressure hose.

Fig 3: Disconnecting Power Steering Pressure Hose
Courtesy of FORD MOTOR CO.

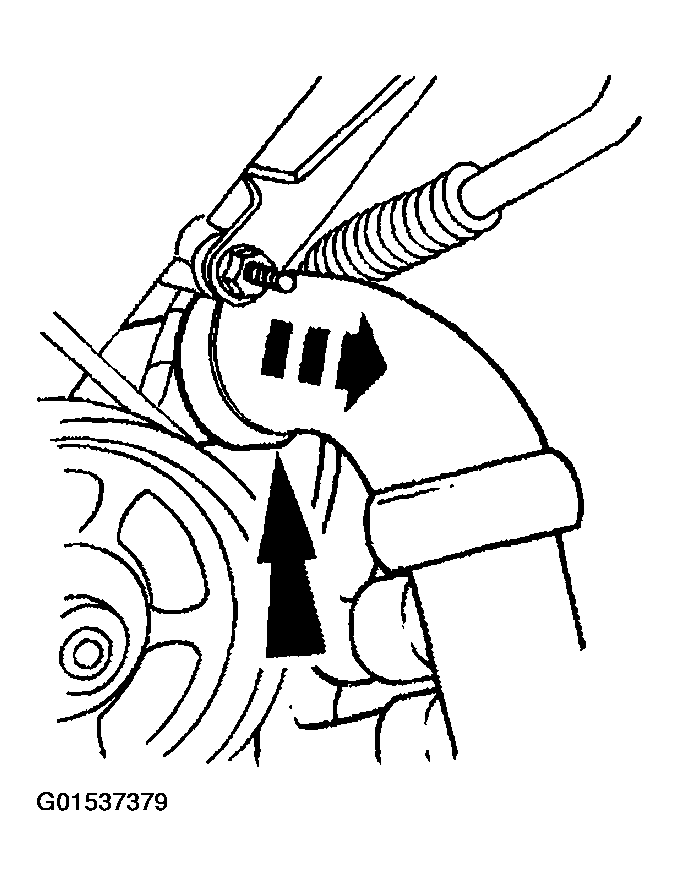

At the oil cooler water inlet, disconnect and set aside the lower radiator hose.

Fig 4: Removing Lower Radiator Hose
Courtesy of FORD MOTOR CO.
Disconnect the suction hose at the accumulator.

Fig 5: Disconnecting Suction Hose From Accumulator
Courtesy of FORD MOTOR CO.

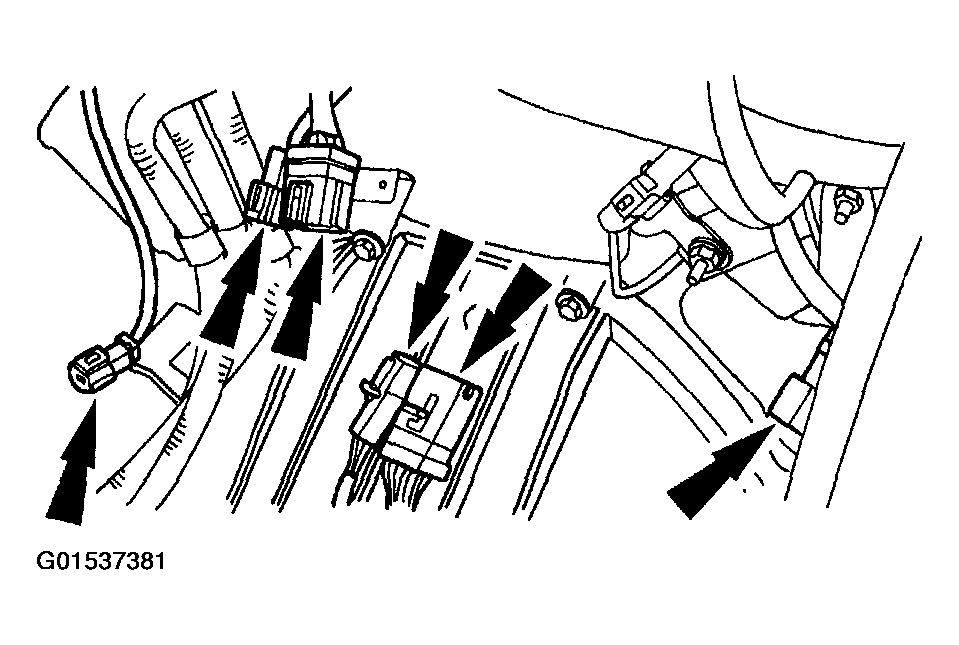

Disconnect the transmission harness and the left and right heated exhaust gas oxygen sensor connectors.

Fig 6: Disconnecting Left And Right Heated Exhaust Gas Oxygen Sensor Connectors
Courtesy of FORD MOTOR CO.

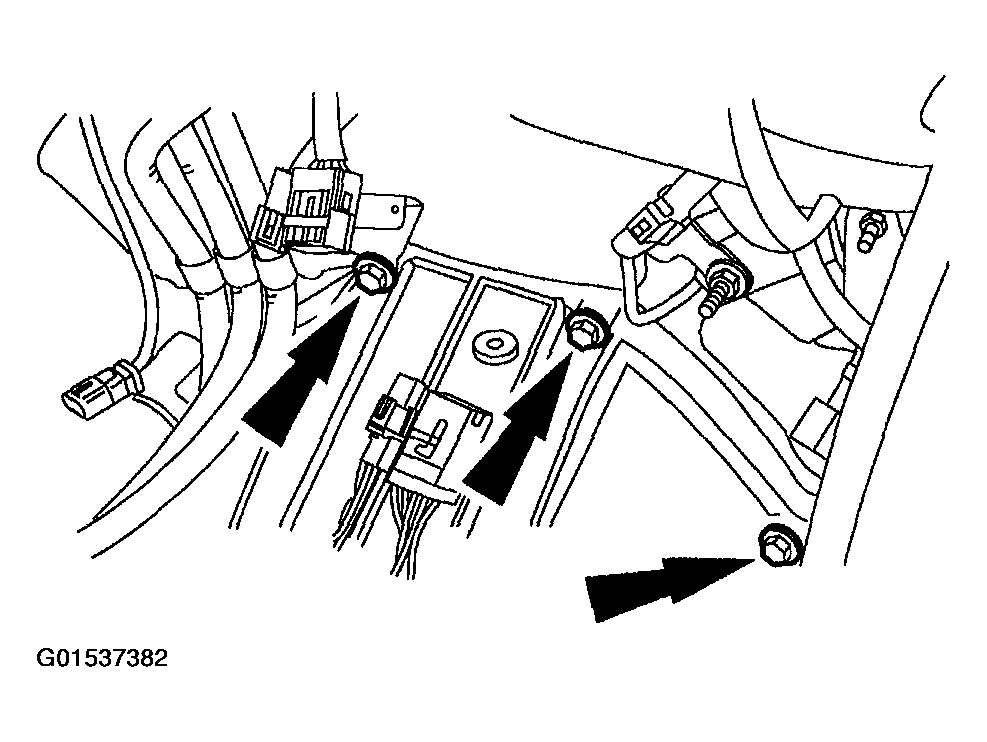

Remove the upper transmission-to-engine bolts and the fuel tube bracket.

Fig 7: Removing Fuel Tube Bracket
Courtesy of FORD MOTOR CO.
Raise and support the vehicle.
Remove the nuts.

Fig 8: Removing Nuts
Courtesy of FORD MOTOR CO.
Drain the engine oil and remove the oil filter.

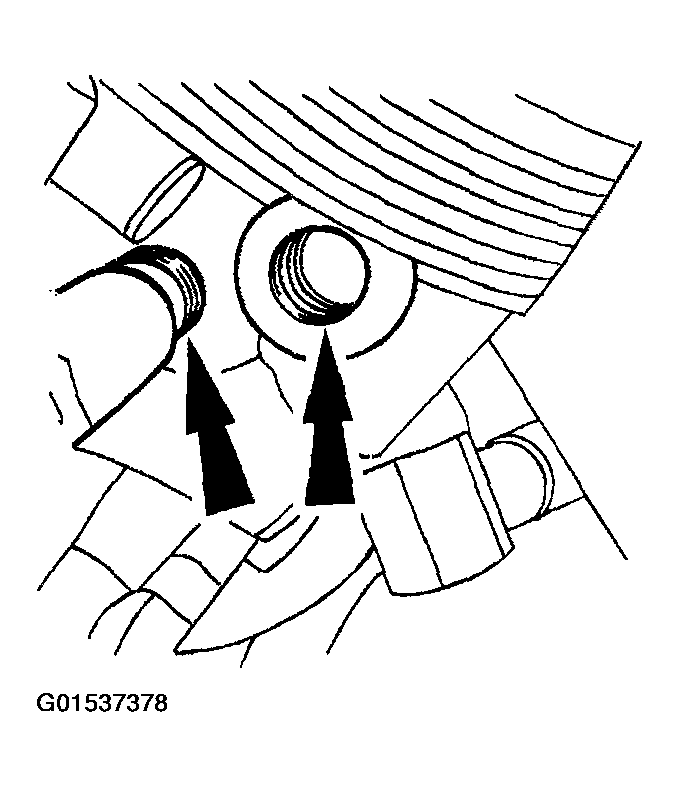

Disconnect the oil cooler hoses and position aside.

Fig 9: Disconnecting Oil Cooler Hoses
Courtesy of FORD MOTOR CO.

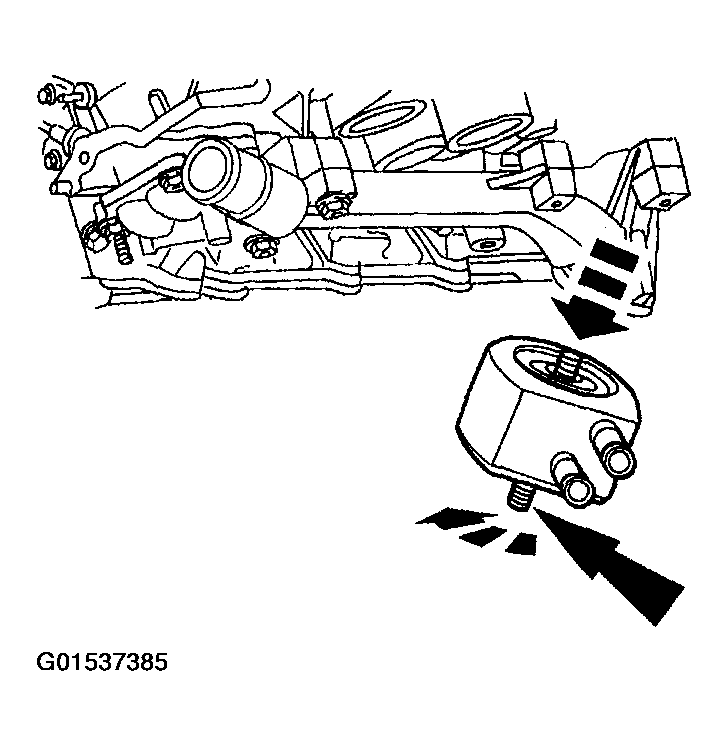

Loosen the threaded shaft and remove the oil cooler from the oil filter adapter.

Fig 10: Removing Oil Cooler From Oil Filter Adapter
Courtesy of FORD MOTOR CO.
Remove the starter motor. For additional information, refer to STARTERS - EXCEPT DIESEL .

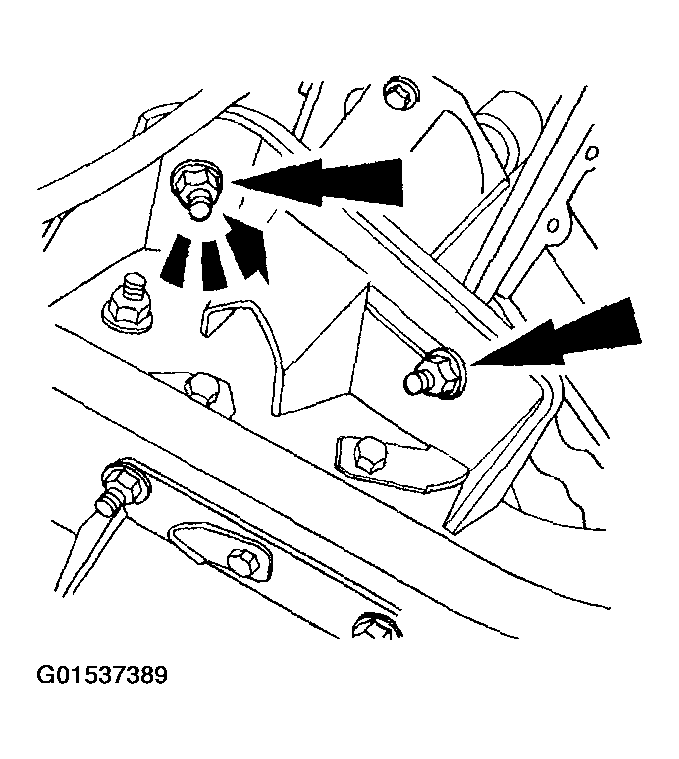

Remove the bolt from the A/C compressor manifold and position the manifold aside.

Fig 11: Removing Bolt From A/C Compressor Manifold
Courtesy of FORD MOTOR CO.

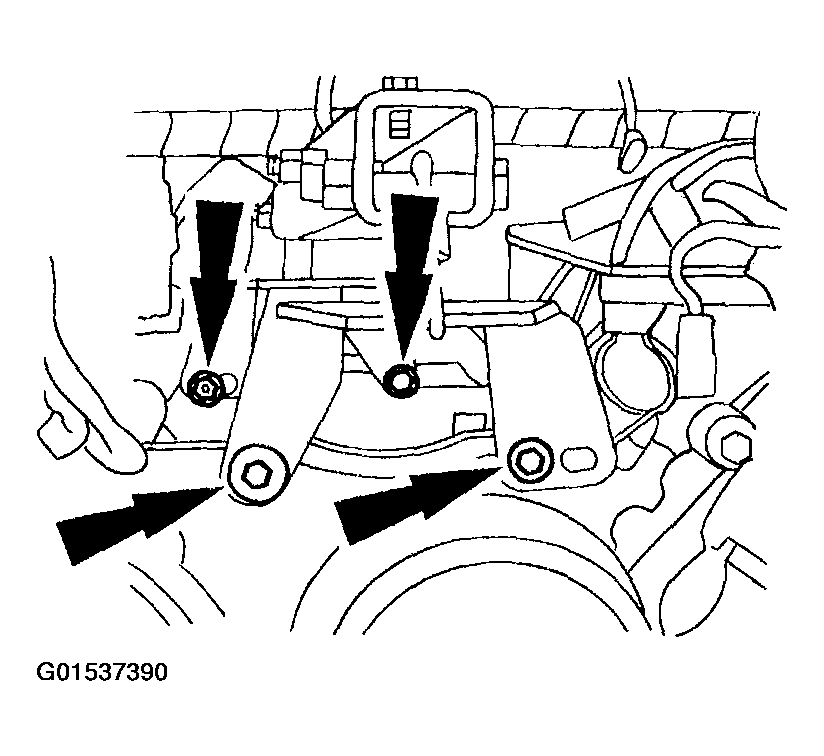

Remove the bolts and position the shift cable and bracket aside.

Fig 12: Removing Shift Cable And Bracket
Courtesy of FORD MOTOR CO.
Remove and discard the six nuts retaining the torque converter to the flexplate.

Fig 13: Removing Nuts Retaining Torque Converter To Flexplate
Courtesy of FORD MOTOR CO.
Remove the engine support insulator nuts.

Fig 14: Removing Engine Support Insulator Nuts
Courtesy of FORD MOTOR CO.
Remove the remaining transmission to engine bolts.
Lower the vehicle.
Install the Modular Engine Lift Bracket.

Fig 15: Installing Modular Engine Lift Bracket
Courtesy of FORD MOTOR CO.
Support the transmission with a jack.
Remove the engine from the vehicle.
