Home >> Ford >> 2002 >> Focus L4-2.0L SOHC VIN P >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Test A: ABS Control Module Does Not Respond to the Scan Tool

Test A: ABS Control Module Does Not Respond to the Scan Tool

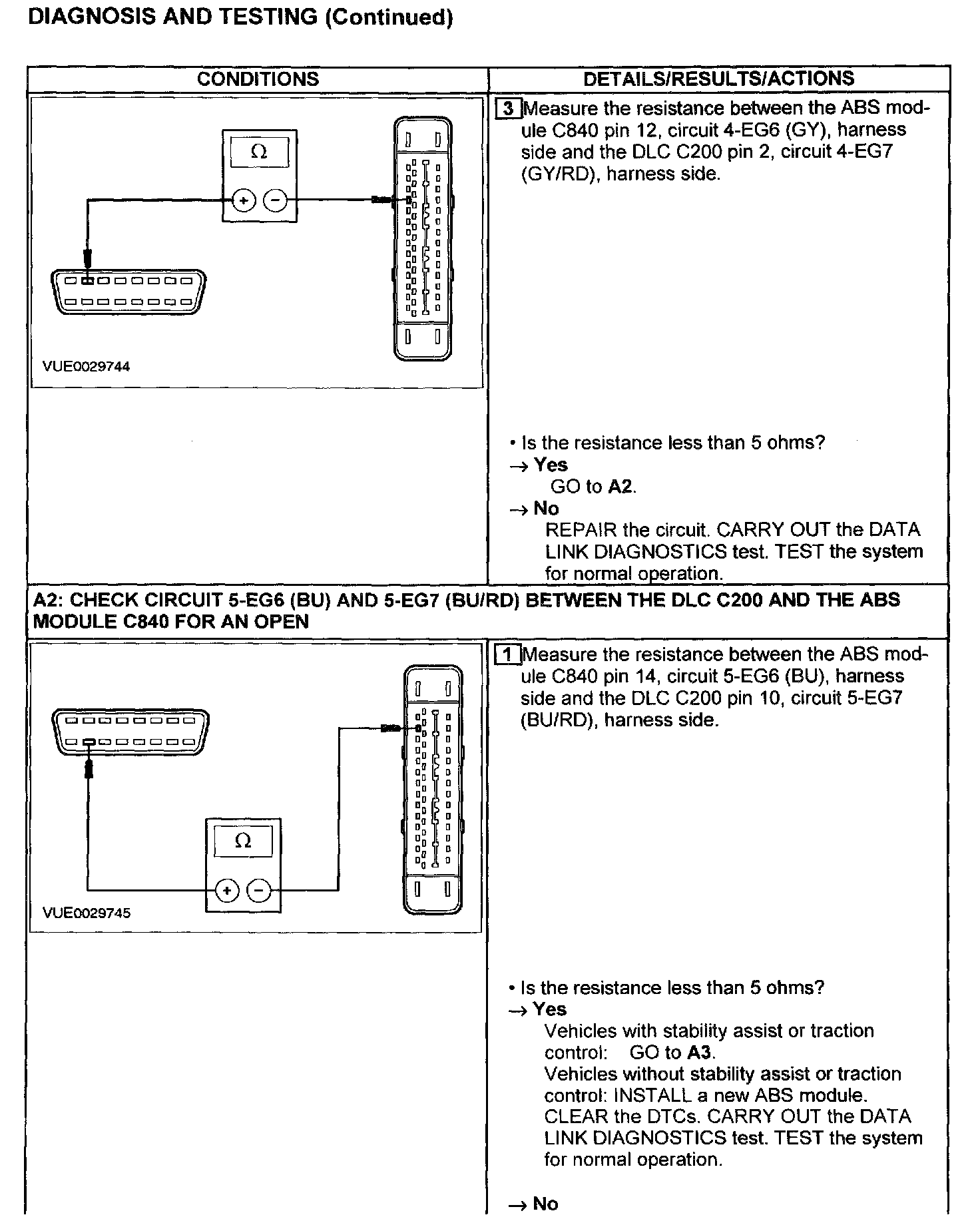

A1:






A1 - A2:

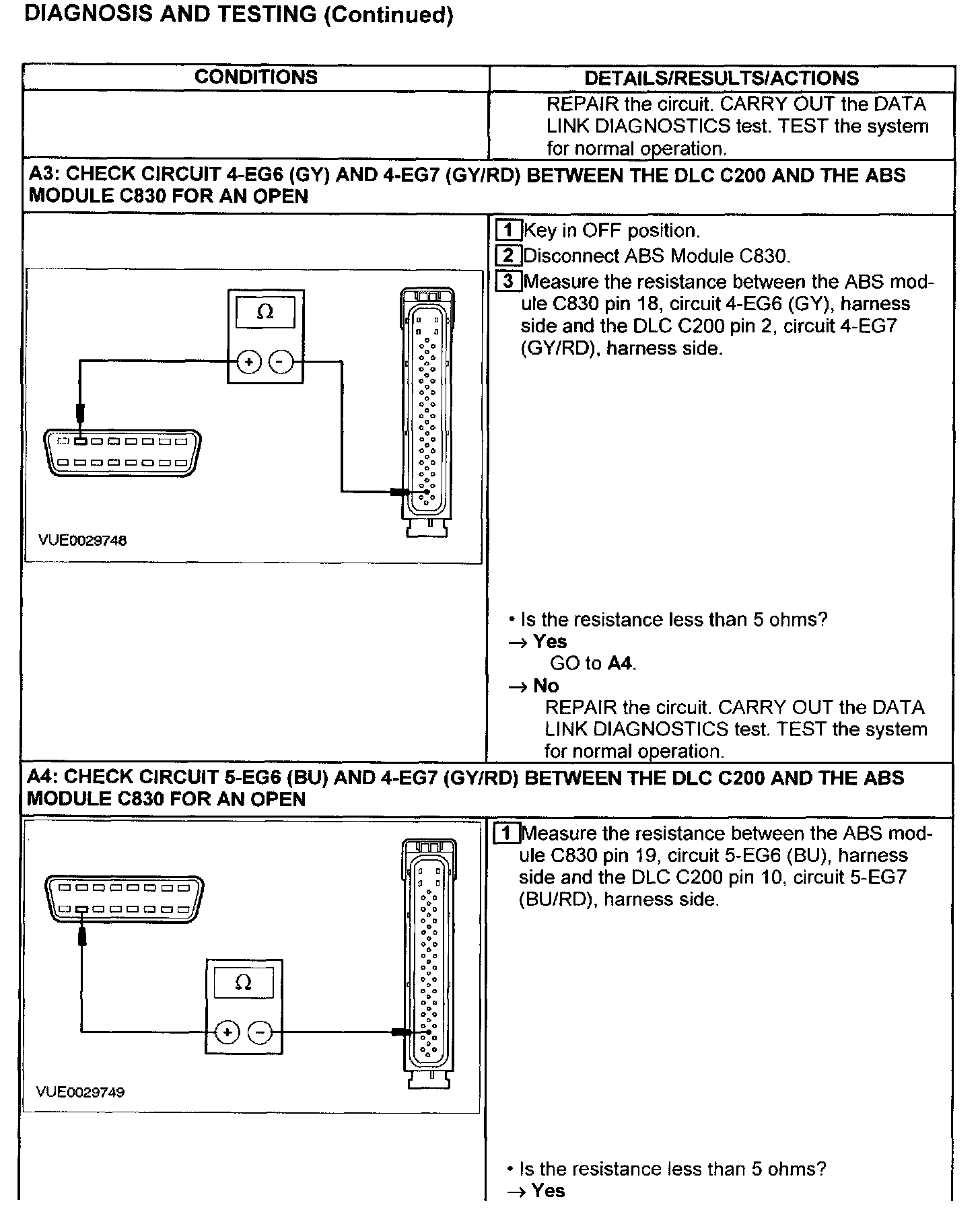

A2 - A4:






A4:
