Zetec
Torque Specifications
Torque Specifications (1 Of 3):
Torque Specifications (1 Of 3):
Torque Specifications (1 Of 3):
Cylinder Head Torque Specifications
CAUTION: Do not retighten the cylinder head bolts.

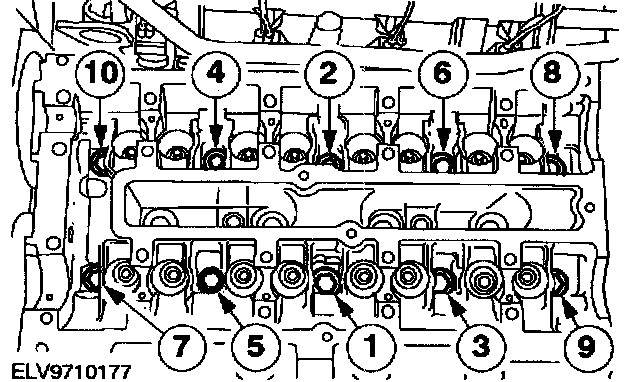

Cylinder Head Torque Sequence:
Tighten the cylinder head bolts in three stages in the sequence indicated:
^ Stage 1: 20 Nm
^ Stage 2: 40 Nm
^ Stage 3: 90 degrees
