System Specifications

Engine Cooling Specifications

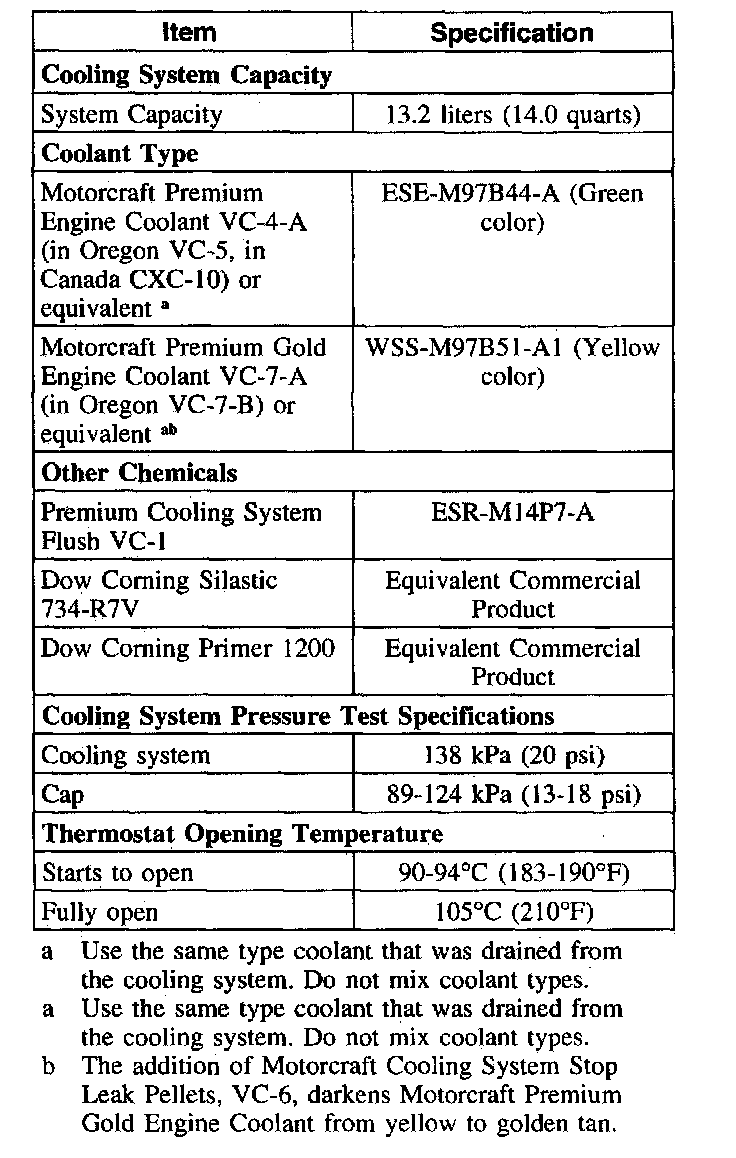

General Specifications





a Use the same type coolant that was drained from the cooling system. Do not mix coolant types.
a Use the same type coolant that was drained from the cooling system. Do not mix coolant types.
b The addition of Motorcraft Cooling System Stop Leak Pellets, VC-6, darkens Motorcraft Premium Gold Engine Coolant from yellow to golden tan.

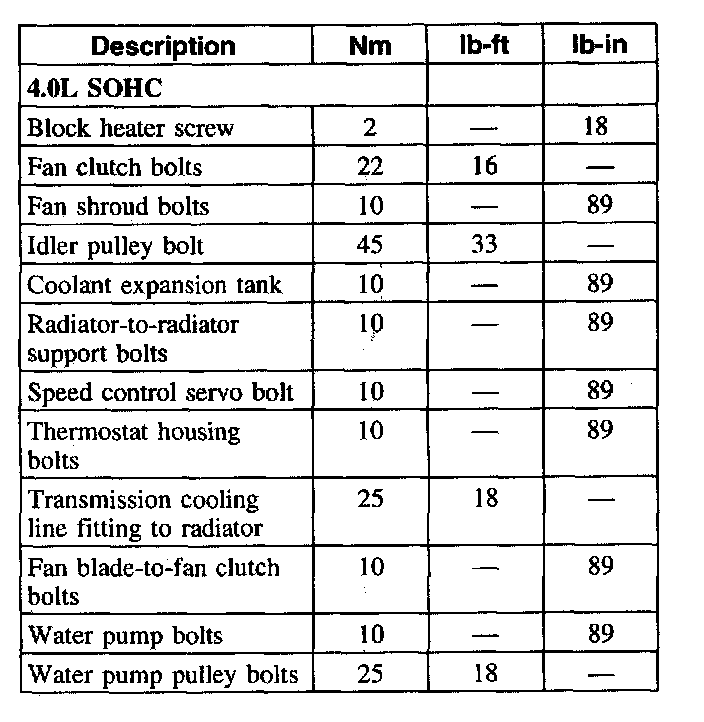

Torque Specifications
