Home >> Ford >> 2002 >> Explorer Sport 2WD V6-4.0L VIN E >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Disc Brake System >> Front Disc Brake Components

Front Disc Brake Components

Front Disc Brake Components

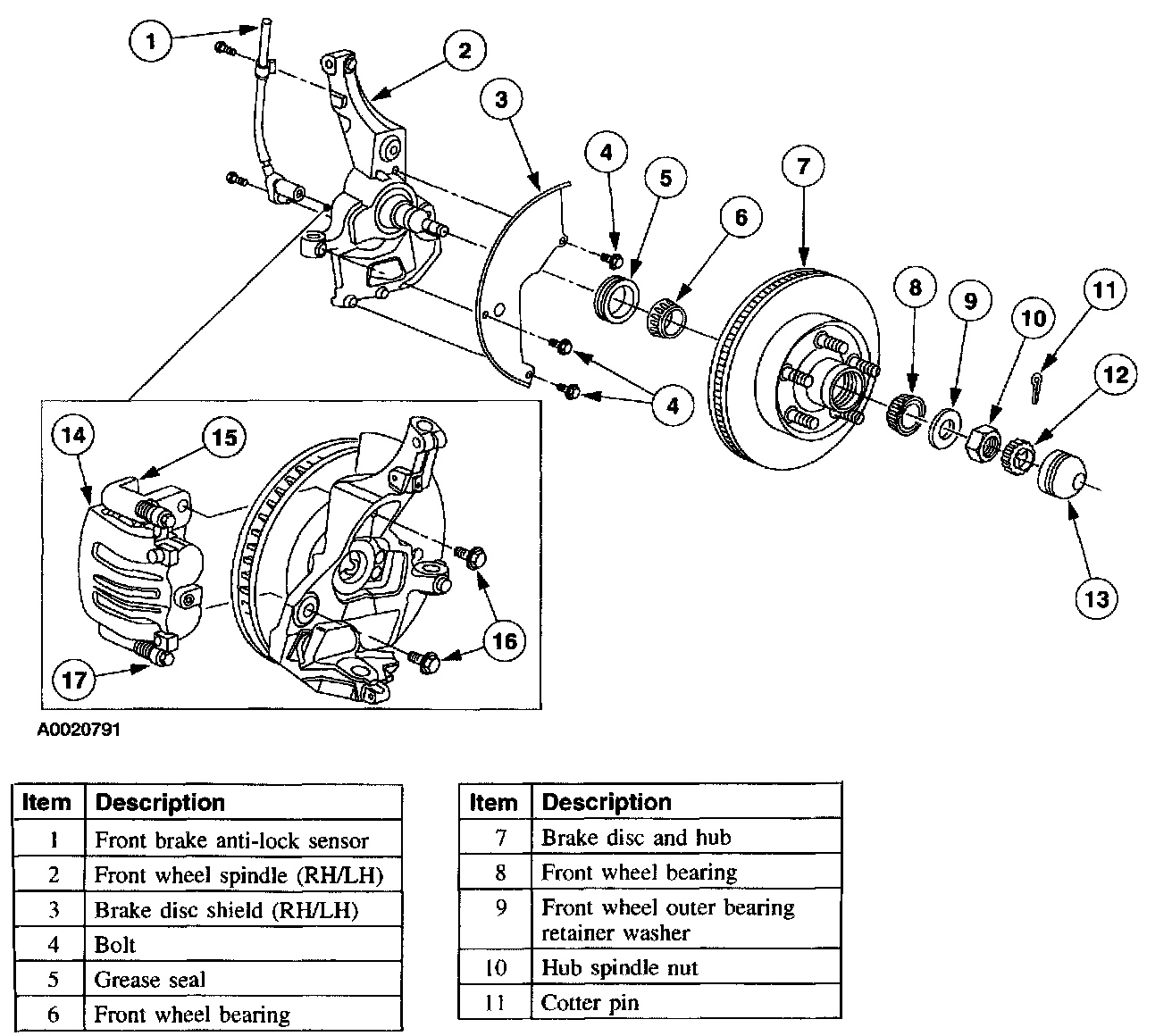

Part 1 of 2

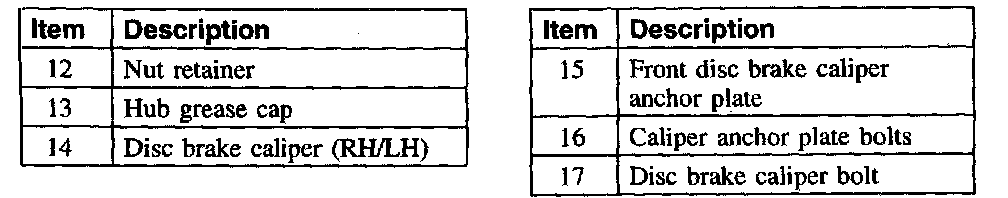

Part 2 of 2
