Differential Assembly

8.8 inch Rear Axle (Disc Brakes)

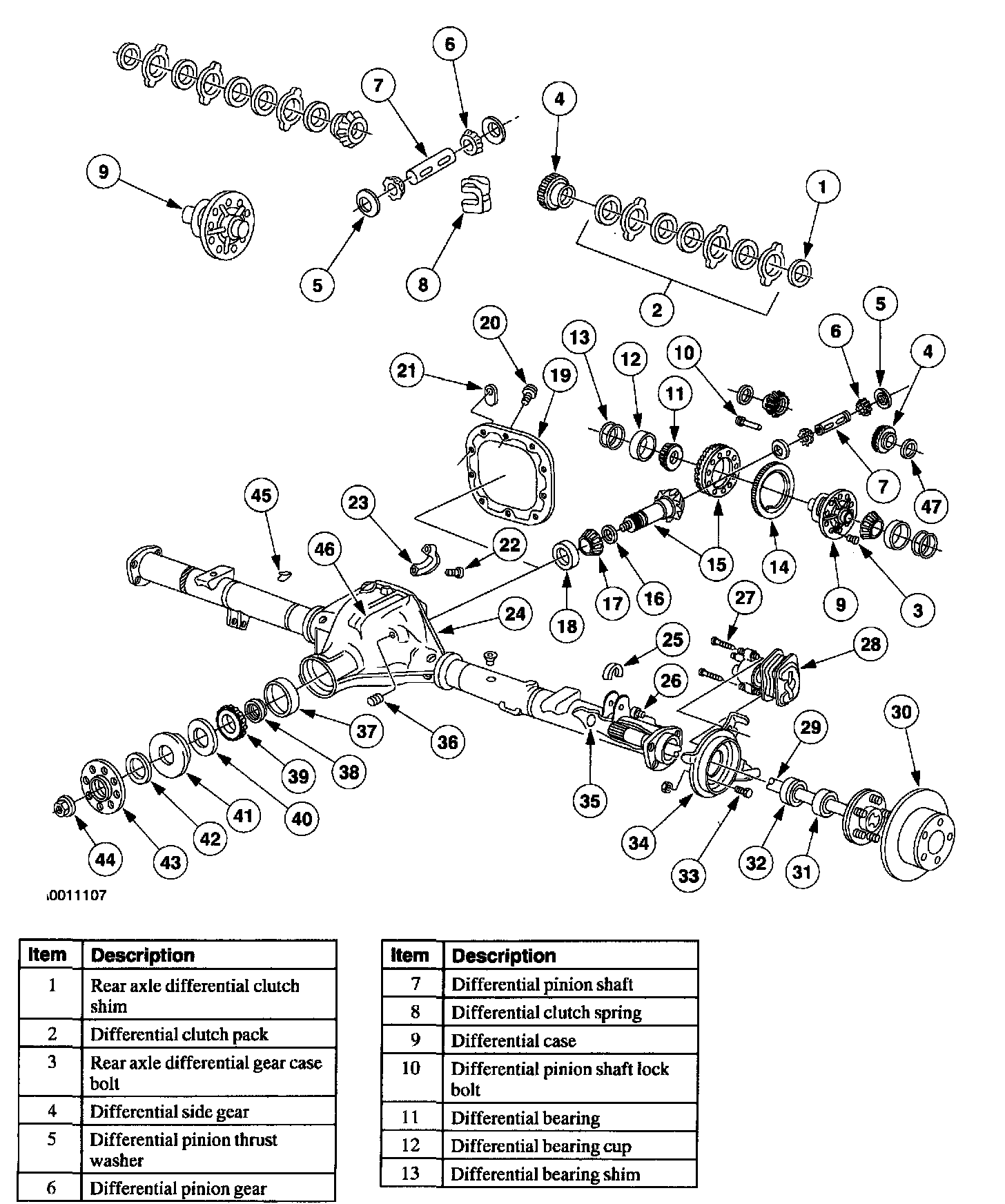

Part 1 of 4

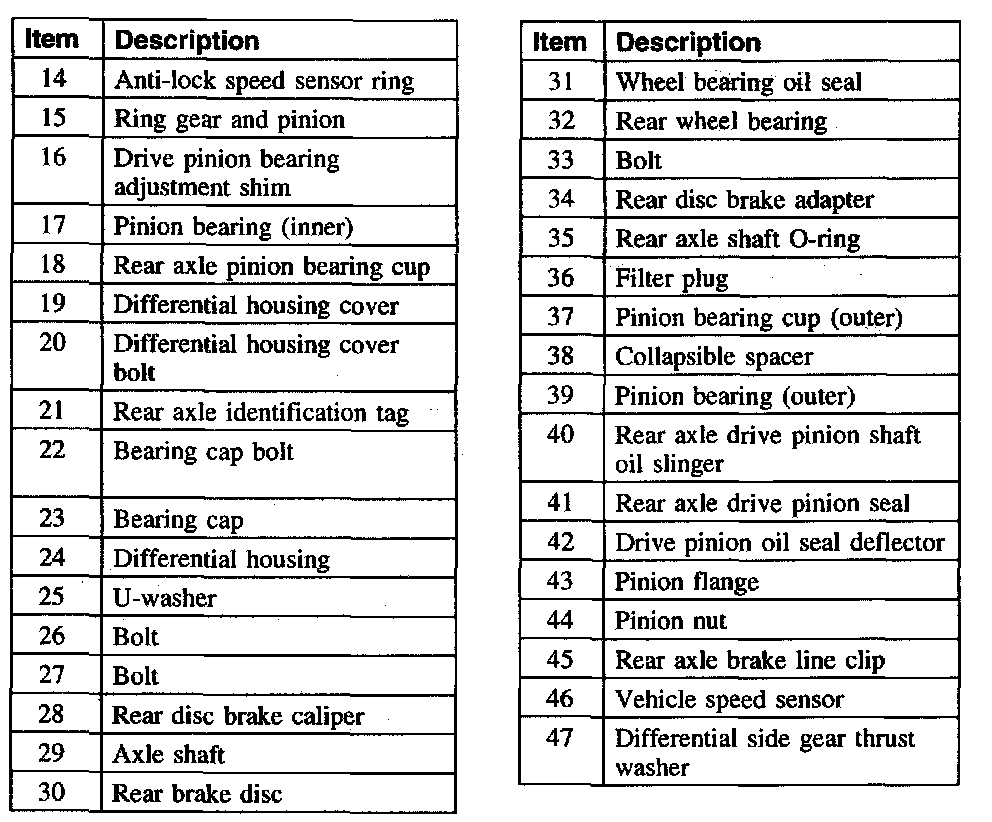

Part 2 of 4

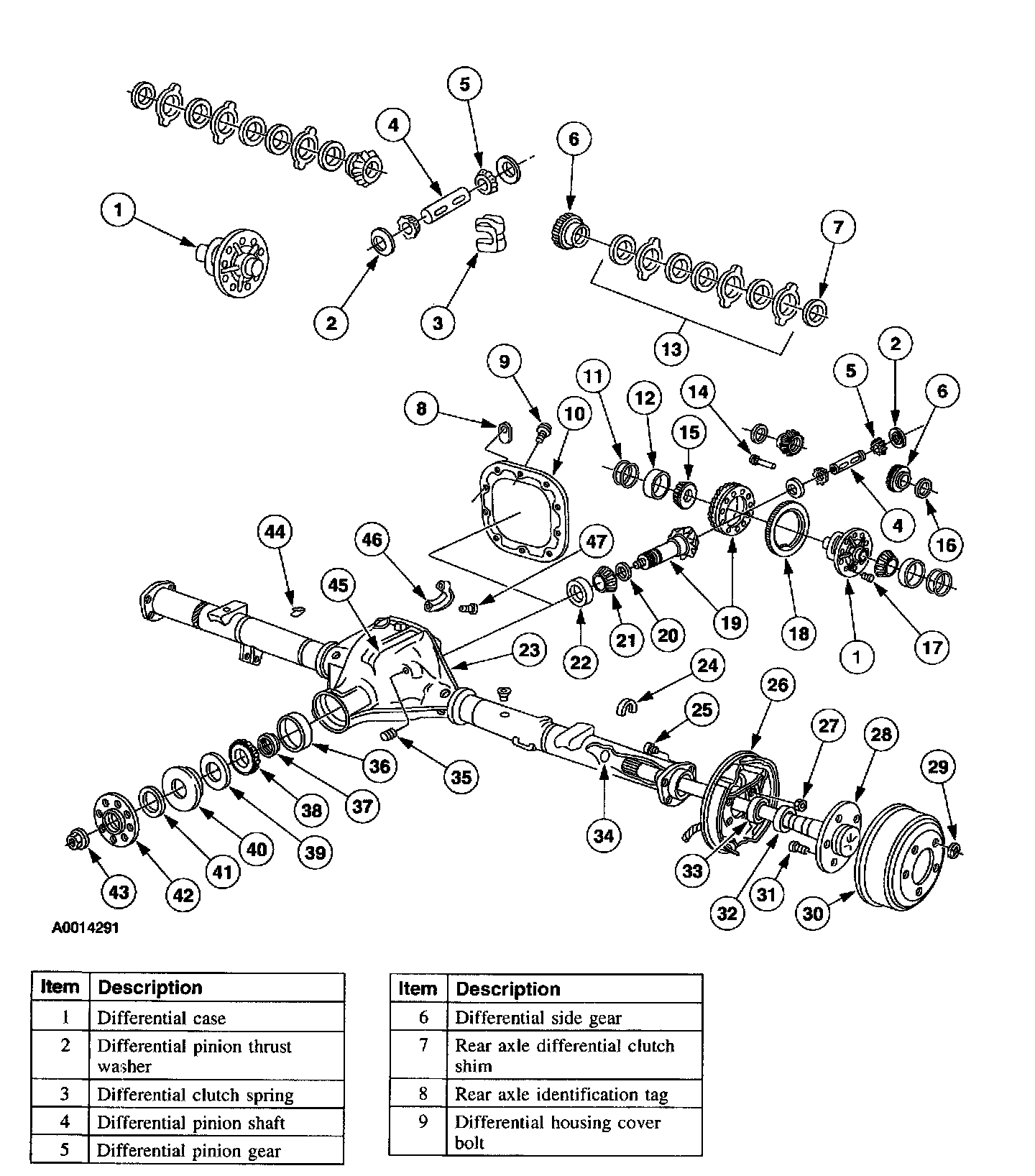

Part 3 of 4

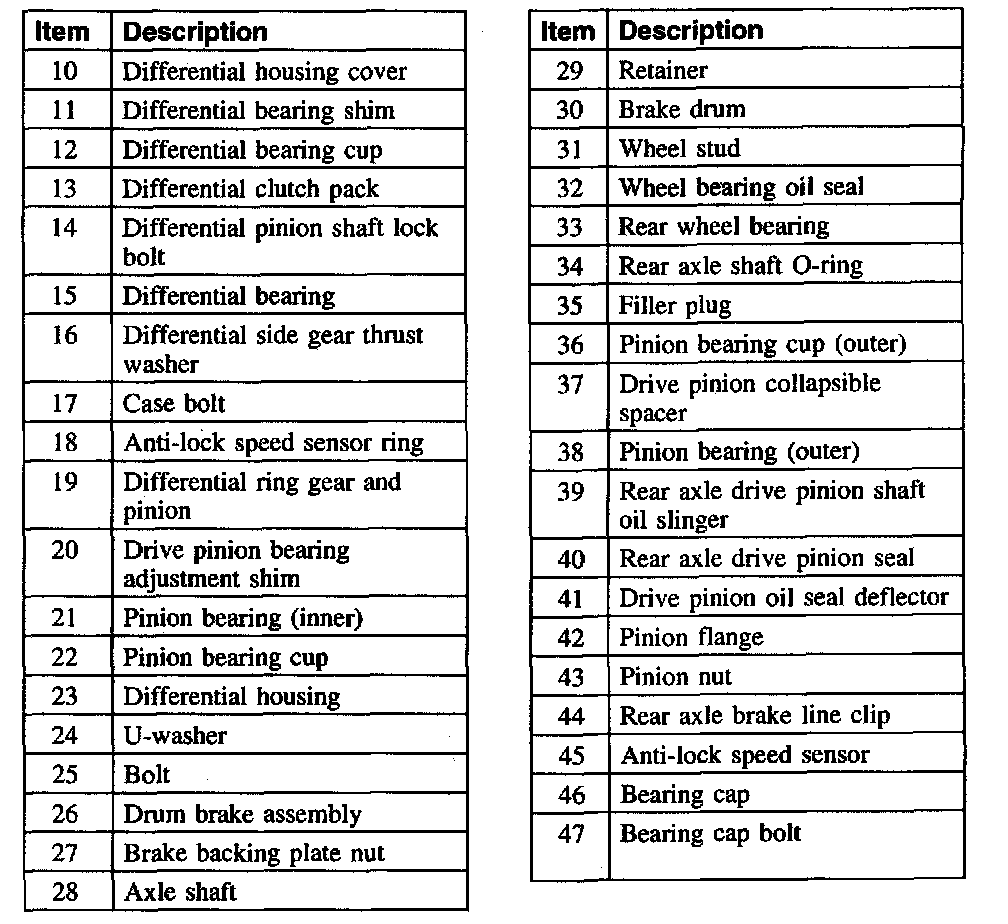

Part 4 of 4
